Capabilities
- HF or UHF multi-book processing
- Slim 53 mm enclosure
- Wall or bookshelf mounting
Back to RFID Tags & Devices

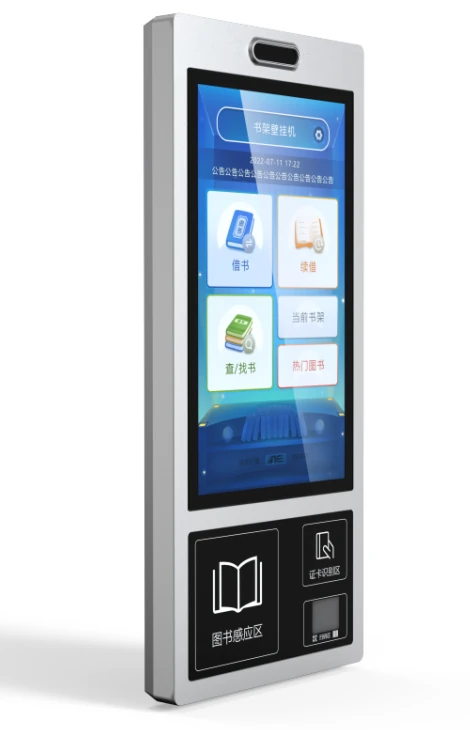

Wall-Mounted RFID Self-Service Kiosk
RSK602
Wall-Mounted RFID Self-Service Borrowing and Return Kiosk
A slim wall- or bookshelf-mounted RFID borrowing and return terminal for indoor library self-service locations.
Key parameters
Dimensions
797 x 348 x 53 mm
Specification Notes
- Reading figures are based on the source test setup using 10 mm books and prescribed tag placement.
- Operating system, authentication, reader-card zone and mobile networking are configuration-dependent.
- Verify the mounting structure before installation.
Technical Data
Technical specifications
Model parameters for product comparison and engineering review.
RFID & Book Handling
RFID options
HF ISO 15693-3 or UHF ISO 18000-6C / EPCglobal Gen 2
RF power
Adjustable
Multi-book reading
At least 5 books per operation
Borrow / return time
Under 1 second in the source test setup
Read accuracy
At least 99.9% in the source test setup
Display & Integration
Display
21.5-inch capacitive touchscreen
Operating system options
Windows, Android, HarmonyOS, Kylin or UOS
Authentication options
Face, identity card, barcode/QR or reader card
Camera
2 MP binocular camera
Network
Ethernet and Wi-Fi; 4G/5G optional
Reader-card zone
Optional ISO 15693 / ISO 14443A / ISO 14443B; 250 x 300 mm
External interfaces
DC input, power, Wi-Fi, 2 x USB and Ethernet
Mounting
Bookshelf or wall mounting
Physical, Power & Environment
Dimensions
797 x 348 x 53 mm
Package size
965 x 504 x 233 mm
Weight
Approx. 10 kg
Power adapter
12 V / 10 A; AC input 100-240 V
Power consumption
Approx. 60 W
Material
Cold-rolled steel, at least 1 mm; silver and black
Installation environment
Indoor
Operating temperature
-20°C to +60°C
Storage temperature
-30°C to +80°C
Storage humidity
10-98%, non-condensing
Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
Reference material: Product manual available for review.
