Capabilities
- Staff and patron operating modes
- HF or UHF multi-book reading
- Compact desktop installation
Back to RFID Tags & Devices

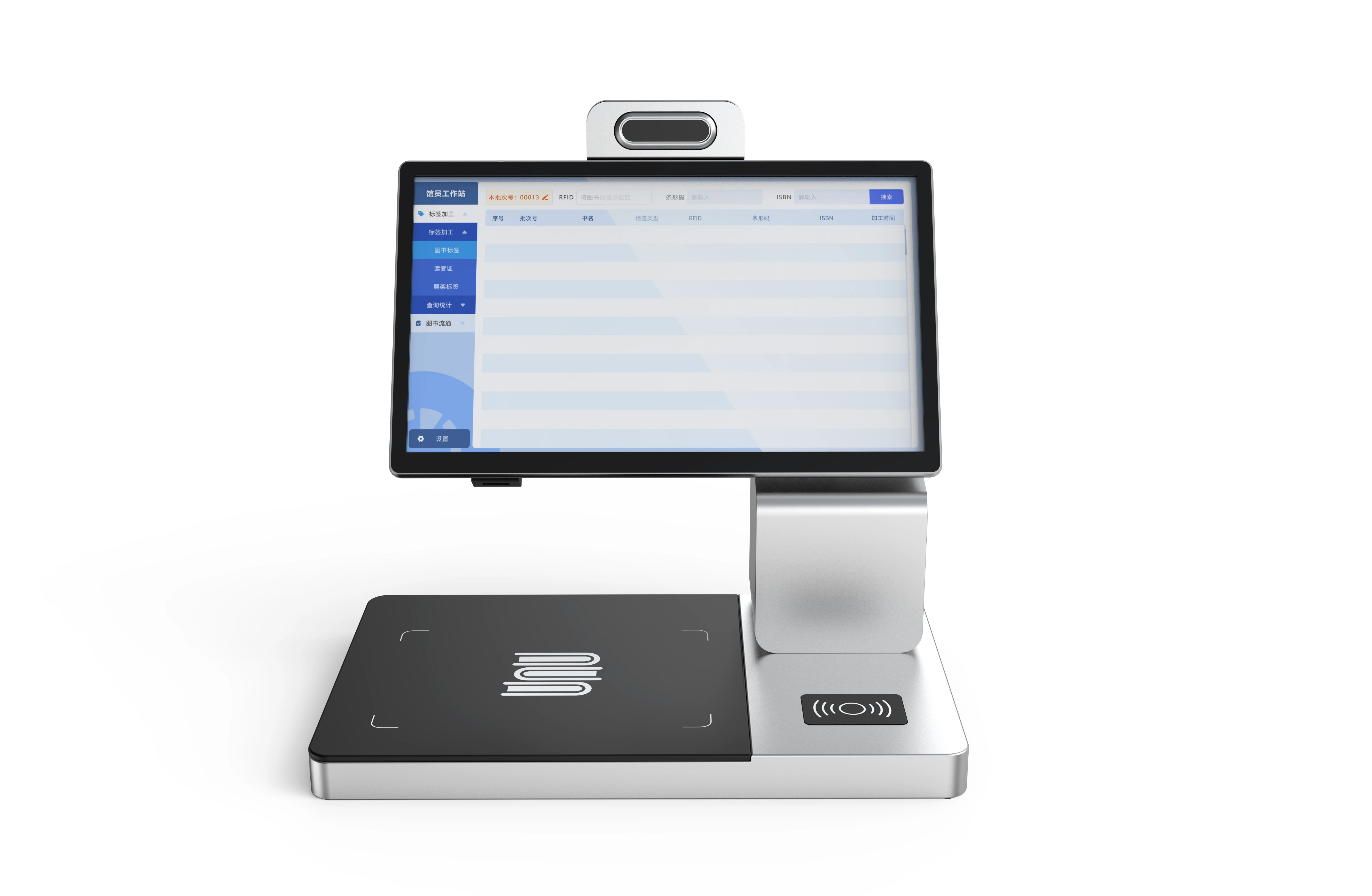

Desktop RFID Self-Service Kiosk
RSK203
Desktop RFID Borrowing, Return and Staff Workstation
A desktop RFID station for librarian processing or patron self-service, combining multi-book reading, a 21.5-inch touchscreen and configurable authentication.
Key parameters
Dimensions
560 x 536.6 x 350 mm
Specification Notes
- Reading figures are based on the source test setup using 10 mm books and prescribed tag placement.
- Operating system, authentication and mobile networking are configuration-dependent.
- Confirm available countertop space before ordering.
Technical Data
Technical specifications
Model parameters for product comparison and engineering review.
RFID & Book Handling
RFID options
HF ISO 15693-3 or UHF ISO 18000-6C / EPCglobal Gen 2
RF power
Adjustable
Multi-book reading
At least 10 books per operation
Borrow / return time
Under 1 second in the source test setup
Read accuracy
At least 99.9% in the source test setup
Application mode
Staff workstation or patron self-service
Display, Communication & Integration
Display
21.5-inch full-lamination 10-point capacitive touchscreen; 1920 x 1080
Operating system options
Windows, Android, HarmonyOS, Kylin or UOS
Authentication options
Face, barcode/QR, identity card or reader card
Network
Ethernet and Wi-Fi; 4G/5G optional
External interfaces
DC input, power button, 2 x USB, Ethernet and reserved 4G antenna interface
Camera
2 MP binocular camera
Physical, Power & Environment
Dimensions
560 x 536.6 x 350 mm
Package size
634 x 753 x 603 mm
Weight
Approx. 20 kg
Power consumption
Approx. 75 W
Material
Cold-rolled steel, at least 1.2 mm
Installation environment
Indoor desktop
Operating temperature
-20°C to +60°C
Storage temperature
-30°C to +80°C
Storage humidity
10-98%, non-condensing

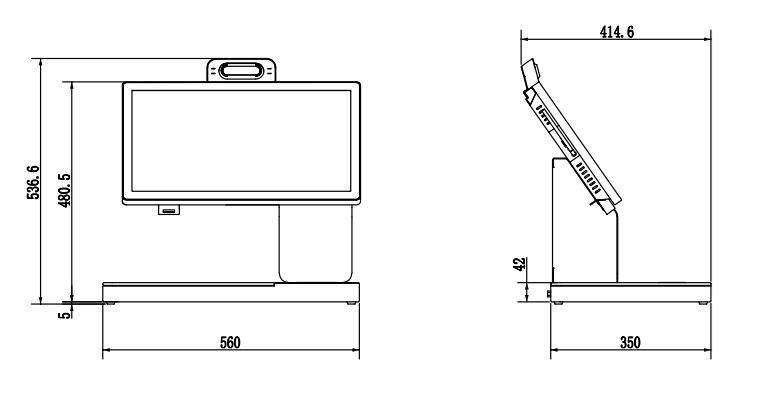

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
Reference material: Product manual available for review.
