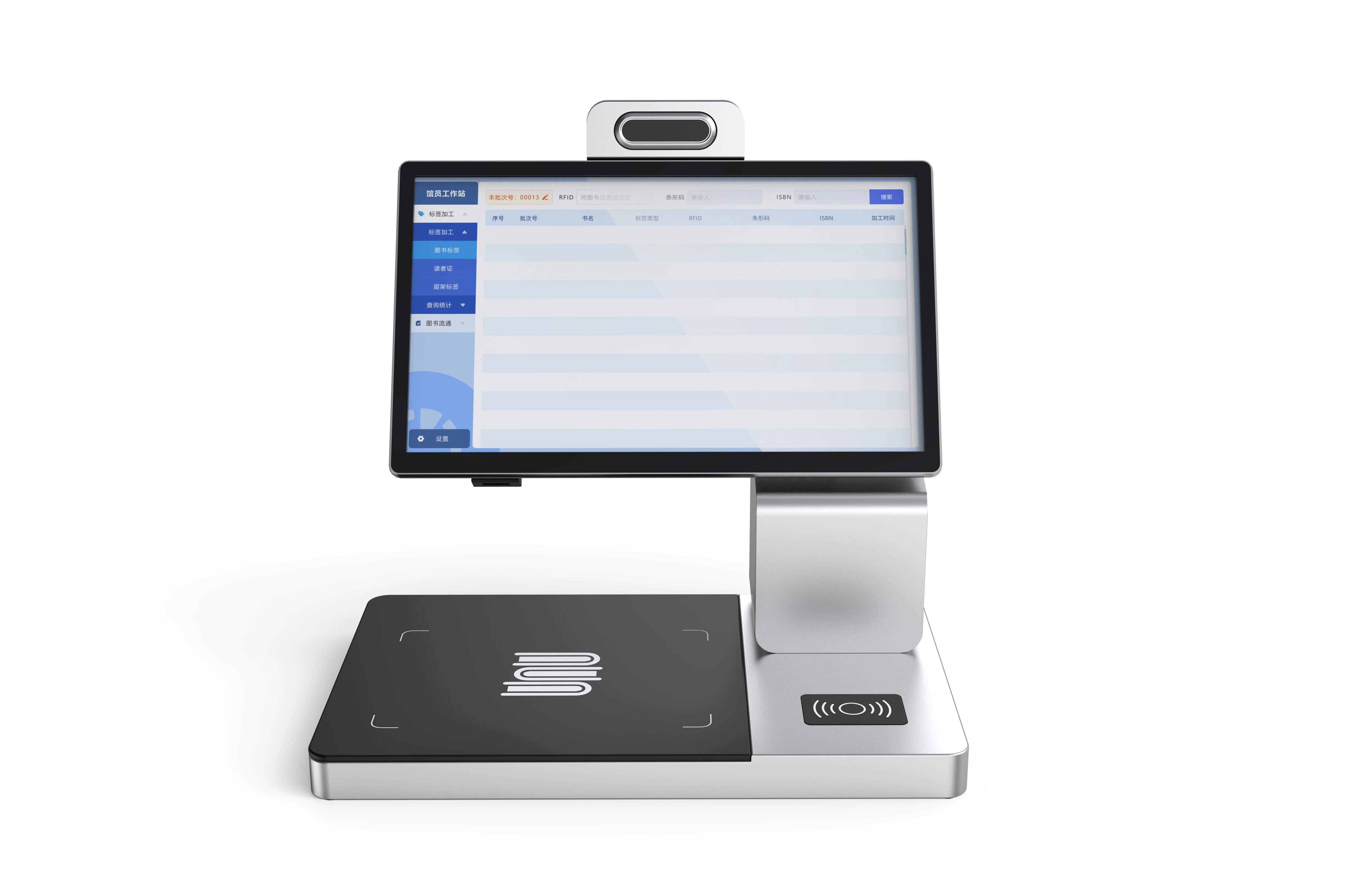

Desktop RFID Borrowing and Return Station
Supports librarian workstation use or patron self-service.
Supports HF ISO 15693-3 or UHF ISO 18000-6C / EPCglobal Gen 2.
Reads at least ten books per operation in the source test setup.
Integrates a 21.5-inch touch display and configurable authentication modules.
RSK203 Series
| RFID options | HF ISO 15693-3 or UHF ISO 18000-6C / EPCglobal Gen 2 |
|---|---|
| RF power | Adjustable |
| Multi-book reading | At least 10 books per operation |
| Borrow / return time | Under 1 second in the source test setup |
| Read accuracy | At least 99.9% in the source test setup |
| Application mode | Staff workstation or patron self-service |
| Display | 21.5-inch full-lamination ten-point capacitive touchscreen; 1920 x 1080 |
|---|---|
| Operating system options | Windows, Android, HarmonyOS, Kylin or UOS |
| Authentication options | Face, barcode/QR, identity card or reader card |
| Network | Ethernet and Wi-Fi; 4G/5G optional |
| External interfaces | DC input, power button, 2 x USB, Ethernet and reserved 4G antenna interface |
| Camera | 2 MP binocular camera |
| Dimensions | 560 x 536.6 x 350 mm |
|---|---|
| Package size | 634 x 753 x 603 mm |
| Weight | Approx. 20 kg |
| Power consumption | Approx. 75 W |
| Material | Cold-rolled steel, at least 1.2 mm |
| Installation environment | Indoor desktop |
| Operating temperature | -20°C to +60°C |
| Storage temperature | -30°C to +80°C |
| Storage humidity | 10-98%, non-condensing |

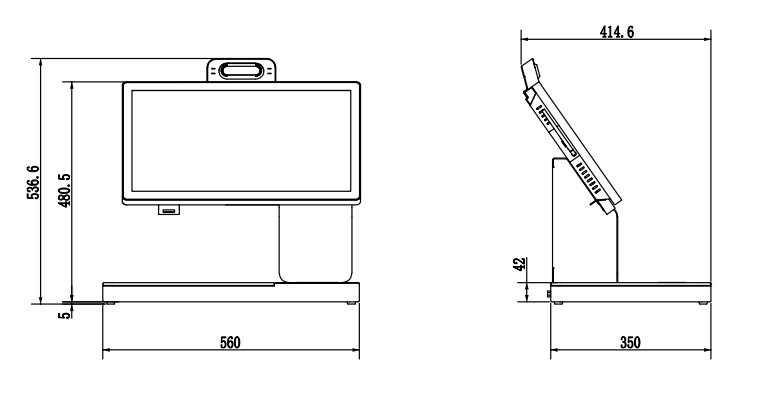

RSK203 Structure Size
