Capabilities
- HF or UHF multi-book processing
- Multiple reader-authentication options
- Accessible front-maintenance design
Back to RFID Tags & Devices
RFID Self-Service Kiosk
RSK100
Floor-Standing RFID Self-Service Borrowing and Return Kiosk
A floor-standing library self-service kiosk for RFID book borrowing and return, with a 23.6-inch touchscreen and configurable reader authentication.
Key parameters
Dimensions
1607.9 x 531.4 x 624.8 mm
Specification Notes
- Reading figures are based on the source test setup using 10 mm books and prescribed tag placement.
- Operating system, authentication, printer access and mobile networking are configuration-dependent.
- Confirm HF or UHF version before ordering.
Technical Data
Technical specifications
Model parameters for product comparison and engineering review.
RFID & Book Handling
RFID options
HF ISO 15693-3 or UHF ISO 18000-6C / EPCglobal Gen 2
RF power
Adjustable
Multi-book reading
At least 10 books per operation
Borrow / return time
Under 1 second in the source test setup
Read accuracy
At least 99.9% in the source test setup
Display, Communication & Integration
Display
23.6-inch 10-point capacitive touchscreen; 1920 x 1080
Operating system options
Windows, Android, HarmonyOS, Kylin or UOS
Authentication options
Face, barcode/QR, fingerprint, identity card or reader card
Network
Ethernet and Wi-Fi; 4G/5G optional
Printer
80 mm thermal receipt printer
Camera
2 MP binocular camera
Physical, Power & Environment
Dimensions
1607.9 x 531.4 x 624.8 mm
Package size
1805 x 735 x 645 mm
Weight
110 kg
Power consumption
110 W
Material
Cold-rolled steel, at least 1 mm
Installation environment
Indoor
Operating temperature
-20°C to +60°C
Storage temperature
-30°C to +80°C
Storage humidity
10-98%, non-condensing

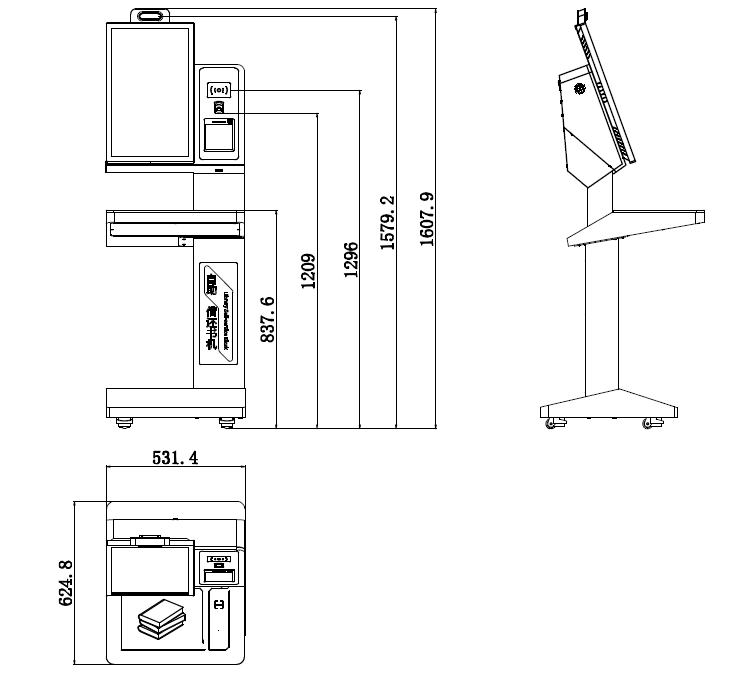

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
Reference material: Product manual available for review.
