Self-service RFID book borrowing and return with configurable reader authentication.
HF or UHF Configuration
Supports HF ISO 15693-3 or UHF ISO 18000-6C / EPCglobal Gen 2.
Multi-Book Processing
Reads at least ten books per operation in the source test setup.
23.6-inch Touch Display
Full-HD ten-point capacitive display with multiple operating-system options.
Configurable Authentication
Face, barcode/QR, fingerprint, identity-card and reader-card options.
RFID & Book Handling
| RFID options | HF ISO 15693-3 or UHF ISO 18000-6C / EPCglobal Gen 2 |
|---|
| RF power | Adjustable |
|---|
| Multi-book reading | At least 10 books per operation |
|---|
| Borrow / return time | Under 1 second in the source test setup |
|---|
| Read accuracy | At least 99.9% in the source test setup |
|---|
Display & Integration
| Display | 23.6-inch ten-point capacitive touchscreen; 1920 x 1080 |
|---|
| Operating system options | Windows, Android, HarmonyOS, Kylin or UOS |
|---|
| Authentication options | Face, barcode/QR, fingerprint, identity card or reader card |
|---|
| Network | Ethernet and Wi-Fi; 4G/5G optional |
|---|
| Printer | 80 mm thermal receipt printer |
|---|
| Camera | 2 MP binocular camera |
|---|
Physical, Power & Environment
| Dimensions | 1607.9 x 531.4 x 624.8 mm |
|---|
| Package size | 1805 x 735 x 645 mm |
|---|
| Weight | 110 kg |
|---|
| Power consumption | 110 W |
|---|
| Material | Cold-rolled steel, at least 1 mm |
|---|
| Installation environment | Indoor |
|---|
| Operating temperature | -20°C to +60°C |
|---|
| Storage temperature | -30°C to +80°C |
|---|
| Storage humidity | 10-98%, non-condensing |
|---|

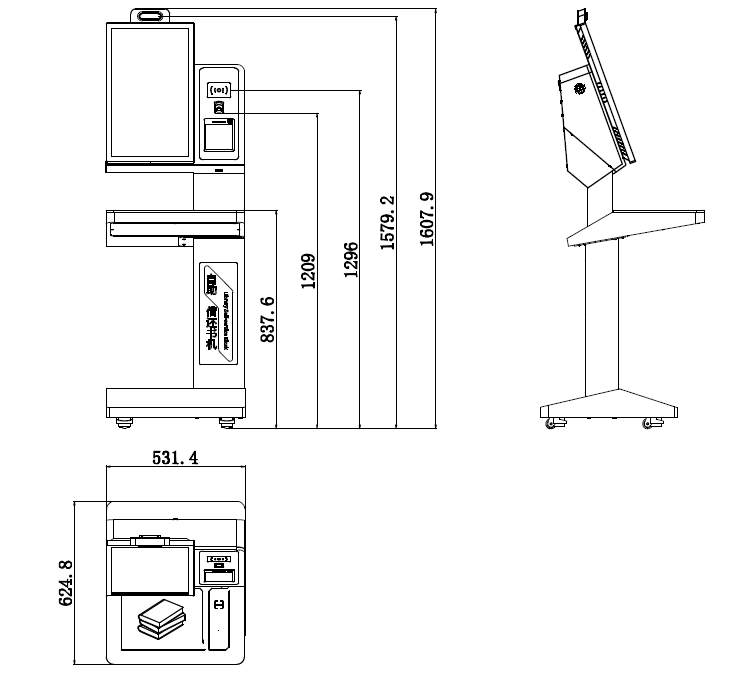

Mechanical Dimensions (mm)
