Capabilities
- HF or UHF multi-book processing
- Child-friendly floor-standing design
- Multiple authentication options
Back to RFID Tags & Devices

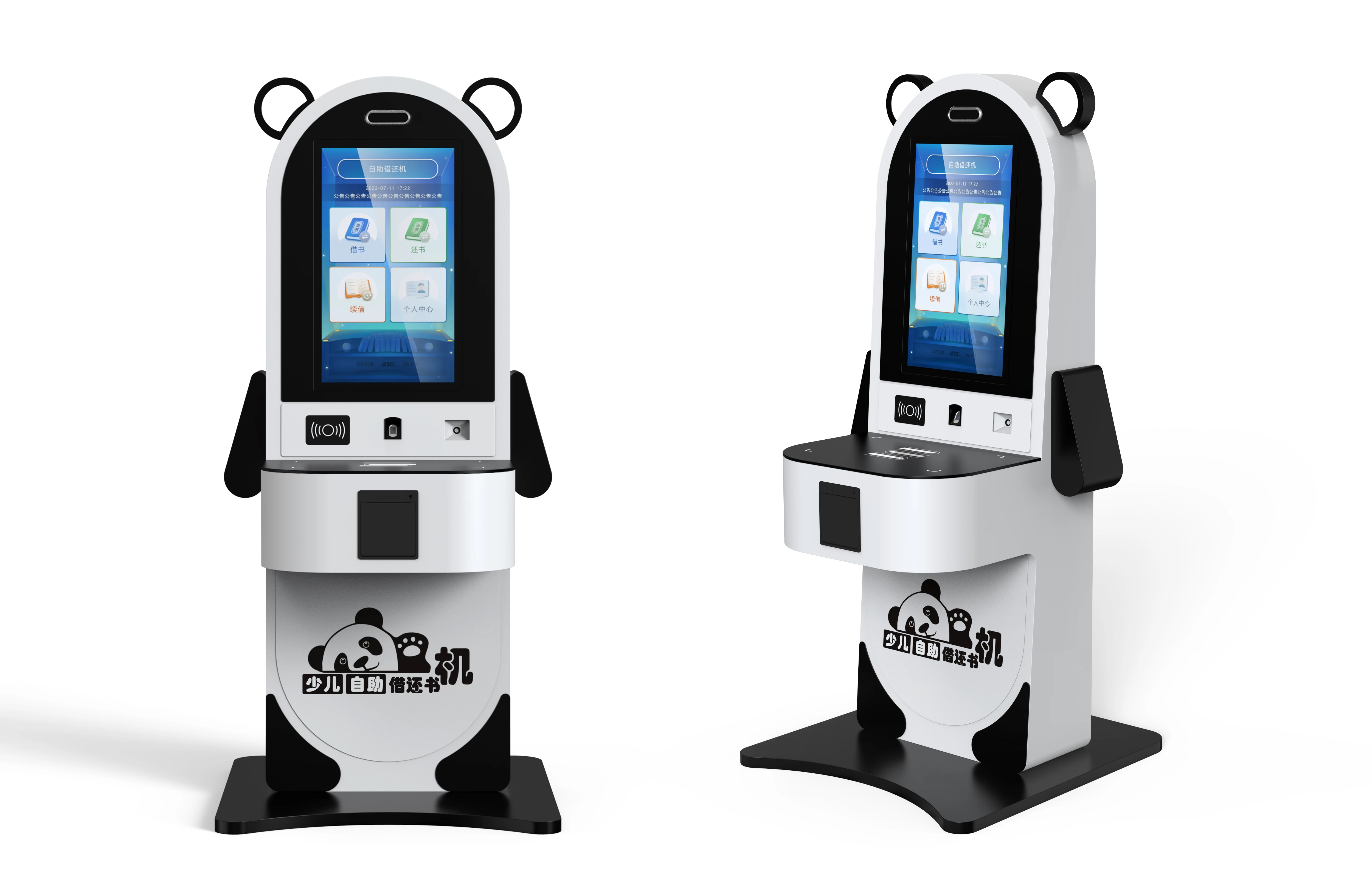

Children's RFID Self-Service Kiosk
RSK502
Children's RFID Self-Service Borrowing and Return Kiosk
A floor-standing RFID kiosk designed for children's library areas, with multi-book processing, a 21.5-inch touchscreen and configurable reader authentication.
Key parameters
Dimensions
1500 x 673 x 713 mm
Specification Notes
- Reading figures are based on the source test setup using 10 mm books and prescribed tag placement.
- Computer, operating system, authentication and mobile-network options are configuration-dependent.
- Confirm the HF or UHF version before ordering.
Technical Data
Technical specifications
Model parameters for product comparison and engineering review.
RFID & Book Handling
RFID options
HF ISO 15693 or UHF ISO 18000-6C / EPCglobal Gen 2
RF power
Adjustable
Multi-book reading
At least 10 books per operation
Borrow / return time
Under 1 second in the source test setup
Read accuracy
At least 99.9% in the source test setup
Display & Integration
Display
21.5-inch embedded capacitive touchscreen
Operating system options
Windows, Android, HarmonyOS, Kylin or UOS
Android option
RK3568, 4 GB RAM, 32 GB storage, dual-band Wi-Fi 6, Android 11
Windows option
Intel 8th generation or later, 8 GB RAM, 128 GB SSD, Windows 10
Authentication options
Face, identity card, barcode/QR, reader card or fingerprint
Camera
2 MP binocular camera
Network
Ethernet and Wi-Fi; 4G/5G optional
Printer
80 mm thermal receipt printer
Ambient lighting
RGB ambient light
Physical, Power & Environment
Dimensions
1500 x 673 x 713 mm
Package size
1655 x 855 x 790 mm
Weight
80 kg
Power consumption
105 W
Material
Cold-rolled steel, at least 1 mm; white and black
Installation environment
Indoor
Operating temperature
-20°C to +60°C
Storage temperature
-30°C to +80°C
Storage humidity
10-98%, non-condensing

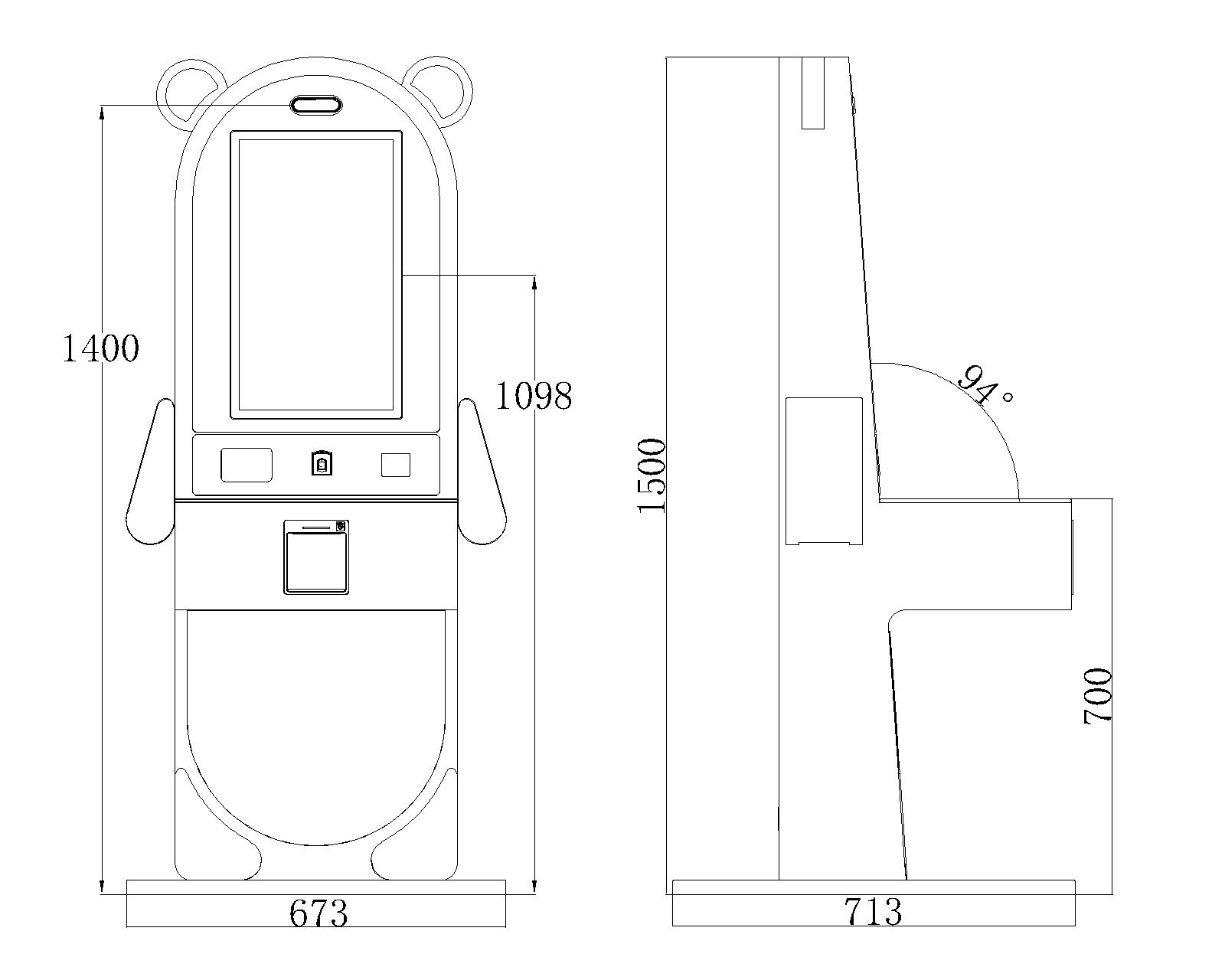

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
Reference material: Product manual available for review.
