Capabilities
- HF or UHF multi-book processing
- Embedded installation
- Multiple reader-authentication options
Back to RFID Tags & Devices

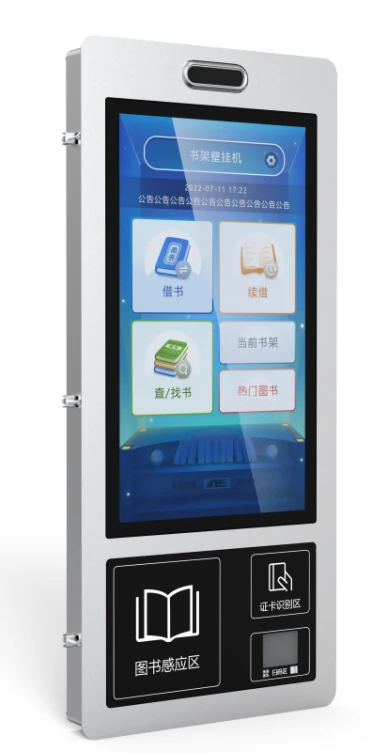

Embedded RFID Self-Service Kiosk
RSK603
Embedded RFID Self-Service Borrowing and Return Kiosk
A compact embedded RFID borrowing and return terminal designed for bookshelf integration and indoor self-service deployments.
Key parameters
Dimensions
817 x 368 x 58 mm
Specification Notes
- Reading figures are based on the source test setup using 10 mm books and prescribed tag placement.
- Operating system, authentication, reader-card zone and mobile networking are configuration-dependent.
- Confirm cabinet opening and mounting method before ordering.
Technical Data
Technical specifications
Model parameters for product comparison and engineering review.
RFID & Book Handling
RFID options
HF ISO 15693-3 or UHF ISO 18000-6C
RF power
Adjustable
Multi-book reading
At least 5 books per operation
Borrow / return time
Under 1 second in the source test setup
Read accuracy
At least 99.9% in the source test setup
Display & Integration
Display
21.5-inch capacitive touchscreen
Operating system options
Windows, Android, HarmonyOS, Kylin or UOS
Authentication options
Face, identity card, barcode/QR or reader card
Camera
2 MP binocular camera
Network
Ethernet and Wi-Fi; 4G/5G optional
Reader-card zone
Optional ISO 15693 / ISO 14443A / ISO 14443B; 250 x 300 mm
External interfaces
DC input, power button, Wi-Fi, 2 x USB and Ethernet
Mounting
Embedded or external bookshelf mounting
Physical, Power & Environment
Dimensions
817 x 368 x 58 mm
Package size
965 x 504 x 233 mm
Weight
Approx. 10 kg
Power adapter
12 V / 10 A; AC input 100-240 V
Power consumption
Approx. 60 W
Material
Cold-rolled steel; silver and black
Installation environment
Indoor
Operating temperature
-20°C to +60°C
Storage temperature
-30°C to +80°C
Storage humidity
10-98%, non-condensing
Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
Reference material: Product manual available for review.
