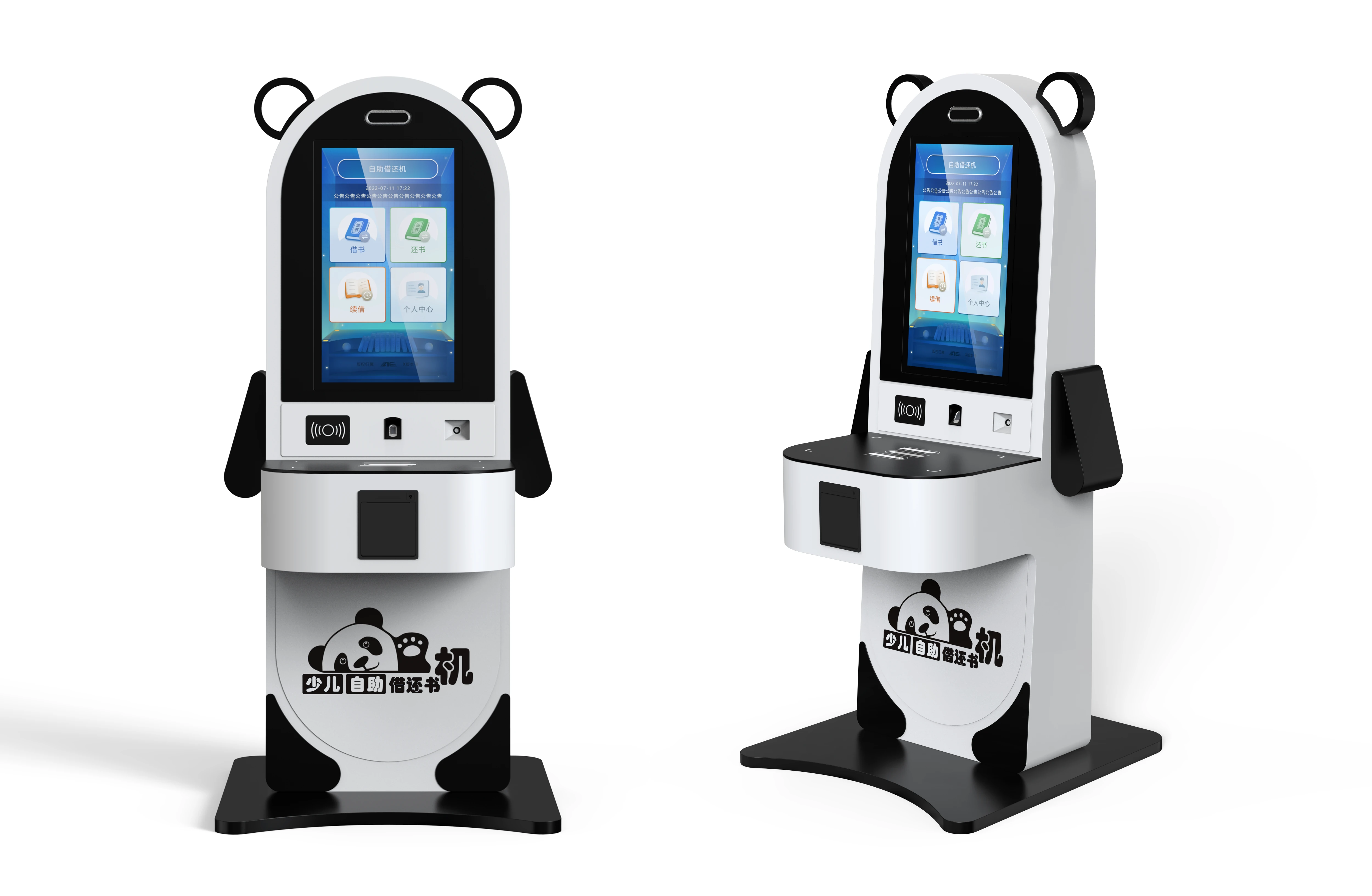

Children's RFID Self-Service Kiosk
Configurable for library RFID projects.
Reads at least 10 books per operation in the source test setup.
Integrated capacitive touchscreen for self-service workflows.
Multiple operating-system, authentication and network options.
RSK502 Series
| RFID options | HF ISO 15693 or UHF ISO 18000-6C / EPCglobal Gen 2 |
|---|---|
| RF power | Adjustable |
| Multi-book reading | HF ISO 15693 or UHF ISO 18000-6C / EPCglobal Gen 2 |
| Borrow / return time | Under 1 second in the source test setup |
| Read accuracy | At least 99.9% in the source test setup |
| Display | 21.5-inch embedded capacitive touchscreen |
|---|---|
| Operating system options | Windows, Android, HarmonyOS, Kylin or UOS |
| Android option | RK3568, 4 GB / 32 GB, dual-band Wi-Fi 6, Android 11 |
| Windows option | Intel 8th generation or later, 8 GB / 128 GB SSD, Windows 10 |
| Authentication options | Face, identity card, barcode/QR, reader card or fingerprint |
| Camera | 2 MP binocular camera |
| Network | Ethernet and Wi-Fi; 4G/5G optional |
| Printer | 80 mm thermal receipt printer |
| Ambient lighting | RGB ambient light |
| Dimensions | 1500 x 673 x 713 mm |
|---|---|
| Package size | 1655 x 855 x 790 mm |
| Weight | 80 kg |
| Power consumption | 105 W |
| Material | Cold-rolled steel, at least 1 mm; white and black |
| Installation environment | Indoor |
| Operating temperature | -20°C to +60°C |
| Storage temperature | -30°C to +80°C |
| Storage humidity | 10-98%, non-condensing |

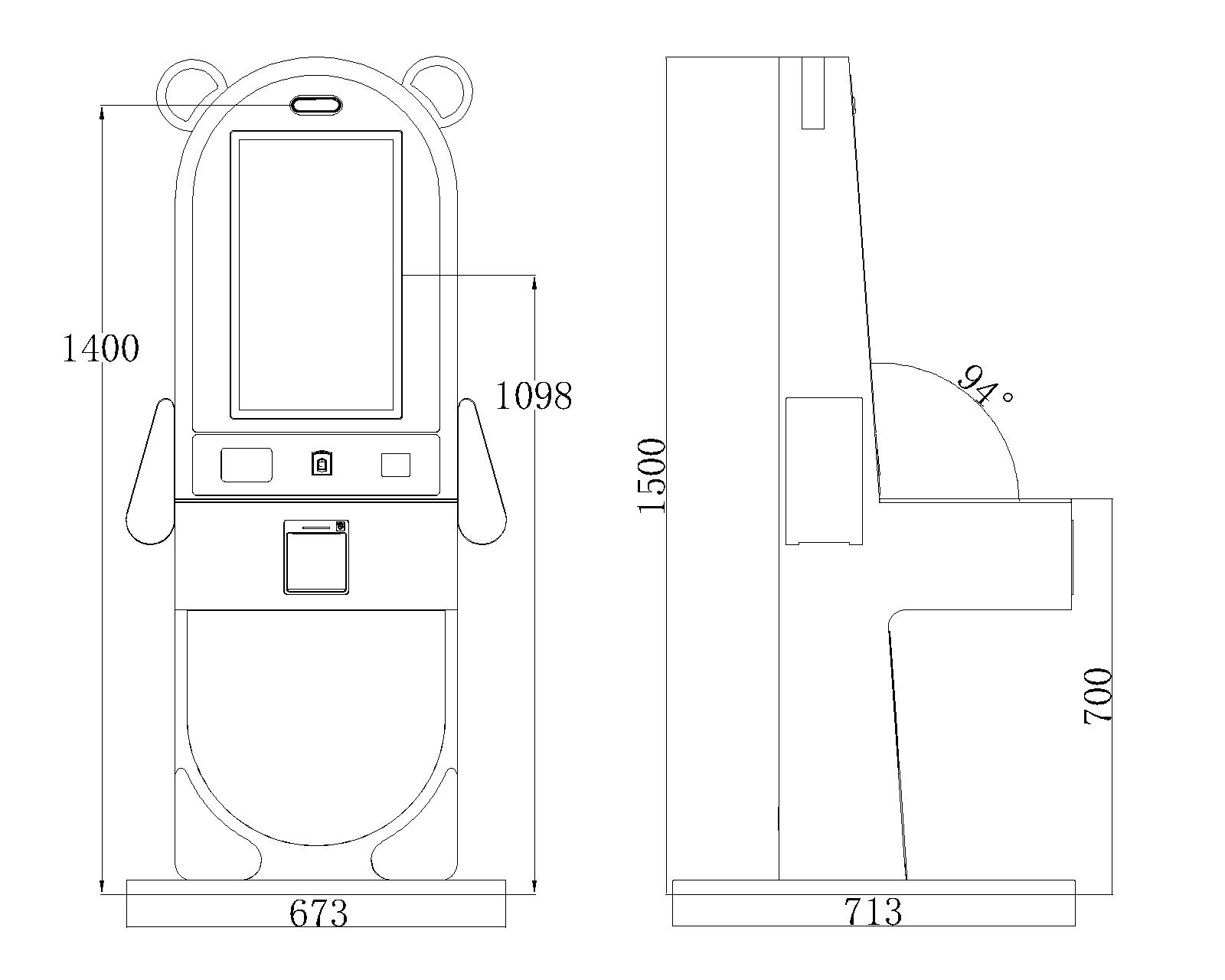

RSK502 Structure Size
