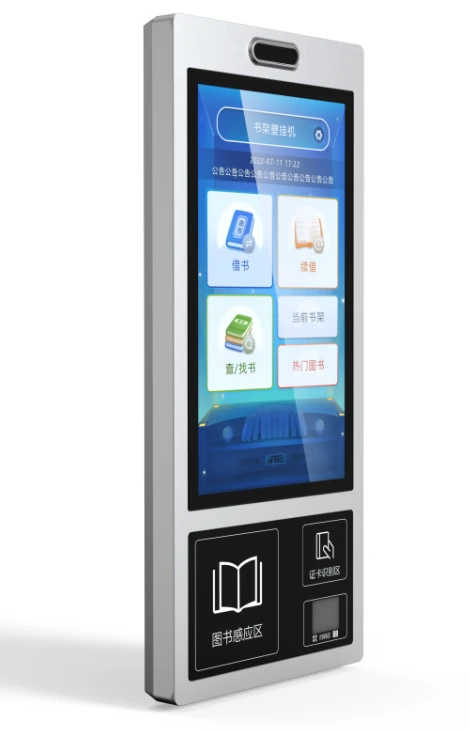

Wall-Mounted RFID Self-Service Kiosk
Configurable for library RFID projects.
Reads at least 5 books per operation in the source test setup.
Integrated capacitive touchscreen for self-service workflows.
Multiple operating-system, authentication and network options.
RSK602 Series
| RFID options | HF ISO 15693-3 or UHF ISO 18000-6C / EPCglobal Gen 2 |
|---|---|
| RF power | Adjustable |
| Multi-book reading | HF ISO 15693-3 or UHF ISO 18000-6C / EPCglobal Gen 2 |
| Borrow / return time | Under 1 second in the source test setup |
| Read accuracy | At least 99.9% in the source test setup |
| Display | 21.5-inch capacitive touchscreen |
|---|---|
| Operating system options | Windows, Android, HarmonyOS, Kylin or UOS |
| Authentication options | Face, identity card, barcode/QR or reader card |
| Camera | 2 MP binocular camera |
| Network | Ethernet and Wi-Fi; 4G/5G optional |
| Reader-card zone | Optional ISO 15693 / ISO 14443A / ISO 14443B; 250 x 300 mm |
| External interfaces | DC input, power, Wi-Fi, 2 x USB and Ethernet |
| Mounting | Bookshelf or wall mounting |
| Dimensions | 797 x 348 x 53 mm |
|---|---|
| Package size | 965 x 504 x 233 mm |
| Weight | Approx. 10 kg |
| Power adapter | 12 V / 10 A; AC input 100-240 V |
| Power consumption | Approx. 60 W |
| Material | Cold-rolled steel, at least 1 mm; silver and black |
| Installation environment | Indoor |
| Operating temperature | -20°C to +60°C |
| Storage temperature | -30°C to +80°C |
| Storage humidity | 10-98%, non-condensing |
RSK602 Structure Size
