Capabilities
- Three-dimensional UHF tag detection
- Multi-channel networking and localized alarm
- Traffic statistics and external-device linkage
Back to RFID Tags & Devices

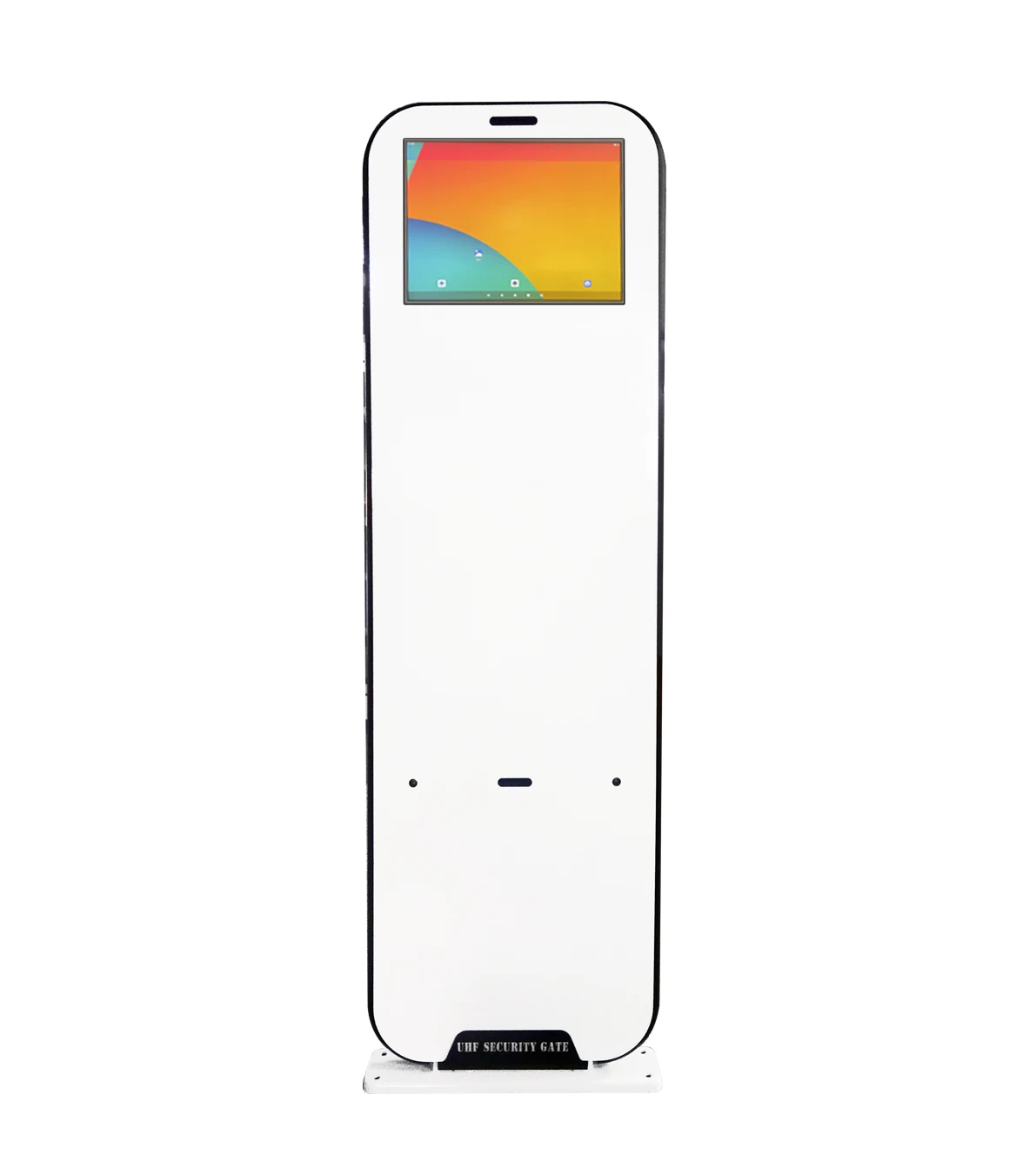

UHF RFID Security Gate
RSG618
UHF RFID Security Gate for Libraries and Controlled Exits
A multi-channel UHF RFID security gate for libraries, archives, smart retail and tool-management environments, with tag detection, sound-and-light alarms and passage statistics.
Key parameters
Dimensions
1511.5 x 469 x 108 mm
Specification Notes
- Passage width depends on RF power, tags and the installed environment.
- Display, operating system, Wi-Fi and voice announcement options must be confirmed by project.
- Final spectrum configuration must match the deployment region.
Technical Data
Technical specifications
Model parameters for product comparison and engineering review.
RFID & Detection
Supported standard
ISO 18000-6C; EPCglobal Gen 2
Spectrum options
European and United States spectrum configurations
RF power
1-30 dB, adjustable
Maximum passage width
220 cm, dependent on power and site conditions
Channel expansion
Up to 15 channels
Anti-theft modes
EPC, USER, EAS and PC-AFI
Maximum EPC length
496 bits
Communication, Alarm & Records
Host communication
Serial, Ethernet and Wi-Fi
Network protocol
TCP/IP; static IP or DHCP
Alarm modes
Autonomous alarm or mobile-borrowing alarm
Alarm indication
Sound and light; adjustable volume
Linkage outputs
4 relay outputs and 2 MOS outputs
Traffic sensing
Infrared direction recognition and people counting
Daily traffic records
At least 3,500
Entry/exit records
At least 40,000
Alarm records
At least 50,000
Display, Power & Environment
Standard display
10.1-inch
Optional displays
10.1-inch touch display or 17-inch display with Windows or Android
Power input
AC 100-240 V, 50-60 Hz
Power consumption
Controller gate approx. 9 W; main gate 11 W; auxiliary gate approx. 3 W
Weight
Controller/main gate approx. 26 kg; auxiliary gate approx. 25 kg
Installation environment
Indoor
Operating temperature
-20°C to +70°C
Storage temperature
-30°C to +80°C
Storage humidity
10-98%, non-condensing
Dimensions
1511.5 x 469 x 108 mm
Base dimensions
469 x 108 x 17 mm

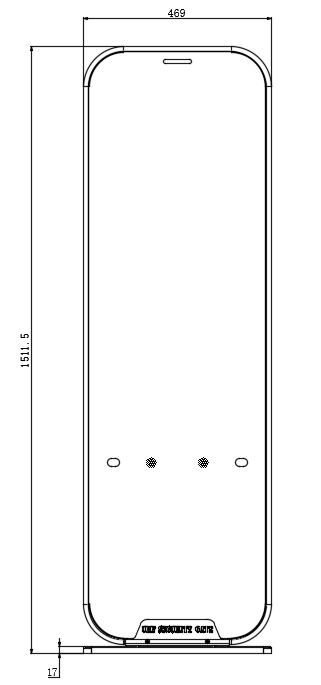

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
Reference material: Product manual available for review.
