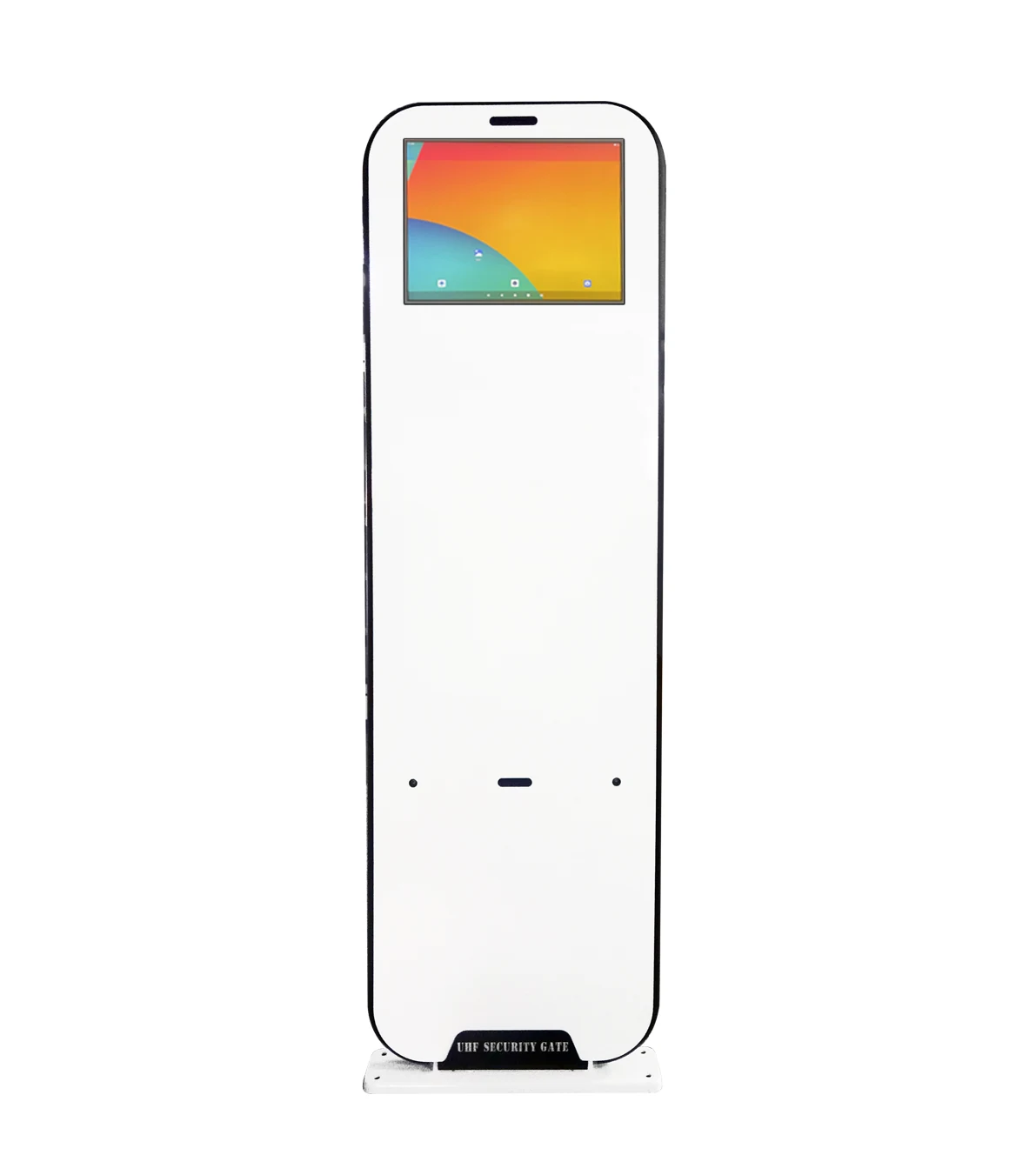

Multi-channel UHF RFID security detection for libraries and controlled exits.
UHF Security Detection
ISO 18000-6C and EPCglobal Gen 2 tag detection with multiple anti-theft data modes.
Multi-Channel Deployment
Supports automatic main and auxiliary gate networking and expansion up to 15 channels.
Alarm and Traffic Records
Sound-and-light alarms, infrared direction sensing and persistent traffic and alarm records.
Display and Integration
10.1-inch standard display, optional computing displays and external-device linkage outputs.
RFID & Detection
| Supported standard | ISO 18000-6C; EPCglobal Gen 2 |
|---|
| Spectrum options | European and United States configurations |
|---|
| RF power | 1-30 dB, adjustable |
|---|
| Maximum passage width | 220 cm, dependent on power and site conditions |
|---|
| Channel expansion | Up to 15 channels |
|---|
| Anti-theft modes | EPC, USER, EAS and PC-AFI |
|---|
| Maximum EPC length | 496 bits |
|---|
Communication, Alarm & Records
| Communication | Serial, Ethernet and Wi-Fi |
|---|
| Network | TCP/IP; static IP or DHCP |
|---|
| Alarm | Sound and light; adjustable volume |
|---|
| Linkage outputs | 4 relay outputs and 2 MOS outputs |
|---|
| Daily traffic records | At least 3,500 |
|---|
| Entry/exit records | At least 40,000 |
|---|
| Alarm records | At least 50,000 |
|---|
Physical & Environment
| Power input | AC 100-240 V, 50-60 Hz |
|---|
| Power consumption | Controller approx. 9 W; main 11 W; auxiliary approx. 3 W |
|---|
| Weight | Controller/main approx. 26 kg; auxiliary approx. 25 kg |
|---|
| Operating temperature | -20°C to +70°C |
|---|
| Storage temperature | -30°C to +80°C |
|---|
| Storage humidity | 10-98%, non-condensing |
|---|
| Dimensions | 1511.5 x 469 x 108 mm |
|---|
| Base dimensions | 469 x 108 x 17 mm |
|---|

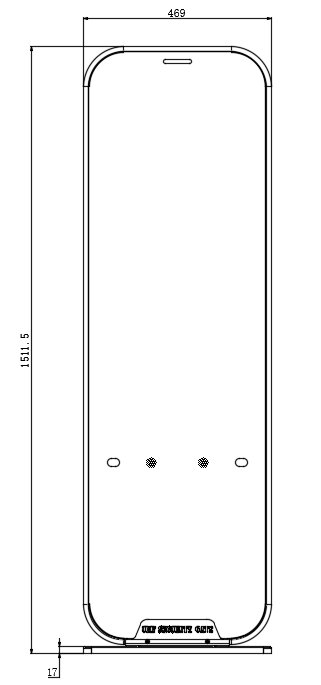

Mechanical Dimensions (mm)
