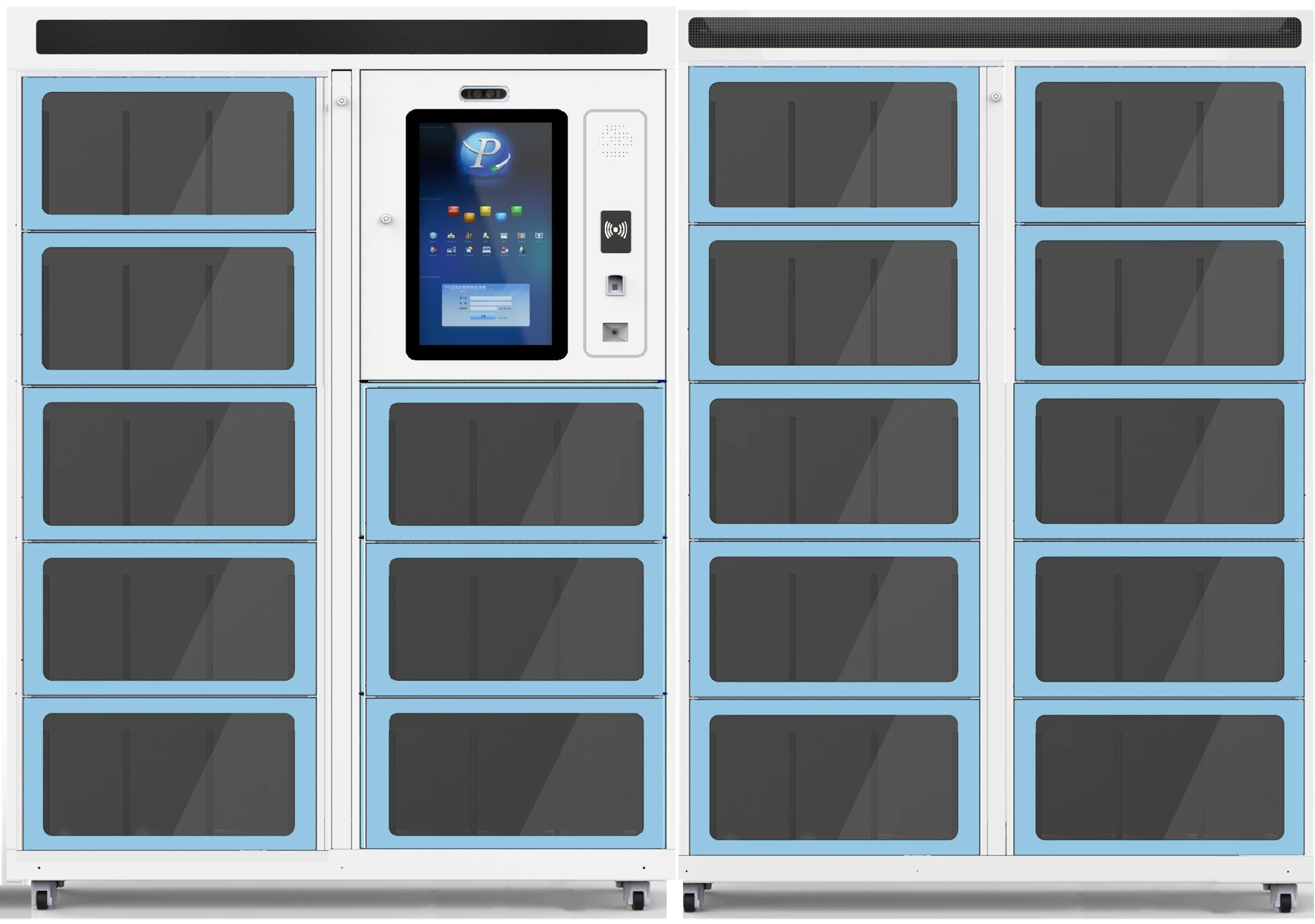

Library RFID Smart Book Cabinet
An indoor, unattended smart book cabinet for 24-hour library services, available in HF or UHF configurations and designed for borrowing, return, renewal, inquiry, compartment management, and service analytics.
Key parameters
Communication interface
Serial, USB, Ethernet; wired or Wi-Fi network; optional 4G/5G
Dimensions
Main and auxiliary cabinet: 1330 × 450 × 1948 mm each
Technical Data
Model parameters for product comparison and engineering review.
RFID configuration
HF ISO 15693-3 or UHF ISO 18000-6C
Antenna arrangement
Four-antenna combination per shelf level
Read accuracy
≥99.9%
Compartment crosstalk
≤0.1%
Borrow / return time
<3 s; supports multiple books
Book location
Compartment-level localization with individual door management
Reader protection
Overtemperature, overcurrent, and short-circuit protection
Cabinet configuration
Five shelf levels; one main cabinet expandable with at least four auxiliary cabinets
Capacity
Main cabinet approx. 240–280 books; auxiliary cabinet approx. 300–350 books
Display
21.5-inch capacitive touchscreen
Operating system options
Windows, Android, or domestic operating system
Communication interface
Serial, USB, Ethernet; wired or Wi-Fi network; optional 4G/5G
Authentication options
Multiple optional reader authentication methods
Firmware
Interface-based firmware update
Dimensions
Main and auxiliary cabinet: 1330 × 450 × 1948 mm each
Weight
Main cabinet 220 kg; auxiliary cabinet 200 kg
Power consumption
Main cabinet 120 W; auxiliary cabinet 60 W
Power supply
AC 110–230 V, 50 Hz
Material
Cold-rolled steel, thickness ≥1 mm
Installation
Indoor, floor-standing
Operating temperature
−20°C to +60°C
Storage temperature
−30°C to +80°C
Storage humidity
10–98%, non-condensing

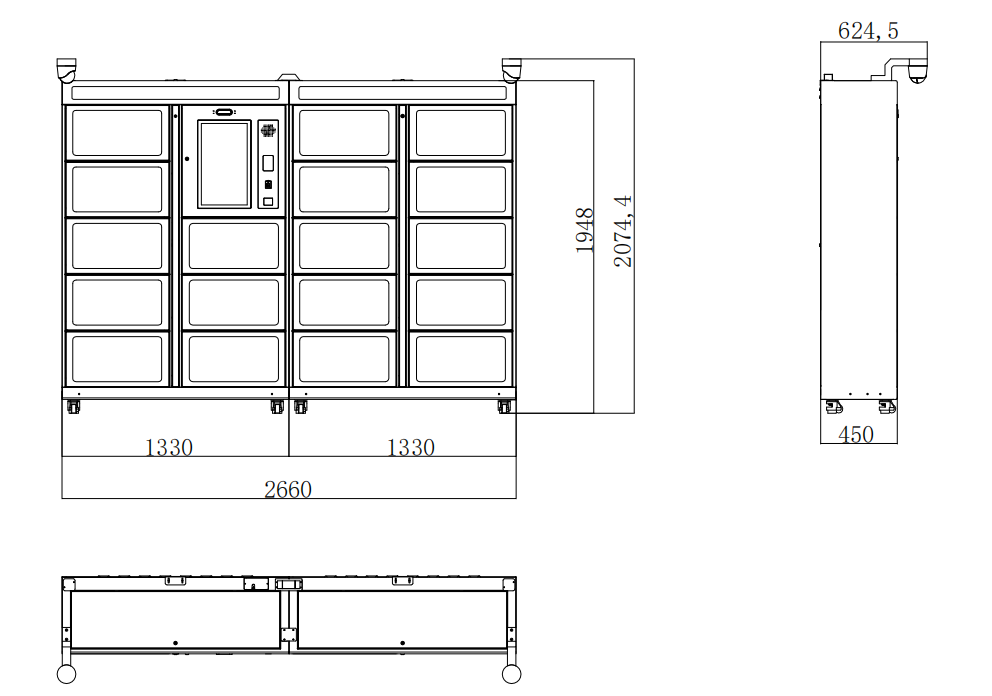

Mechanical Dimensions
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
Reference material: Product manual available for review.
