Capabilities
- Recognizes tagged-item entry and exit direction
- Uses dynamic multi-beam sector scanning with radar triggering
- Supports passage counting, whitelist control, and multicolor sound-and-light alarms
Back to RFID Tags & Devices
Overhead UHF RFID Access System
RX-IPA300
Overhead Phased-Array RFID Access System for Retail
An overhead UHF RFID system for jewelry and apparel retail, combining tagged-item movement detection, entry/exit direction recognition, passage counting, and configurable sound-and-light alarms.
Key parameters
Working frequency
902–928 MHz
Supported standards
EPCglobal Gen 1/2; ISO 18000-6C
Communication interface
Ethernet; Wi-Fi optional
Dimensions
700 × 400 × 66 mm, excluding mounting bracket
Specification Notes
- Identification performance must be verified with the final tag, merchandise material, mounting height, and store layout.
- The stated effective area is a source reference; surrounding metal, reflections, tag orientation, and traffic patterns can change results.
- Wi-Fi is optional. Confirm network, alarm, whitelist, and host-system integration requirements before ordering.
Technical Data
Technical specifications
Model parameters for product comparison and engineering review.
RFID & Detection
Working frequency
902–928 MHz
Supported standards
EPCglobal Gen 1/2; ISO 18000-6C
RF power
1–33 dBm, adjustable
Reading speed
Up to 700 tags/s
Polarization
Circularly polarized phased-array antenna
Coverage
140° main axis; 90° secondary axis; up to 30 m² effective identification area
Trigger area
±3 m on Y axis; ±3 m on X axis
Whitelist capacity
100,000 tags
System & Installation
Communication interface
Ethernet; Wi-Fi optional
Direction recognition
Single-axis entry/exit direction recognition
Trigger method
Radar trigger
Beam scan time
60 ms
Antenna gain
13 dBi
Installation
Standard suspended ceiling installation
Installation height
2.5–3 m
Multi-device linkage
Supported for wider passages
Firmware
Remote firmware upgrade and configuration
Power, Physical & Environment
Power supply
AC 100–240 V, 50/60 Hz
Power consumption
≤35 W
Dimensions
700 × 400 × 66 mm, excluding mounting bracket
Weight
Approx. 8 kg
Operating temperature
−20°C to +50°C
Storage temperature
−30°C to +60°C
Relative humidity
Up to 95%, non-condensing

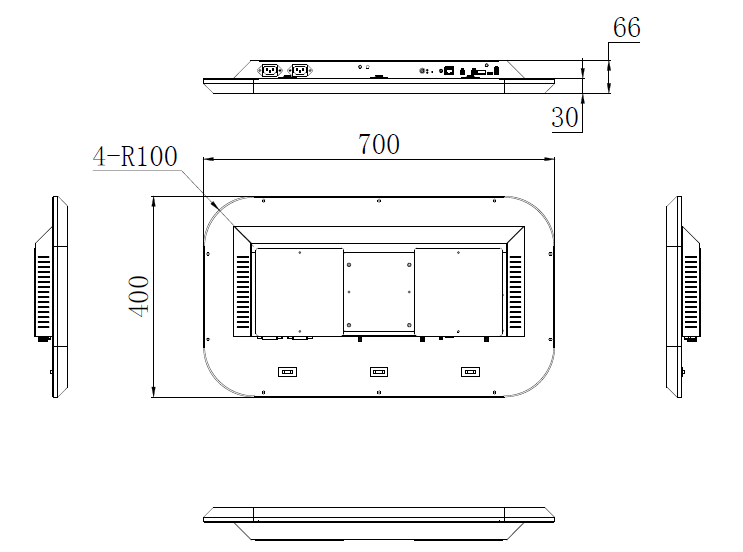

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
Reference material: Product manual available for review.
