Laundry RFID Tag

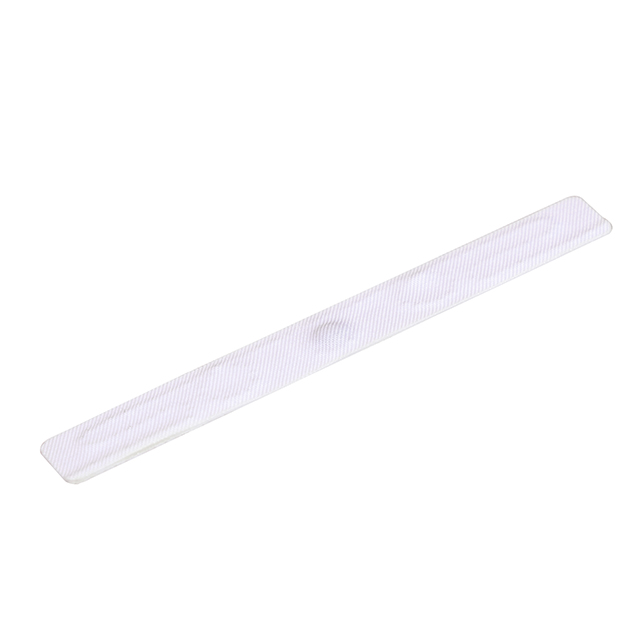

RXD7010 RFID Laundry Tag
Laundry RFID Tag Series
Durable RFID tag for reliable item-level identification
Key parameters
Product model
RXD7010
Product category
Laundry RFID Tag Series
RFID protocol
EPC Class 1 Gen 2, ISO 18000-6C
Frequency
(US) 902-928 MHz,(EU) 865-868 MHz
Chip
NXP Ucode9 / Ucode8
Memory
EPC 96bits, User 0bits, TID 96bits
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
Application Ready
Built for the deployment surface and environment described in the source specification.
Durable Operation
Designed for long data retention and repeated read/write operation.
Compact Integration
Clear dimensions and installation options for practical product integration.
Solution Fit
Connect this model to the right operating scene
A product page should not be a dead end. These links help buyers move from a model into the industry workflow where the device is normally evaluated.
Industrial manufacturing
Production-line traceability, equipment checkpoints, embedded machines, and harsh-site data capture.
View solutionWarehousing & distribution
Receiving, dispatch, reusable containers, cage carts, handheld exception checks, and WMS events.
View solutionOil & gas assets
Metal assets, inspection workflows, field terminals, fixed read zones, and harsh-environment review.
View solutionProject Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Validate reader, antenna, read distance, material surface, mounting method, and operating region before confirming this tag.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify the operating workflow: stocktake, transfer, receiving, dispatch, inspection, custody, search, reporting, or exception handling.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
Technical Specifications
Product model
RXD7010
Product category
Laundry RFID Tag Series
RFID protocol
EPC Class 1 Gen 2, ISO 18000-6C
Frequency
(US) 902-928 MHz,(EU) 865-868 MHz
Chip
NXP Ucode9 / Ucode8
Memory
EPC 96bits, User 0bits, TID 96bits
Write endurance
100,000 cycles
Function
Read / write
Data retention
20 years
Applications
industrial laundry、uniform management、medical garment management、military uniform management
Read range
0 to 10 m - (US) 902-928 MHz, metal surface
Warranty
1 years
Service life
at least 200 washing cycles
Dimensions
70x10 mm
Thickness
1.5 mm
Material
textile
Color
White
Installation
sewn-in installation
Weight
0.7 g
Ingress protection
IP65
Storage temperature
-40 C to + 85 C
Operating temperature
washing:90 C(194°F), 15 minutes, 200 cycles
Certifications
RoHS
