Technical Specifications
Product model

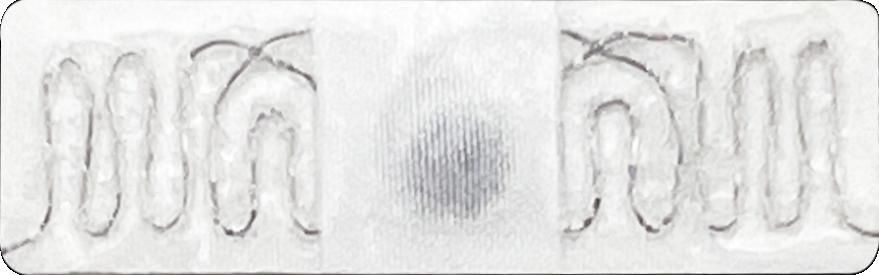

RXD3611
Product category
Laundry RFID Tag Series
RFID protocol
EPC Class 1 Gen 2, ISO 18000-6C
Frequency
(US) 902-928 MHz,(EU) 865-868 MHz
Chip
Impinj R6P
Memory
EPC 96bits, User 0bits, TID 96bits
Write endurance
100,000 cycles
Function
Read / write
Data retention
20 years
Applications
industrial laundry, uniform management, medical garment management, institutional uniform management
Read range
0 to 5 m - (US) 902-928 MHz, metal surface
Warranty
1 years
Service life
at least 200 washing cycles
Dimensions
36x11 mm
Thickness
1.5 mm
Material
textile
Color
White
Installation
sewn-in installation
Weight
0.6 g
Ingress protection
IP65
Storage temperature
-40 C to + 85 C
Operating temperature
washing:90 C (194°F), 15 minutes, 200 cycles
Certifications
RoHS
