Technical Specifications

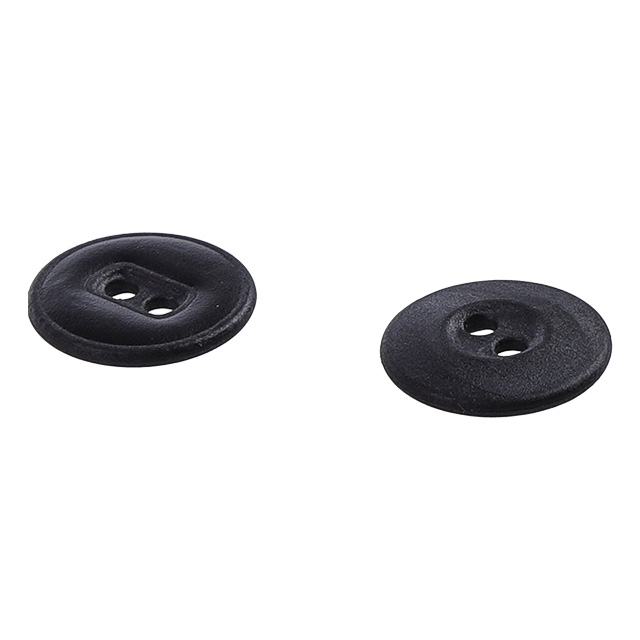

Product model
RXD1818
Product category
Laundry RFID Tag Series
RFID protocol
EPC Class 1 Gen 2, ISO 18000-6C
Frequency
(US) 902-928 MHz,(EU) 865-868 MHz
Chip
NXP Ucode7M
Memory
EPC 128bits, User 0bits, TID 96bits
Write endurance
100,000 cycles
Function
Read / write
Data retention
20 years
Applications
industrial laundry, uniform management, medical garment management, institutional uniform management
Read range
0 to 2 m - (US) 902-928 MHz, metal surface
Warranty
1 years
Service life
at least 200 washing cycles
Dimensions
diameter18 mm
Thickness
2.8 mm
Material
PPShigh-temperature resistant material
Color
Black
Installation
sewn-in installation
Weight
2 g
Ingress protection
IP65
Storage temperature
-40 C to + 120 C
Operating temperature
-25 C to + 110 C
Certifications
RoHS
