Technical Specifications
Product model

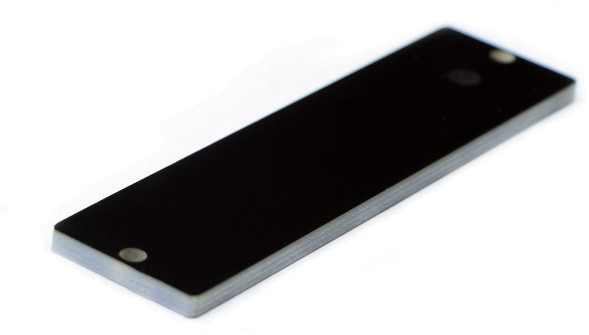

RX9525
Product category
UHF anti-metal RFID tag
Series
Everest Series
Frequency
(US) 902-928 MHz
Chip
Alien Higgs-3, Impinj Monza 4QT
Memory
EPC 96bits (expandable to bits) , User 512bits, TID64bits
Write endurance
100,000times
Function
Read / write
Data retention
50 years
Applicable surface
Metal surface
RFID protocol
EPC Class 1 Gen 2, ISO 18000-6C
Read range
Frequency: (US) 902-928 MHz
Read range
up to 6 m, - (US) 902-928 MHz, Metal surface
Dimensions
95x25 mm, (hole: diameter 3.5 mm)
Thickness
3.5 mm
Material
FR4 (PCB)
Color
Black (optional red, blue, green, white)
Installation
Adhesive backing or screws
Weight
18.0 g
Ingress protection
IP68
Storage temperature
-40 C to +150 C
Operating temperature
-40 C to +100 C
Certifications
REACH , RoHS , CE
