Technical Specifications
Product model

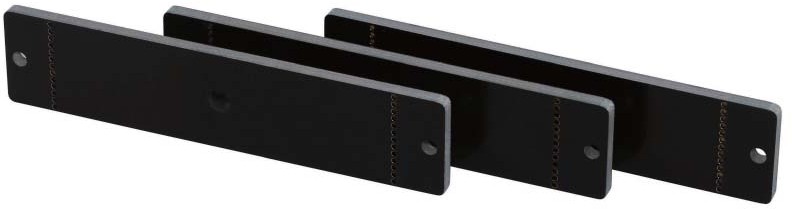

RX9020
Product category
UHF anti-metal RFID tag
Series
Everest Series
RFID protocol
EPC Class1 Gen2, ISO18000-6C
Frequency
(US) 902-928 MHz, (EU) 865-868 MHz
Chip
Alien Higgs-3
Memory
EPC 96bits (expandable to480bits) , User512bits, TID64bits
Write endurance
100,000 cycles
Function
Read / write
Data retention
50 years
Applicable surface
Metal surface
Read range
Frequency: (US) 902-928 MHz, (EU) 865-868 MHz
Read range
up to 10.8 m, (US) 902-928 MHz, Metal surfaceup to 10.5 m, (EU) 865-868 MHz, Metal surfaceup to 6.5 m, (US) 902-928 MHz, Metal surfaceup to 6.3 m, (EU) 865-868 MHz, Metal surface
Dimensions
90x20 mm, (hole: diameter 3 mm)
Thickness
3.0 mm (excluding chip bump), 3.7 mm (including chip bump)
Material
FR4 (PCB)
Color
Black (optional red, blue, green, white)
Installation
Adhesive backing or screws
Weight
12.0 g
Ingress protection
IP68
Storage temperature
-40 Cto+150 C
Operating temperature
-40 Cto+100 C
Certifications
REACH, RoHS , CE
