Technical Specifications
Product model

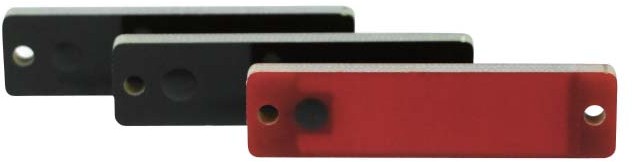

RX5213
Product category
UHF anti-metal RFID tag
Series
Everest Series
RFID protocol
EPC Class1 Gen2, ISO18000-6C
Frequency
(US) 902-928 MHz, (EU) 865-868 MHz
Chip
Impinj Monza 4QT
Memory
EPC 128bits , User 512bits, TID64bits
Write endurance
100,000 cycles
Function
Read / write
Data retention
50 years
Applicable surface
Metal surface
Read range
Frequency: (US) 902-928 MHz, (EU) 865-868 MHz
Read range
8.0 m, (US) 902-928 MHz, Metal surface
Read range
8.2 m, (EU) 865-868 MHz, Metal surface
Read range
4.9 m, (US) 902-928 MHz, Metal surface
Read range
5.1 m, (EU) 865-868 MHz, Metal surface
Dimensions
52x13 mm, (hole: diameter 3 mm)
Thickness
3.5 mm
Material
FR4 (PCB)
Color
Black (optional red, blue, green, white)
Installation
Adhesive backing or screws
Weight
5.5 g
Ingress protection
IP68
Storage temperature
-40 C to +150 C
Operating temperature
-40 C to +100 C
Certifications
REACH, RoHS , CE
