Technical Specifications
Product model

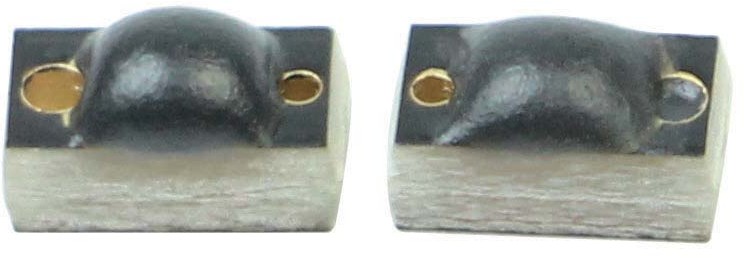

RX0603
Product category
UHF anti-metal RFID tag
Series
Atom Series
RFID protocol
EPC Class1 Gen2, ISO18000-6C
Frequency
(US) 902-928 MHz, (EU) 865-868 MHz
Chip
Alien Higgs-3
Memory
EPC 96bits (expandable to480bits) , User512bits, TID64bits
Write endurance
100,000 cycles
Function
Read / write
Data retention
50 years
Applicable surface
Metal surface
Warranty
1 years
Read range
Frequency: (US) 902-928 MHz, (EU) 865-868 MHz
Read range
0.85 m, (US) 902-928 MHz, Metal surface
Read range
0.80 m, (EU) 865-868 MHz, Metal surface
Read range
0.50 m, (US) 902-928 MHz, Metal surface
Read range
0.45 m, (EU) 865-868 MHz, Metal surface
Dimensions
6x3 mm
Thickness
2.0 mm (excluding chip bump), 3.0 mm (including chip bump)
Material
FR4 (PCB)
Color
Black (optional red, blue, green, white)
Installation
Adhesive backing
Weight
0.2 g
Ingress protection
IP68
Storage temperature
-40 C to +150 C
Operating temperature
-40 C to +100 C
Certifications
REACH, RoHS , CE
