Technical Specifications
Product model

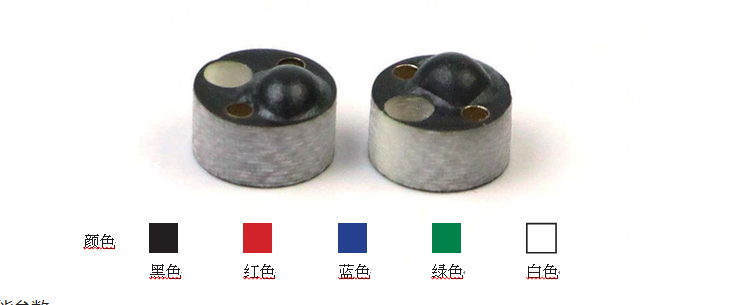

RX-D6
Product category
UHF anti-metal RFID tag
Series
Anti-Metal Tag Series
RFID protocol
EPC Class1 Gen2, ISO18000-6C
Frequency
(US) 902-928 MHz, (EU) 865-868 MHz
Chip
Alien Higgs-3
Memory
EPC 96bits (expandable to 480bits) , User512bits, TID64bits
Write endurance
100,000 cycles
Function
Read / write
Data retention
50 years
Applicable surface
Metal surface
Read range
Frequency: (US) 902-928 MHz, (EU) 865-868 MHz
Read range
0.85 m, (US) 902-928 MHz, Metal surface
Read range
0.75 m, (EU) 865-868 MHz, Metal surface
Read range
0.45 m, (US) 902-928 MHz, Metal surface
Read range
0.45 m, (EU) 865-868 MHz, Metal surface
Dimensions
diameter 6 mm, (hole: diameter 2 mmx1)
Thickness
4.0 mm (including chip bump)
Material
FR4 (PCB)
Color
Black (optional red, blue, green, white) Installation:
Weight
0.5
Ingress protection
IP68
Storage temperature
-40 C to +150 C
Operating temperature
-40 C to +100 C
Certifications
REACH, RoHS , CE
