Technical Specifications
Product model

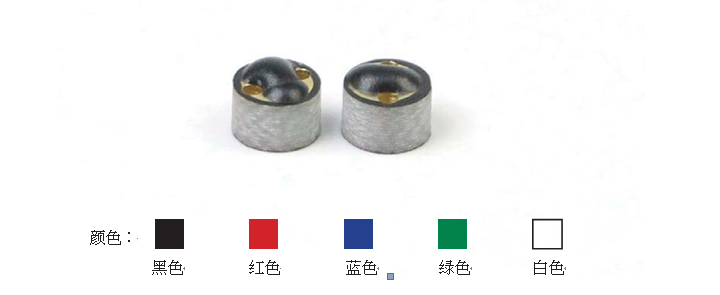

RX-D5
Product category
UHF anti-metal RFID tag
Series
Anti-Metal Tag Series
RFID protocol
EPC Class1 Gen2, ISO18000-6C
Frequency
(US) 902-928 MHz, (EU) 865-868 MHz
Chip
Alien Higgs-3
Memory
EPC 96bits (expandable to480bits) , User 512bits, TID64bits
Write endurance
100,000 cycles
Function
Read / write
Data retention
50 years
Applicable surface
Metal surface
Read range
Frequency: (US) 902-928 MHz, (EU) 865-868 MHz
Read range
1.0 m, (US) 902-928 MHz, Metal surface
Read range
0.9 m, (EU) 865-868 MHz, Metal surface
Read range
0.6 m, (US) 902-928 MHz, Metal surface
Read range
0.55 m , (EU) 865-868 MHz, Metal surface
Dimensions
diameter 5 mm
Thickness
4.0 mm (including chip bump)
Material
FR4 (PCB)
Color
Black (optional red, blue, green, white)
Installation
Weight: 0.5 g
Ingress protection
IP68
Storage temperature
-40 Cto+150 C
Operating temperature
-40 Cto+100 C
Certifications
REACH, RoHS , CE
