Technical Specifications
Product model
RX-D10
Product category
UHF anti-metal RFID tag
Series
Atom Series
RFID protocol
EPC Class1 Gen2, ISO18000-6C
Frequency
(US) 902-928 MHz, (EU) 865-868 MHz
Chip
Alien Higgs-3
Memory
EPC 96bits (expandable to480bits) , User 512bits, TID64bits
Write endurance
100,000 cycles
Function
Read / write
Data retention
50 years
Applicable surface
Metal surface
Read range
Frequency: (US) 902-928 MHz, (EU) 865-868 MHz
Read range
1.5 m, (US) 902-928 MHz, Metal surface
Read range
1.3 m, (EU) 865-868 MHz, Metal surface
Read range
1.0 m, (US) 902-928 MHz, Metal surface
Read range
0.95 m, (EU) 865-868 MHz, Metal surface
Dimensions
diameter 10 mm, (hole: diameter 2 mm)
Thickness
3.0 mm (excluding chip bump), 3.7 mm (including chip bump)
Material
FR4 (PCB)

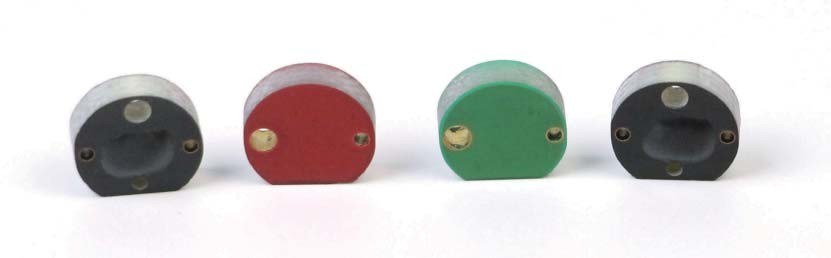

Color
Black (optional red, blue, green, white)
Installation
Adhesive backing or screws
Weight
0.5 g
Ingress protection
IP68
Storage temperature
-40 C to +150 C
Operating temperature
-40 C to +100 C
Certifications
REACH, RoHS , CE
