Fast Anti-collision Engine
Capable of reading up to 70 tags per second, ideal for high-density inventory like libraries and pharmacies.
Back to RFID Tags & Devices
Handheld Terminal
RX-1001U

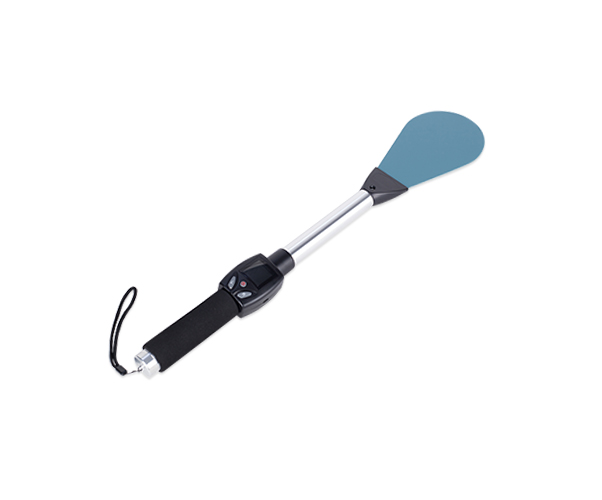

Ultra-High Frequency UHF RFID Handheld Reader
High-Performance Long-Range Scanning for Smart Libraries & Archives
Key parameters
Operating Frequency
902 ~ 928 MHz
Protocol Standards
ISO 18000-6C / EPC Gen2
RF Power Output
1 dBm ~ 27 dBm (Software Adjustable)
Reading Range
Up to 6 Meters (Subject to tag/environment)
Anti-collision
Up to 70 tags/second
Display
1.44-inch 65K Color TFT LCD
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
Ergonomic Long-Reach Design
The 570mm extended handle allows operators to scan labels on high shelves without physical strain.
Real-time Data Interaction
Integrated 1.44" color LCD displays scan counts instantly, supported by Wi-Fi/Bluetooth cloud sync.
High Performance Security
Built-in temperature detection ensures safe operation during long-duration intensive tasks.
Solution Fit
Connect this model to the right operating scene
A product page should not be a dead end. These links help buyers move from a model into the industry workflow where the device is normally evaluated.
Industrial manufacturing
Production-line traceability, equipment checkpoints, embedded machines, and harsh-site data capture.
View solutionWarehousing & distribution
Receiving, dispatch, reusable containers, cage carts, handheld exception checks, and WMS events.
View solutionOil & gas assets
Metal assets, inspection workflows, field terminals, fixed read zones, and harsh-environment review.
View solutionProject Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Pair the reader or terminal with suitable tags, antennas, enclosure, operator workflow, and installation constraints.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify the operating workflow: stocktake, transfer, receiving, dispatch, inspection, custody, search, reporting, or exception handling.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
RFID Performance
Operating Frequency
902 ~ 928 MHz
Protocol Standards
ISO 18000-6C / EPC Gen2
RF Power Output
1 dBm ~ 27 dBm (Software Adjustable)
Reading Range
Up to 6 Meters (Subject to tag/environment)
Anti-collision
Up to 70 tags/second
Hardware & Connectivity
Display
1.44-inch 65K Color TFT LCD
Communication
Wi-Fi, Bluetooth (BR/EDR), Micro USB 2.0
User Interface
3 Multi-function Keys, Beeper, Red LED
Operating Modes
Host Mode, Scan Mode, Anti-theft, Find Mode, Find Mode
Physical & Electrical
Dimensions
570 * 113 * 41 mm
Weight
335g
Power Supply
3.7V / 3350mAH Swappable Li-ion Battery
Endurance
> 3 Hours of continuous scanning
Power Consumption
< 5W
Related Models
Compare nearby models before shortlisting
Most industrial and public-service buyers evaluate a small family of devices rather than a single model. These related pages come from the same cleaned manual library.
For inquiry
Confirm fit before quoting
Target tags or items
Read distance and environment
Software or middleware connection
Pilot quantity and rollout plan
