RWT220 / RWT220FG

Product model

RWT220 / RWT220FG

Product name

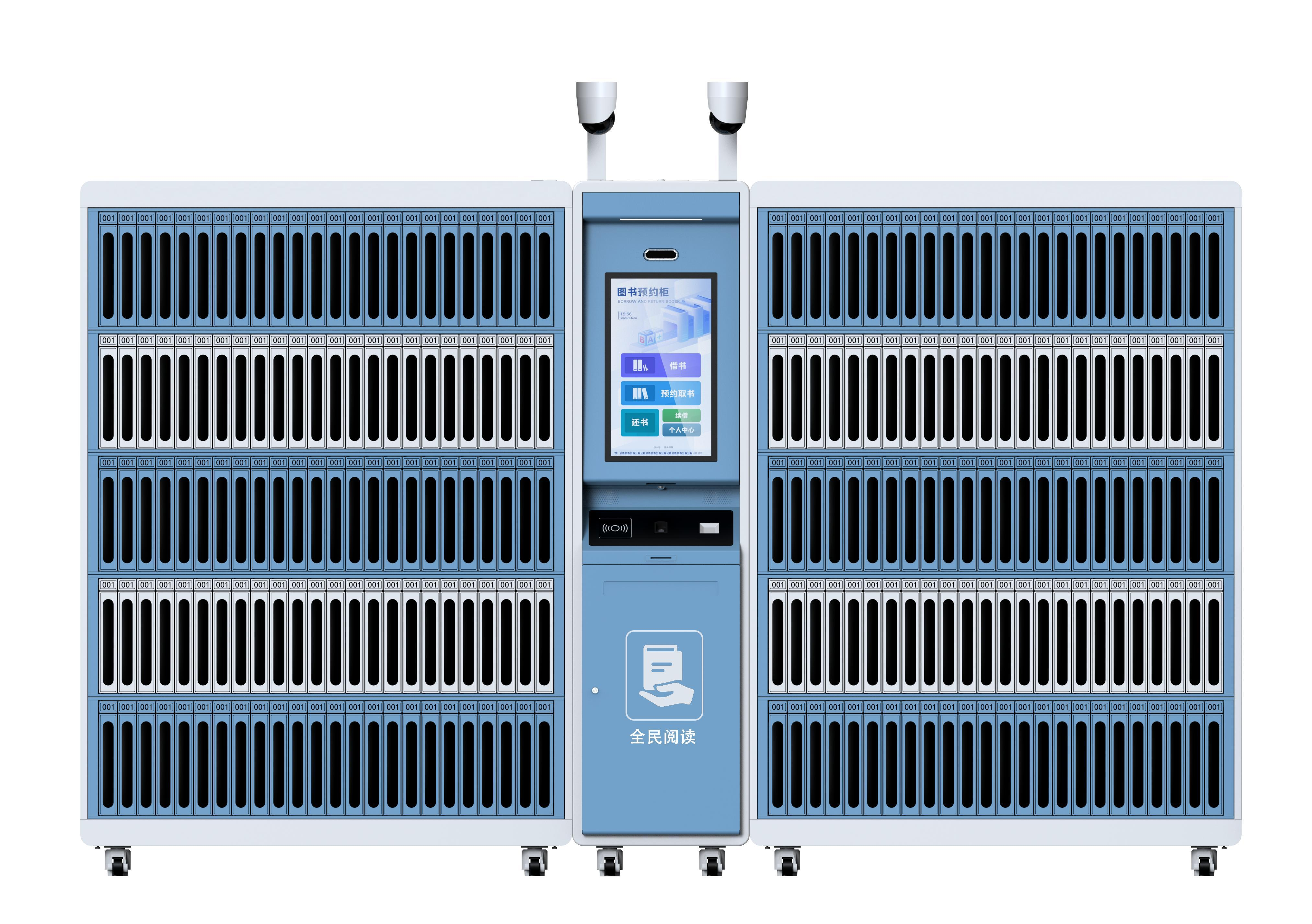

Reservation Smart Book Cabinet

RFID protocol

HF ISO15693-3

Cabinet configuration

One main cabinet with expandable auxiliary cabinets

Auxiliary cabinet capacity

120 cells / approx. 120 books per auxiliary cabinet

Main cabinet capacity

14 cells / approx. 14 books, optional

Cell size

Internal height >= 297 mm, suitable for A4-size books

Borrow / return time

Less than 3 seconds per transaction, supports multiple books

Touchscreen

21.5 inch embedded capacitive touchscreen

Authentication options

Face recognition, QR/barcode, fingerprint, ID card, reader card

Main cabinet size

480 x 475.02 x 1799.7 mm; 2147.2 mm high including monitoring bracket

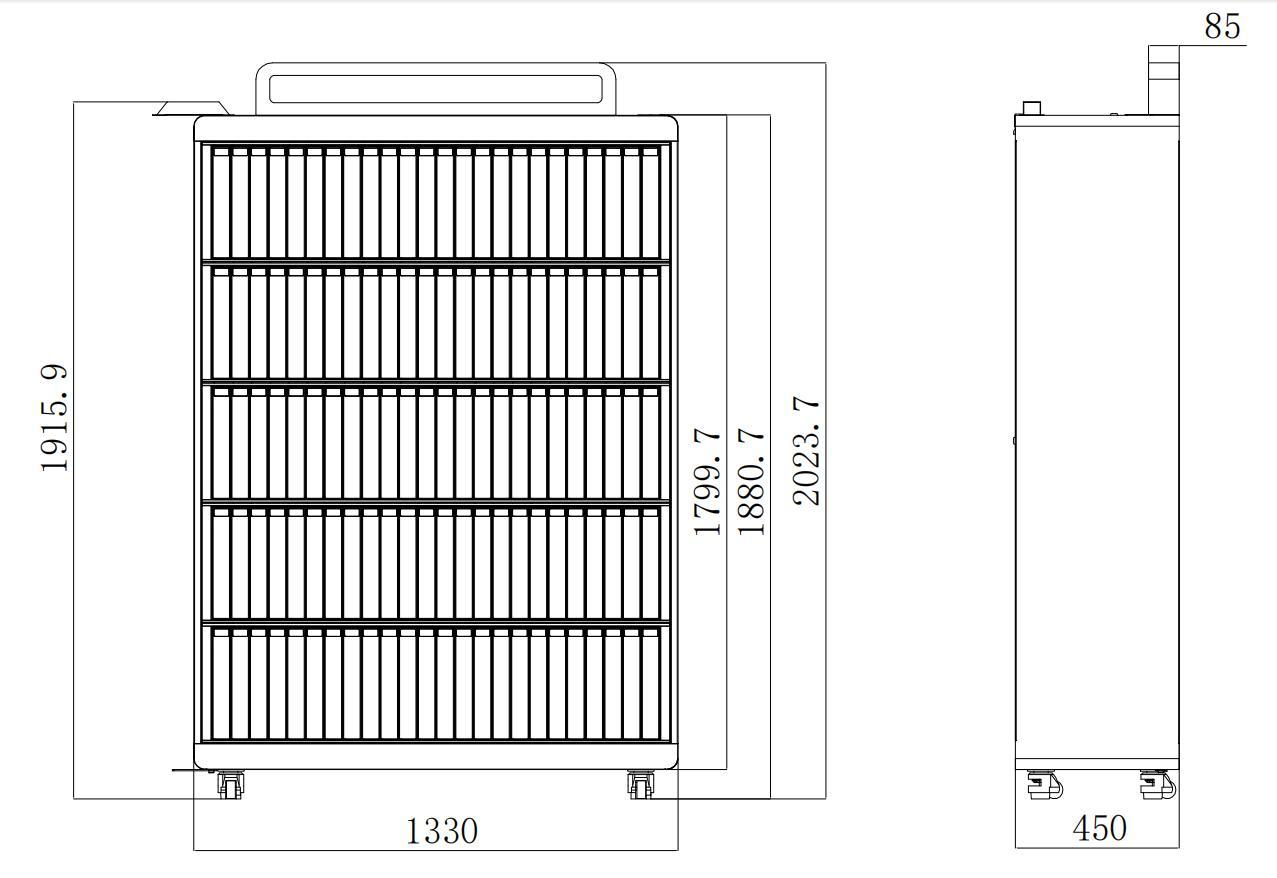

Auxiliary cabinet size

1330 x 450 x 1799.7 mm; 2023.7 mm high with LED display

Main cabinet package size

2038 x 690 x 615 mm

Auxiliary cabinet package size

2038 x 1465 x 580 mm

Main cabinet weight

Approx. 100 kg

Auxiliary cabinet weight

Approx. 220 kg

Main cabinet power

120 W

Auxiliary cabinet power

60 W

Power input

AC 110-230 V / 50 Hz

Operating temperature

-20 C to 60 C

Storage temperature

-30 C to 80 C
