Core Workflow
Purpose-built for intelligent mini library cabinet workflows in libraries and archives.
Back to RFID Tags & Devices
Library & Public-Service Equipment
RWT110

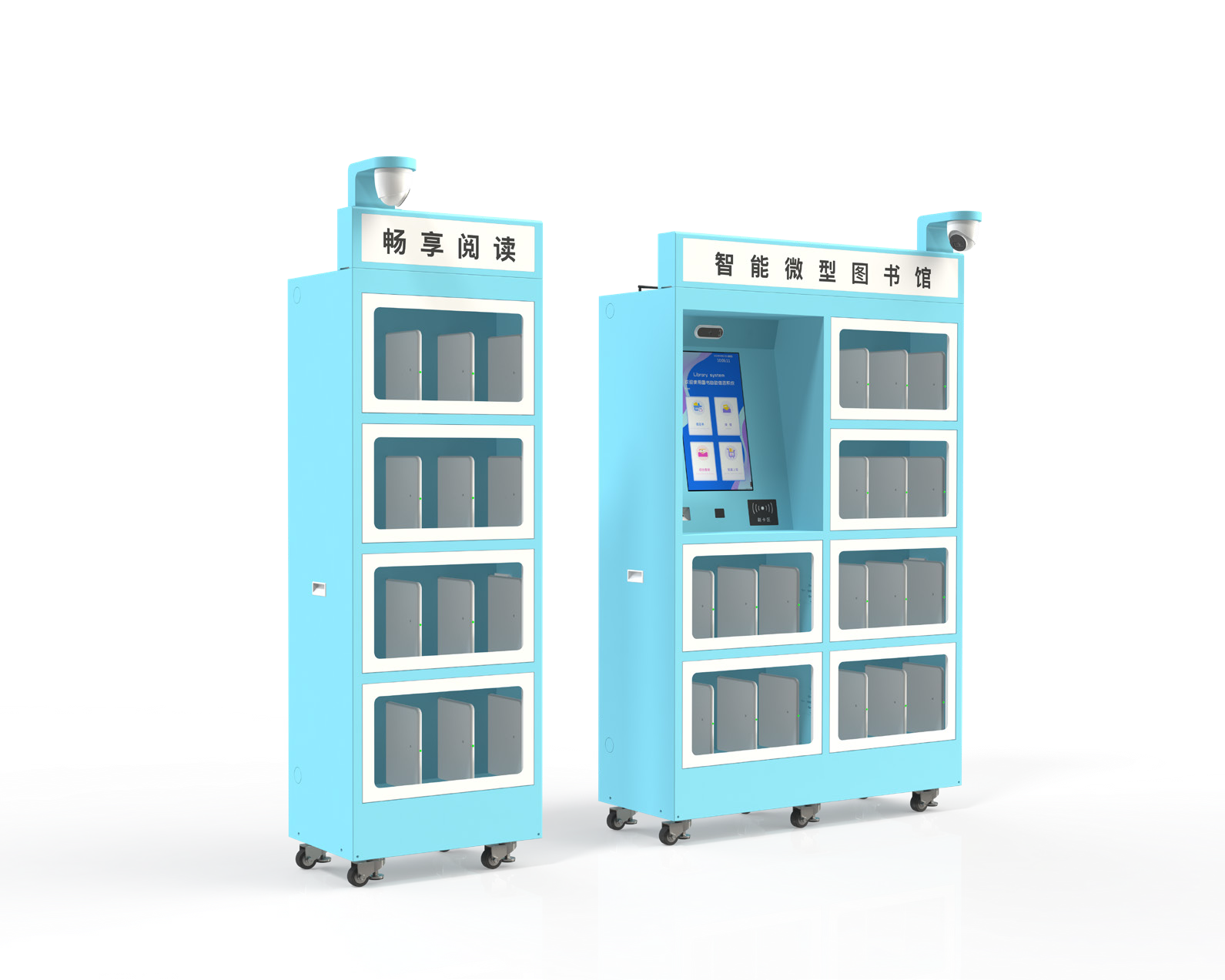

Intelligent Mini Library Cabinet
Intelligent Mini Library Cabinet for intelligent library service workflows.
Key parameters
Product model
RWT110
Product name
Intelligent Mini Library Cabinet
Working frequency
13.56 MHz
Supported standards
ISO15693 and ISO18000-3
Cabinet layers
Main cabinet: 4 layers / 6 doors; auxiliary cabinet: 4 layers / 4 doors; expandable splicing
Book capacity
<= 500 books total; main cabinet approx. 300 books, auxiliary cabinet approx. 200 books
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
RFID Operation
Supports RFID-enabled item identification and efficient service operation.
Service Scenario
Designed for public library, school library, archive, and bookstore scenarios.
Deployment
Structured for stable daily deployment and convenient management.
Solution Fit
Connect this model to the right operating scene
A product page should not be a dead end. These links help buyers move from a model into the industry workflow where the device is normally evaluated.
Project Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Confirm the surrounding tags, readers, antennas, cabinets, terminals, and physical workflow before quoting.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify whether the buyer needs hardware supply, OEM cooperation, integrator installation, or workflow software.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
Product Parameters
Product model
RWT110
Product name
Intelligent Mini Library Cabinet
Working frequency
13.56 MHz
Supported standards
ISO15693 and ISO18000-3
Cabinet layers
Main cabinet: 4 layers / 6 doors; auxiliary cabinet: 4 layers / 4 doors; expandable splicing
Book capacity
<= 500 books total; main cabinet approx. 300 books, auxiliary cabinet approx. 200 books
Borrowing methods
Face recognition, IC card, ID card, WeChat QR code, QR/barcode
Energy-saving technology
Radar sensing, sensing distance up to 10 m
Screen size
21.5 inch portrait touchscreen
Camera
2 MP adjustable camera
External USB
2
Cabinet door
Electronic lock opening
Monitoring system
Hikvision monitoring system with dual cameras
Structure, Reader & System
Physical size
Main cabinet: 1268 x 450 x 2127.5 mm; auxiliary cabinet: 649 x 450 x 2127.5 mm
Package size
Main cabinet: 1385 x 560 x 1970 mm; auxiliary cabinet: 770 x 560 x 1970 mm
Read / write function
Supports multi-tag identification and fast anti-collision processing
Screen resolution
1080 x 1920 @ 60 Hz
Touch type
10-point capacitive touchscreen
Material structure
>= 1.5 mm titanium alloy, tempered glass
HF reader
13.56 MHz; ISO15693 and ISO18000-3; 1-8 W; >= 65 tags/s; RS232 / RS485 / Ethernet
Network
Ethernet, WiFi
Power input
220 V 60 Hz
Gross weight
Main cabinet approx. 210 kg; auxiliary cabinet approx. 100 kg

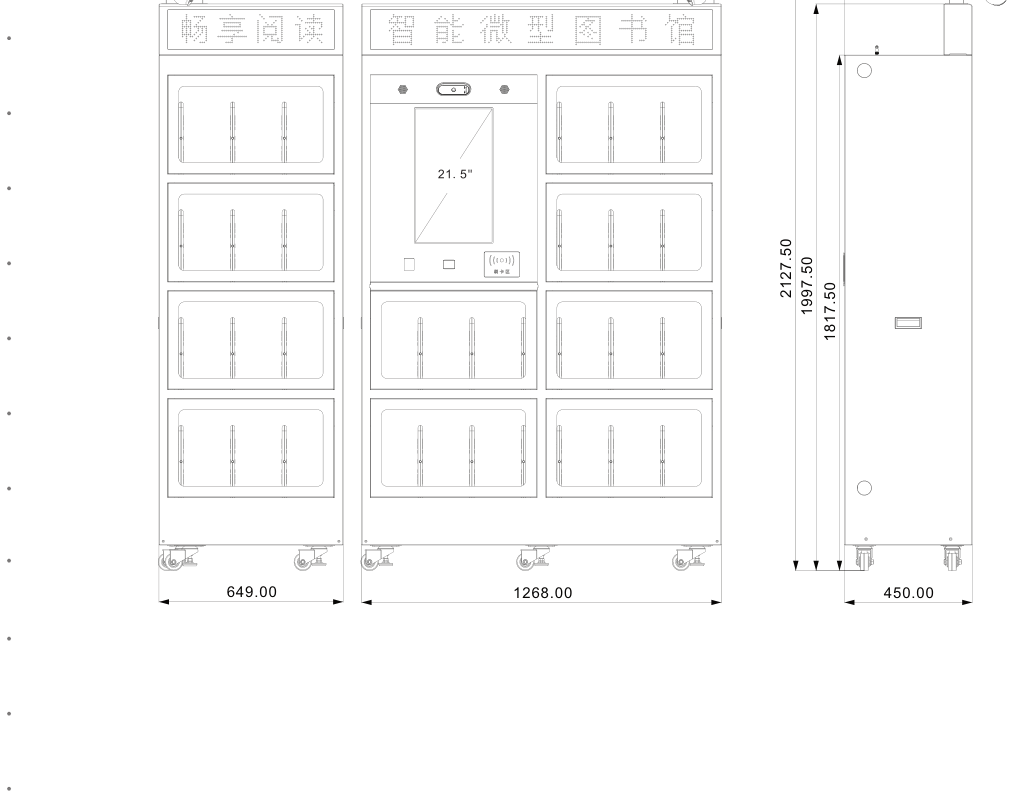

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
