Core Workflow
Purpose-built for uhf rfid gate smart channel workflows in libraries and archives.
Back to RFID Tags & Devices
Library & Public-Service Equipment

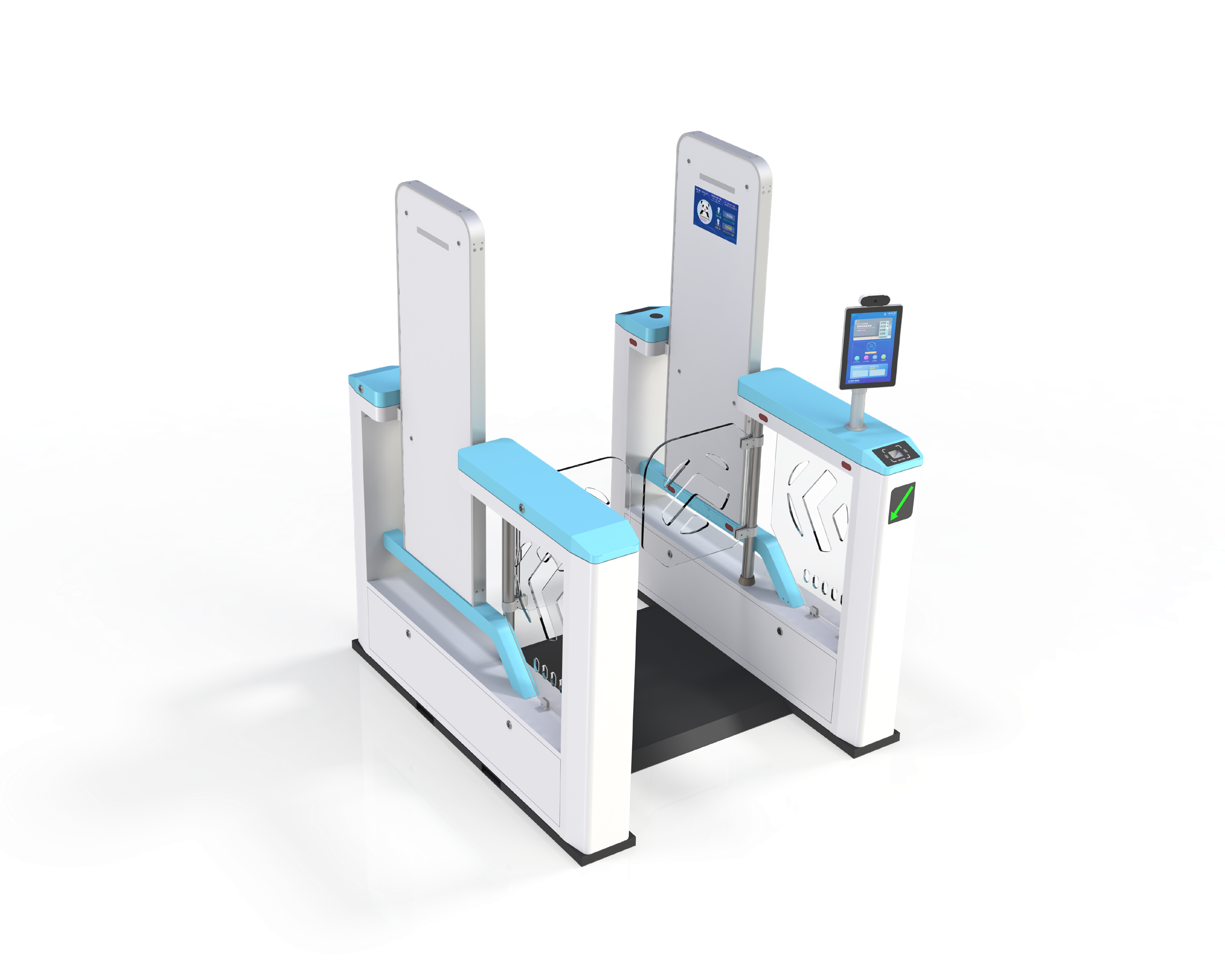

RU6951
UHF RFID Gate Smart Channel
UHF RFID Gate Smart Channel for intelligent library service workflows.
Key parameters
Product model
RU6951
Product name
UHF RFID Gate Smart Channel
Working frequency
840-960 MHz
Supported standards
ISO 18000-6C / EPC C1G2
Channel identification width
70-100 cm, recommended 82 cm
Reading distance
0-600 cm
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
RFID Operation
Supports RFID-enabled item identification and efficient service operation.
Service Scenario
Designed for public library, school library, archive, and bookstore scenarios.
Deployment
Structured for stable daily deployment and convenient management.
Solution Fit
Connect this model to the right operating scene
A product page should not be a dead end. These links help buyers move from a model into the industry workflow where the device is normally evaluated.
Project Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Pair the reader or terminal with suitable tags, antennas, enclosure, operator workflow, and installation constraints.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify whether the buyer needs hardware supply, OEM cooperation, integrator installation, or workflow software.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
RFID & Gate Parameters
Product model
RU6951
Product name
UHF RFID Gate Smart Channel
Working frequency
840-960 MHz
Supported standards
ISO 18000-6C / EPC C1G2
Channel identification width
70-100 cm, recommended 82 cm
Reading distance
0-600 cm
RF output power
0-33 dBm, adjustable
Communication interface
Ethernet, WiFi
Alarm mode
EPC
Reading range
3D sensing
Tag reading speed
> 400 reads/s
Antenna
8 dBi circularly polarized antenna
Access, Structure & Environment
Access modes
Card swipe, QR/barcode scanning, and optional face recognition
Gate type
Swing gate
Anti-tailgating
Supported
Collision protection
Supported
Emergency opening
Integrated emergency opening switch
People counting
Supported with 5 infrared sensing groups
Display
Standard no screen; optional 7 inch or 10.1 inch screen
Physical size
1380 x 187 x 1650 mm
Package size
1482 x 302 x 1812 mm
Maximum power consumption
<= 150 W
Power input
AC 100-240 V, 50-60 Hz
Operating temperature
-20 C to 60 C
Gross weight
Approx. 65 kg per panel

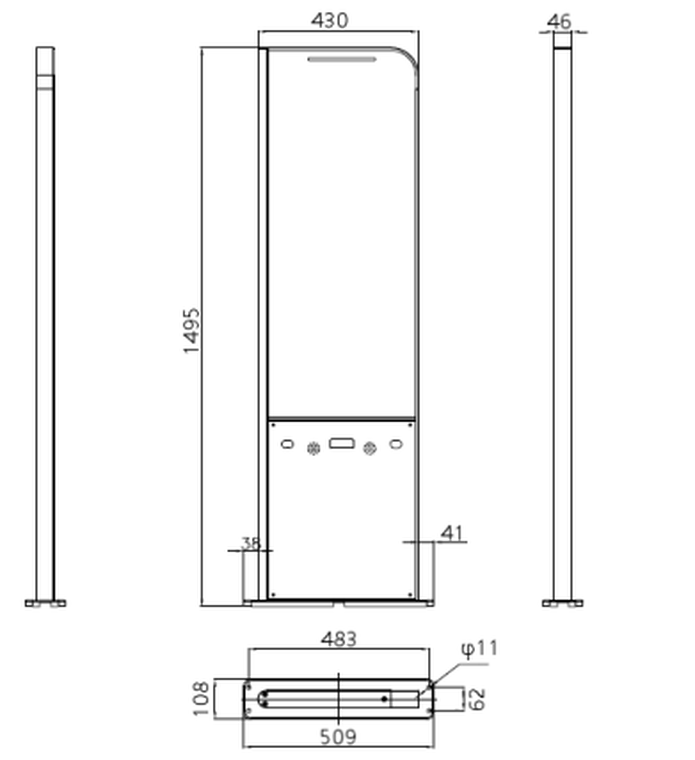

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
