RU6950

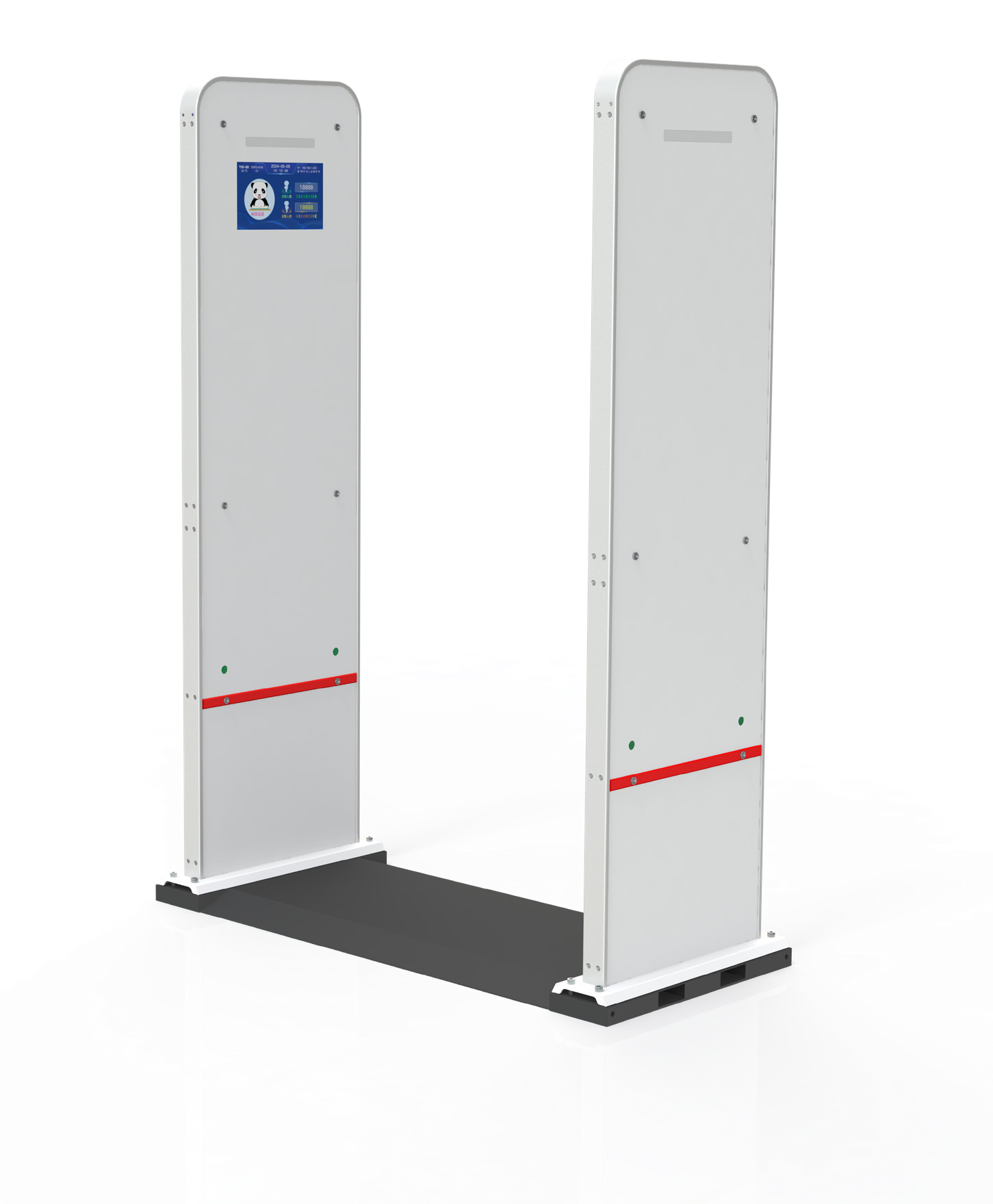

UHF RFID Safety Gate
UHF RFID Safety Gate for intelligent library service workflows.
Key parameters
Product model
RU6950
Product name
UHF RFID Safety Gate
Working frequency
840-960 MHz
Supported standards
ISO 18000-6C / EPC C1G2, ISO 18000-6B, optional GB/T 29768-2013
Channel width
80-120 cm, website selection table uses 80-140 cm depending on installation
Reading distance
0-600 cm
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
RFID Operation
Supports RFID-enabled item identification and efficient service operation.
Service Scenario
Designed for public library, school library, archive, and bookstore scenarios.
Deployment
Structured for stable daily deployment and convenient management.
Solution Fit
Connect this model to the right operating scene
A product page should not be a dead end. These links help buyers move from a model into the industry workflow where the device is normally evaluated.
Project Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Pair the reader or terminal with suitable tags, antennas, enclosure, operator workflow, and installation constraints.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify whether the buyer needs hardware supply, OEM cooperation, integrator installation, or workflow software.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
RFID & Security Parameters
Product model
RU6950
Product name
UHF RFID Safety Gate
Working frequency
840-960 MHz
Supported standards
ISO 18000-6C / EPC C1G2, ISO 18000-6B, optional GB/T 29768-2013
Channel width
80-120 cm, website selection table uses 80-140 cm depending on installation
Reading distance
0-600 cm
RF output power
0-33 dBm, adjustable
People counting
Supported with two infrared sensing groups
Alarm mode
EPC
Reading range
3D sensing
Tag reading speed
>= 400 tags/s
Relay
4 channels
Structure, Interface & Environment
Alarm prompt
Light and buzzer, volume adjustable
Housing material
Acrylic, titanium alloy, aluminum alloy
Waterproof
Not supported
Physical size
500 x 120 x 1530 mm
Package size
600 x 200 x 1625 mm
Maximum power consumption
20-40 W
Power input
AC 100-240 V, 50-60 Hz
Operating temperature
-20 C to 60 C
Storage temperature
-40 C to 85 C
Relative humidity
10%-95% RH, non-condensing
Communication interface
Ethernet
Safety gate base
90 cm or 120 cm cable-trough base optional
Gross weight
Approx. 17 kg per panel

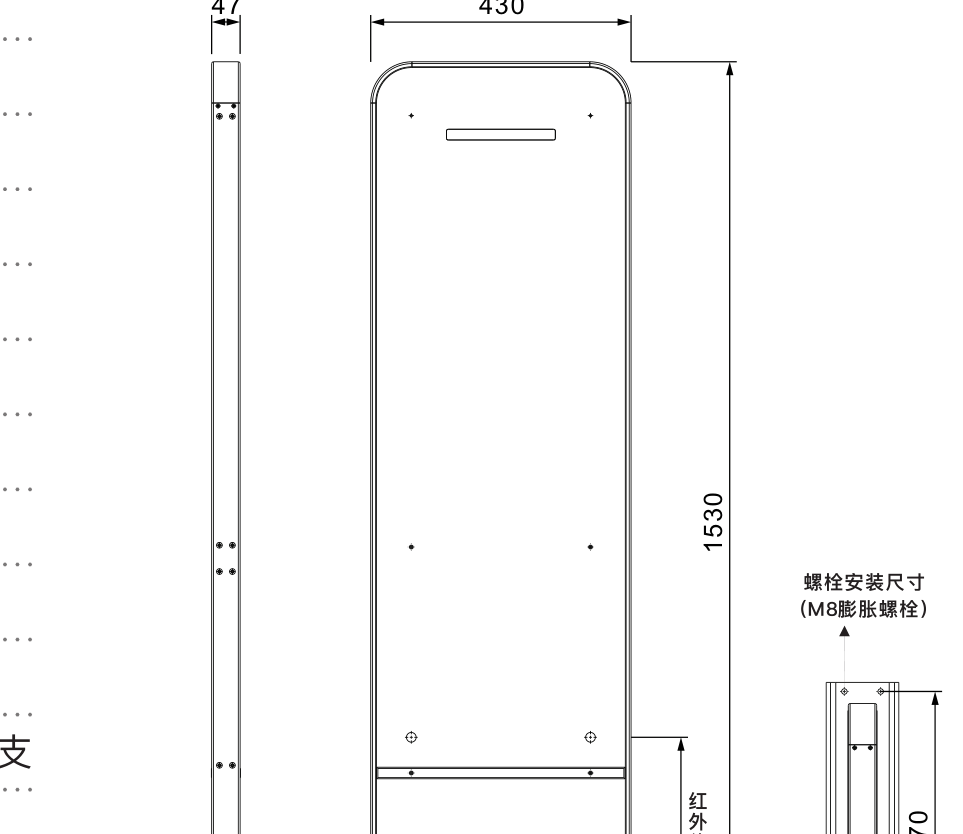

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
