Core Workflow
Purpose-built for hf rfid safety gate workflows in libraries and archives.
Back to RFID Tags & Devices
Library & Public-Service Equipment
RU6911

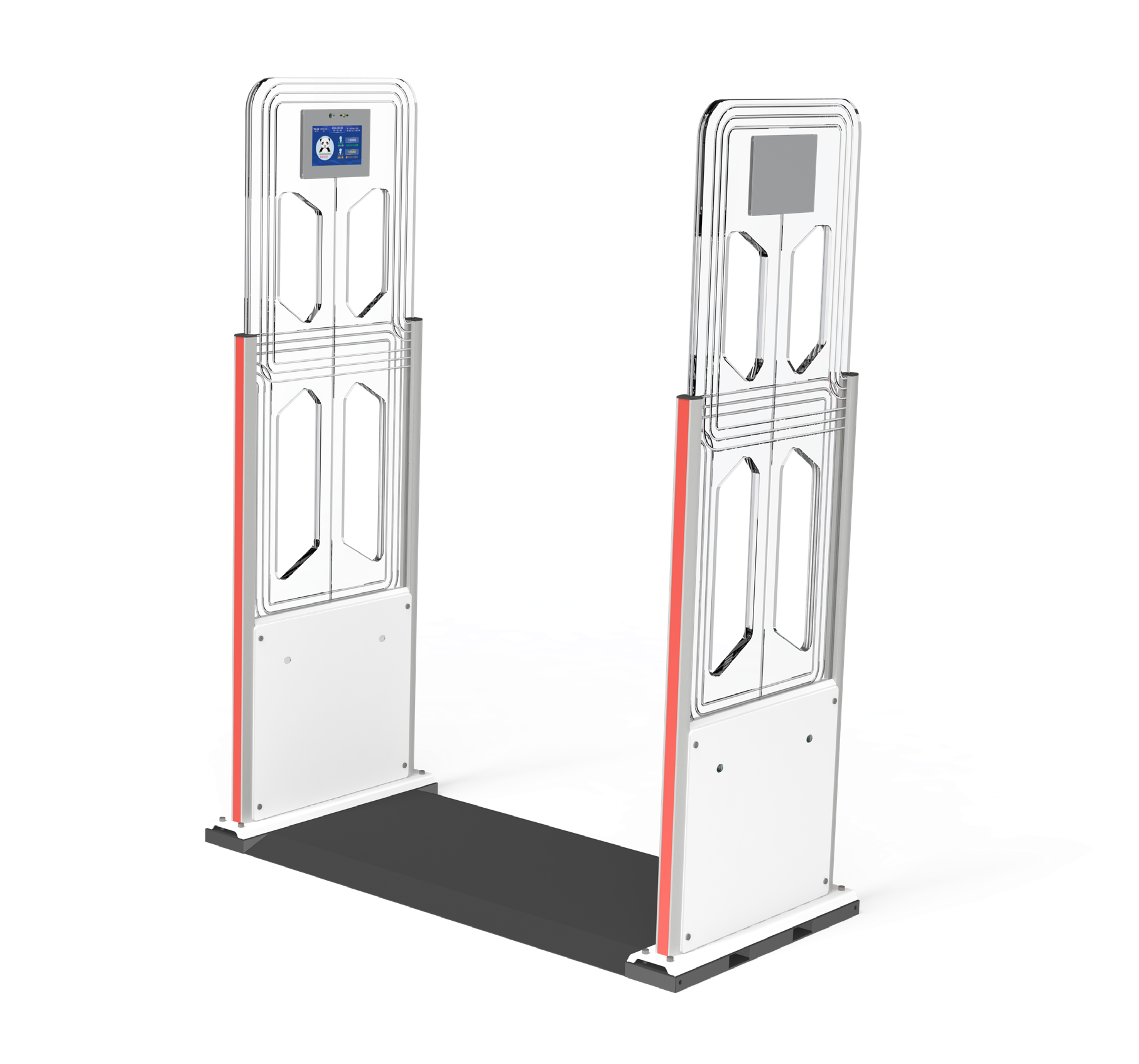

HF RFID Safety Gate
HF RFID Safety Gate for intelligent library service workflows.
Key parameters
Product model
RU6911
Product name
HF RFID Safety Gate
Working frequency
13.56 MHz
Supported standards
ISO15693 and ISO18000-3
Channel identification width
Up to 150 cm
RF power
1-8 W
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
RFID Operation
Supports RFID-enabled item identification and efficient service operation.
Service Scenario
Designed for public library, school library, archive, and bookstore scenarios.
Deployment
Structured for stable daily deployment and convenient management.
Solution Fit
Connect this model to the right operating scene
A product page should not be a dead end. These links help buyers move from a model into the industry workflow where the device is normally evaluated.
Project Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Pair the reader or terminal with suitable tags, antennas, enclosure, operator workflow, and installation constraints.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify whether the buyer needs hardware supply, OEM cooperation, integrator installation, or workflow software.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
RFID & Security Parameters
Product model
RU6911
Product name
HF RFID Safety Gate
Working frequency
13.56 MHz
Supported standards
ISO15693 and ISO18000-3
Channel identification width
Up to 150 cm
RF power
1-8 W
People counting
Supported with two infrared sensing groups
Alarm mode
AFI, EAS, DSFID, AFI+EAS, DSFID+EAS
Reading range
3D sensing
Noise detection
Supported
Relay
Integrated 8-channel relay linkage output
Tag reading speed
>= 65 tags/s
Radar sensing
Senses approaching users and enables work mode; enters standby when no one is present, sensing distance up to 10 m
Optional modules
Alarm snapshot camera, body-temperature probe, and distance probe
Structure, Interface & Environment
Display / indicator
7 inch HD display; dynamic UI, traffic count, alarm information, temperature and humidity, gate quantity, alarm mode, IP address
Alarm light
Seven-color selectable light: red, orange, white, green, cyan, blue, purple
Alarm prompt
Voice, buzzer, and seven-color light alarm; volume adjustable
Alarm light mode
Breathing light and alarm light
Housing material
Acrylic, sheet metal, aluminum alloy
Waterproof
Not supported
Physical size
633 x 120 x 1660 mm
Package size
730 x 180 x 1770 mm
Maximum power consumption
30 W (rated power 20 W)
Power input
AC 100-240 V, 50-60 Hz
Operating temperature
-20 C to 60 C
Storage temperature
-45 C to 85 C
Relative humidity
5%-80%
Color
White + transparent
Safety gate base
90 cm, 120 cm, or 150 cm optional
Communication interface
Ethernet
Gross weight
Approx. 29 kg per panel
Net weight
Project dependent

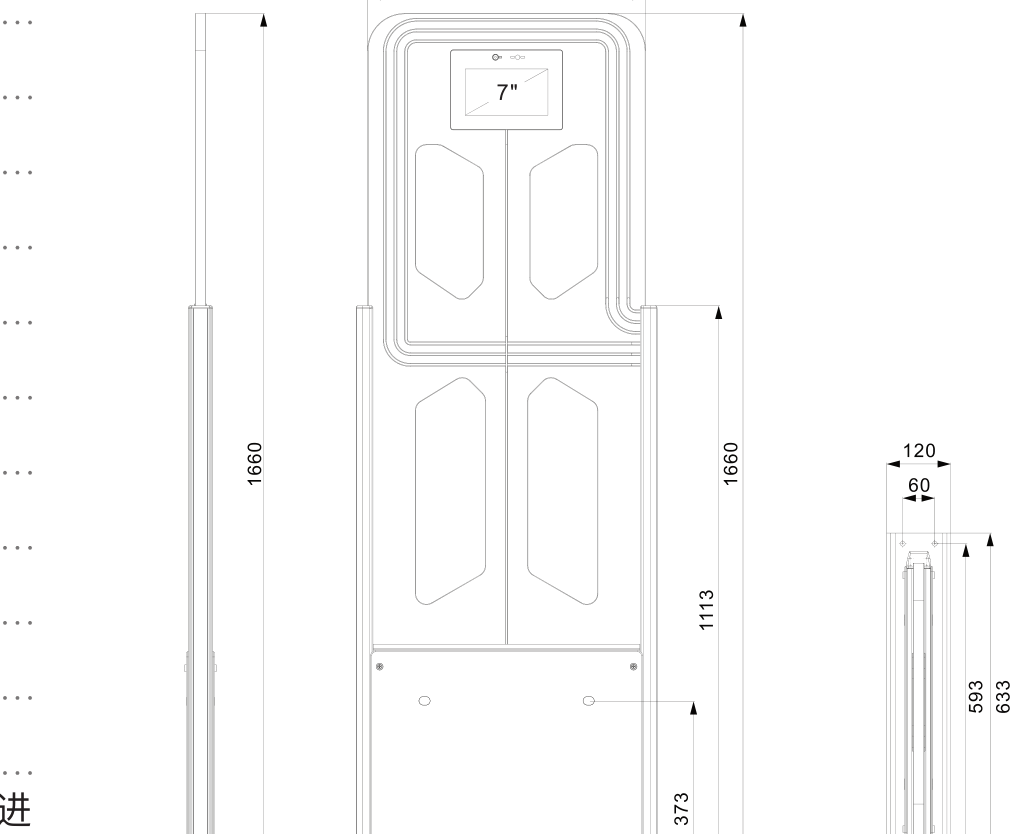

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
