RU6801 / RU6805 / RU6810 / RU6815

Product model

RU6801 / RU6805 / RU6810 / RU6815

Product name

HF High-Power Reader-Writer Series

Working frequency

13.56 MHz

Supported standards

ISO15693 and ISO18000-3

Reading speed

<= 65 tags per second

Card reading quantity

<= 300 tags per cycle

Reading distance

Up to 90 cm, depending on tag, antenna size, and environment

Antenna interface

RU6801: SMA x1; RU6805: SMA x5; RU6810: SMA x10; RU6815: SMA x15

RF power

1-8 W configurable

Noise detection

Supported

Communication interface

RS232, RS485, Ethernet

Working mode

Host control and scanning, configurable by software

Anti-collision processing

Supported

Energy saving

Automatic RF shutdown while idle

Prompt sound

Buzzer, when enabled

Housing material

Aluminum alloy

Waterproof

Not supported

Relay

1 channel

Power input

12 V DC, <= 300 mA

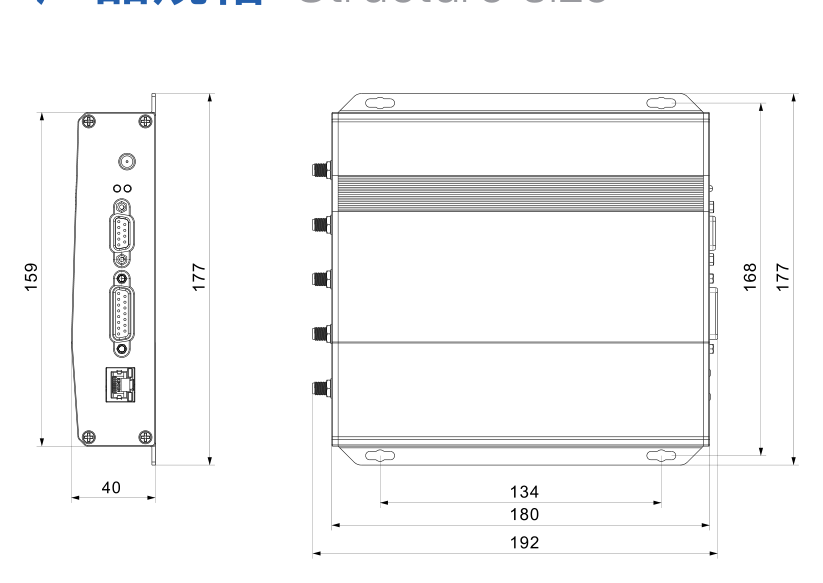

Physical size

192 x 177 x 40 mm

Package size

300 x 250 x 80 mm

Operating temperature

-20 C to 60 C

Storage temperature

-40 C to 85 C

Relative humidity

10%-95% RH, non-condensing
