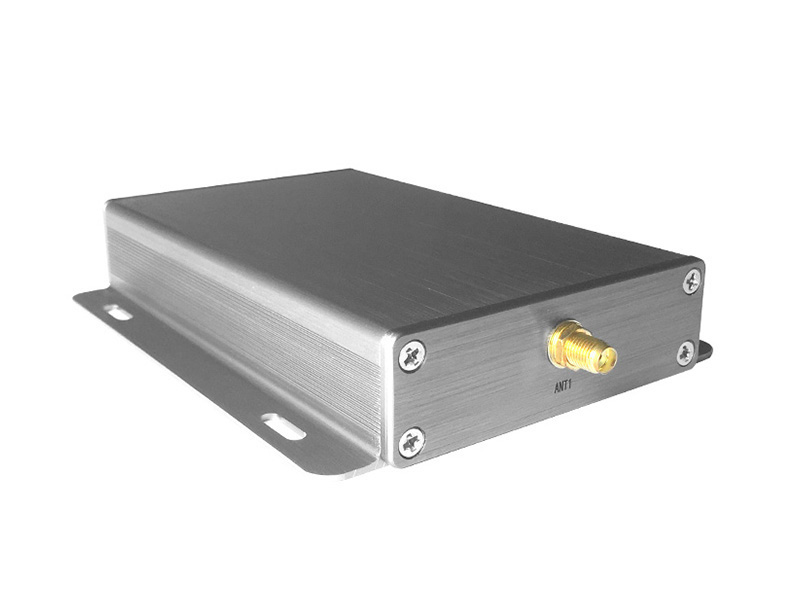

RU6601 / RU6602 / RU6604 / RU6608

Product model

RU6601 / RU6602 / RU6604 / RU6608

Product name

HF Medium-Power Reader-Writer Series

Working frequency

13.56 MHz

Supported standards

ISO15693 and ISO18000-3

Reading speed

<= 65 tags per second

Reading distance

Up to 65 cm, depending on tag, antenna size, and environment

Antenna interface

RU6601: SMA x1; RU6602: SMA x2; RU6604: SMA x4; RU6608: SMA x8

RF power

0.25-1.5 W configurable

Noise detection

Supported

Communication interface

RS232, USB

Working mode

Host control and scanning, configurable by software

Anti-collision processing

Supported

Energy saving

Automatic RF shutdown while idle

Prompt sound

Buzzer, when enabled

Housing material

Aluminum alloy

Waterproof

Not supported

Relay

1 channel

Power input

12 V DC, <= 300 mA

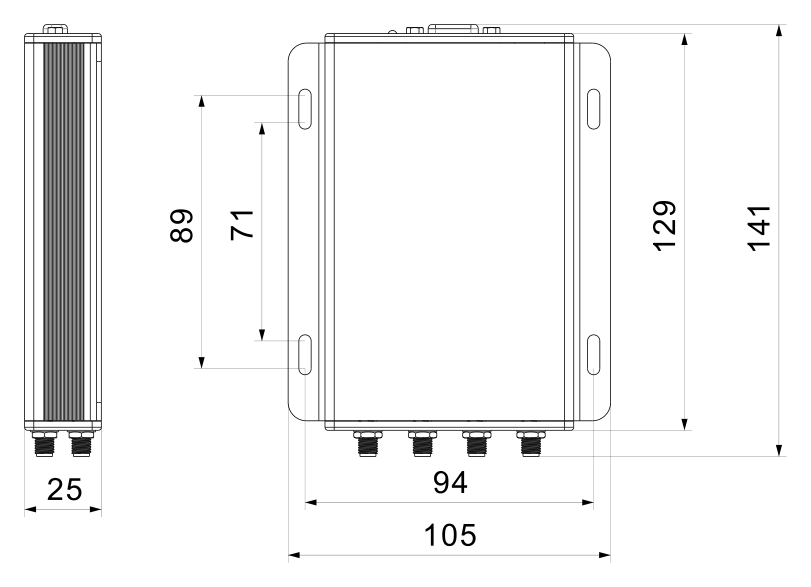

Physical size

141 x 105 x 25 mm

Package size

255 x 205 x 70 mm

Gross weight

Approx. 300 g; RU6608 approx. 350 g

Operating temperature

-20 C to 60 C

Storage temperature

-40 C to 85 C

Relative humidity

10%-95% RH, non-condensing
