UHF Reader
RU6530

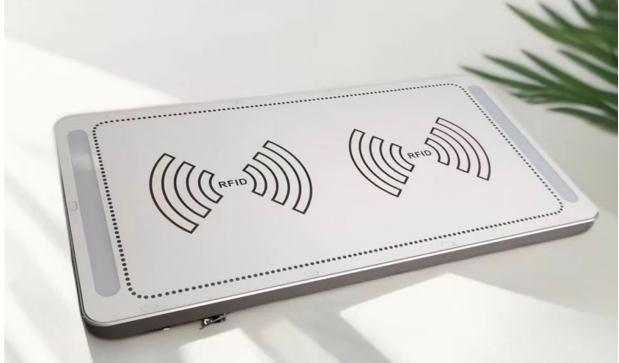

UHF Phased-Array Ceiling Reader
A ceiling-mounted UHF phased-array reader for precise retail item security and tracking.
Key parameters
Product model
RU6530
Product name
UHF Phased-Array Ceiling Reader
Working frequency
840-960 MHz
Supported standards
ISO 18000-6C / EPC Gen2
Reading speed
> 500 reads per second
Card reading quantity
<= 600 tags / 3 seconds
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
Retail Security
Reading speed above 500 reads per second.
Radar Triggering
Built-in circularly polarized phased-array antenna.
Sound-Light Alarm
Built-in millimeter-wave radar for trigger-zone definition and people counting.
Solution Fit
Connect this model to the right operating scene
A product page should not be a dead end. These links help buyers move from a model into the industry workflow where the device is normally evaluated.
Industrial manufacturing
Production-line traceability, equipment checkpoints, embedded machines, and harsh-site data capture.
View solutionWarehousing & distribution
Receiving, dispatch, reusable containers, cage carts, handheld exception checks, and WMS events.
View solutionOil & gas assets
Metal assets, inspection workflows, field terminals, fixed read zones, and harsh-environment review.
View solutionMedical / laboratory partners
Sample identity, rack-level reading, custody timestamps, and partner-led validation discussions.
View solutionProject Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Pair the reader or terminal with suitable tags, antennas, enclosure, operator workflow, and installation constraints.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify the operating workflow: stocktake, transfer, receiving, dispatch, inspection, custody, search, reporting, or exception handling.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
Product Parameters
Product model
RU6530
Product name
UHF Phased-Array Ceiling Reader
Working frequency
840-960 MHz
Supported standards
ISO 18000-6C / EPC Gen2
Reading speed
> 500 reads per second
Card reading quantity
<= 600 tags / 3 seconds
Reading / writing distance
0-20 m, depending on tag, antenna size, and environment
Antenna
Built-in circularly polarized antenna
RF power
33 dBm +/- 1 dB adjustable
Communication interface
Ethernet x1, serial port x1, optional Wi-Fi, 10M/100M adaptive
Working mode
Fixed-frequency / frequency-hopping optional
Anti-collision processing
Supported
Interface, Power & Environment
Energy saving
Automatic RF shutdown while idle
Prompt sound
Sound and light alarm
Housing material
Aluminum profile frame and acrylic panel
Waterproof
Not supported
Relay
1 channel
Power consumption
20 W
Physical size
1670 x 350 x 26.8 mm
Bracket size
110 x 120 x 110 mm
Operating temperature
-20 C to 60 C
Storage temperature
-40 C to 85 C
Relative humidity
5%-95% RH, non-condensing

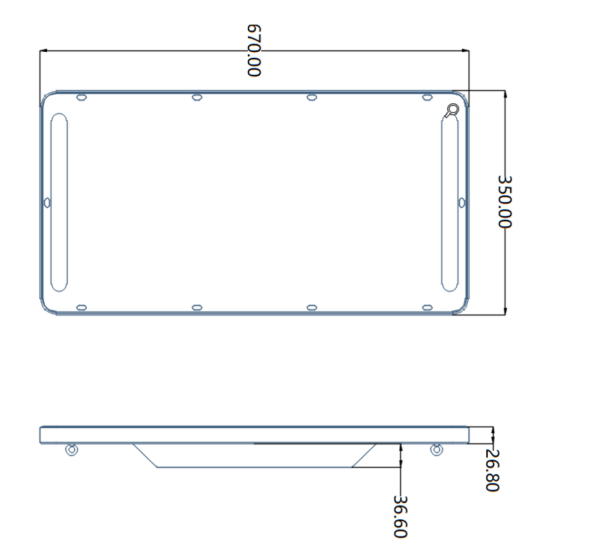

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
