UHF Protocol Support
UHF 840-960 MHz operation with ISO 18000-6C support.
Back to RFID Tags & Devices
UHF Reader
RU6521
UHF Desktop Reader-Writer
A desktop UHF reader-writer for long-range tag processing and workstation integration.
Key parameters
Product model
RU6521
Product name
UHF Desktop Reader-Writer
Working frequency
840-960 MHz
Supported standards
ISO 18000-6C
Reading speed
> 400 reads per second
Reading / writing distance
0-100 cm
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
Desktop Workflow
Reading and writing distance from 0 to 100 cm.
High-Speed Reading
High-speed reading at more than 400 reads per second.
Durable Structure
Tempered-glass and titanium alloy structure.
Solution Fit
Connect this model to the right operating scene
A product page should not be a dead end. These links help buyers move from a model into the industry workflow where the device is normally evaluated.
Industrial manufacturing
Production-line traceability, equipment checkpoints, embedded machines, and harsh-site data capture.
View solutionWarehousing & distribution
Receiving, dispatch, reusable containers, cage carts, handheld exception checks, and WMS events.
View solutionOil & gas assets
Metal assets, inspection workflows, field terminals, fixed read zones, and harsh-environment review.
View solutionMedical / laboratory partners
Sample identity, rack-level reading, custody timestamps, and partner-led validation discussions.
View solutionProject Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Pair the reader or terminal with suitable tags, antennas, enclosure, operator workflow, and installation constraints.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify the operating workflow: stocktake, transfer, receiving, dispatch, inspection, custody, search, reporting, or exception handling.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
Product Parameters
Product model
RU6521
Product name
UHF Desktop Reader-Writer
Working frequency
840-960 MHz
Supported standards
ISO 18000-6C
Reading speed
> 400 reads per second
Reading / writing distance
0-100 cm
Working mode
Host control and scanning, configurable by software
Anti-metal design
No
Prompt sound
Buzzer, when enabled
RF power
0-33 dBm adjustable
Housing material
Tempered glass and titanium alloy
Noise detection
Supported
Physical & Environmental
Waterproof
Not supported
Communication interface
RS232, USB
Operating temperature
-20 C to 60 C
Storage temperature
-40 C to 85 C
Maximum power consumption
8 W
Power input
12 V DC
Relative humidity
10%-95% RH, non-condensing
Anti-collision processing
Supported
Physical size
410 x 300 x 29 mm
Package size
475 x 405 x 80 mm
Gross weight
Approx. 2400 g

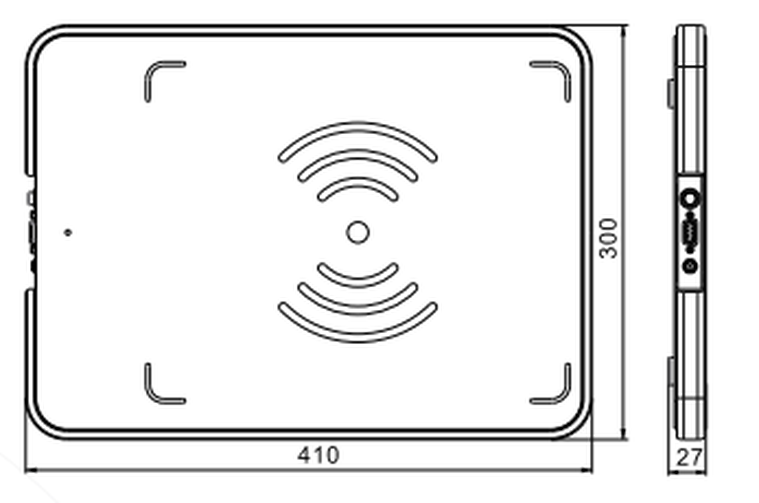

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
Related Models
Compare nearby models before shortlisting
Most industrial and public-service buyers evaluate a small family of devices rather than a single model. These related pages come from the same cleaned manual library.
For inquiry
Confirm fit before quoting
Target tags or items
Read distance and environment
Software or middleware connection
Pilot quantity and rollout plan
