Reader Module

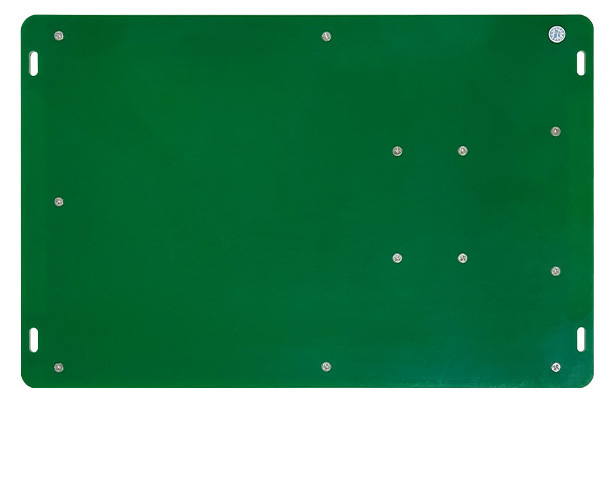

RU6402
HF Medium-Power Embedded Reader-Writer
A medium-size embedded HF reader-writer for configurable RFID equipment integration.
Key parameters
Product model
RU6402
Product name
HF Medium-Power Embedded Reader-Writer
Working frequency
13.56 MHz
Supported standards
ISO15693 and ISO18000-3
Reading speed
<= 50 tags per second
Reading distance
Up to 40 cm
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
40 cm Reading
Reading distance up to 40 cm with configurable RF power.
Anti-Metal Design
Anti-metal design supports stable embedded installation.
Configurable Modes
Supports host-control and scanning modes configurable by software.
Solution Fit
Connect this model to the right operating scene
A product page should not be a dead end. These links help buyers move from a model into the industry workflow where the device is normally evaluated.
Project Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Pair the reader or terminal with suitable tags, antennas, enclosure, operator workflow, and installation constraints.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify the operating workflow: stocktake, transfer, receiving, dispatch, inspection, custody, search, reporting, or exception handling.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
Product Parameters
Product model
RU6402
Product name
HF Medium-Power Embedded Reader-Writer
Working frequency
13.56 MHz
Supported standards
ISO15693 and ISO18000-3
Reading speed
<= 50 tags per second
Reading distance
Up to 40 cm
Working mode
Host control and scanning, configurable by software
Adjacent read range
<= 12 cm
Energy saving
Automatic RF shutdown while idle
Anti-metal design
Yes
Prompt sound
Buzzer, when enabled
RF power
0.25-1.5 W configurable
Physical & Environmental
Housing material
PCB and titanium alloy
Noise detection
Supported
Waterproof
Not supported
Communication interface
RS232, USB
Operating temperature
-20 C to 60 C
Storage temperature
-40 C to 85 C
Maximum power consumption
3.5 W
Power input
12 V DC
Relative humidity
10%-95% RH, non-condensing
Anti-collision processing
Supported
Physical size
350 x 230 x 27.6 mm
Package size
425 x 330 x 80 mm
Gross weight
Approx. 1860 g

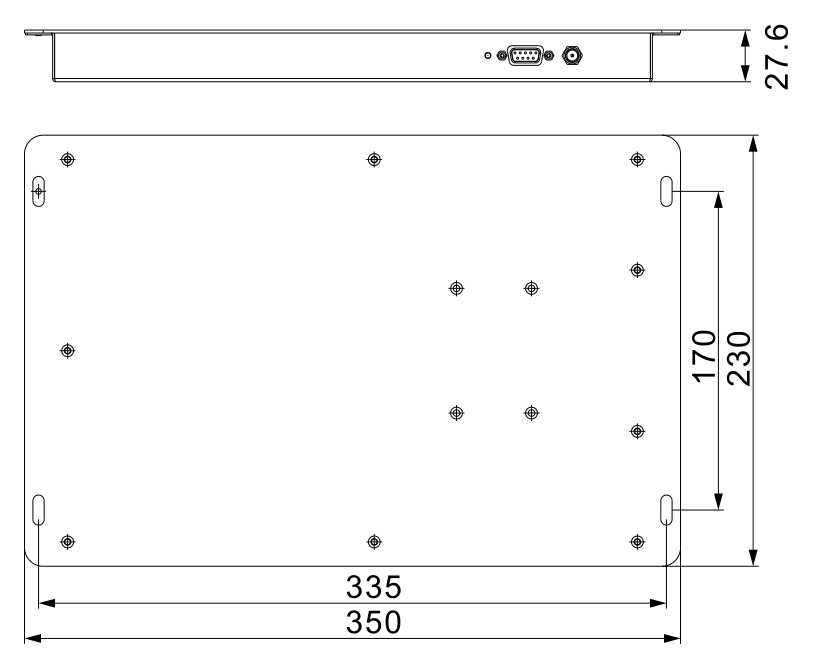

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
