Reader Module

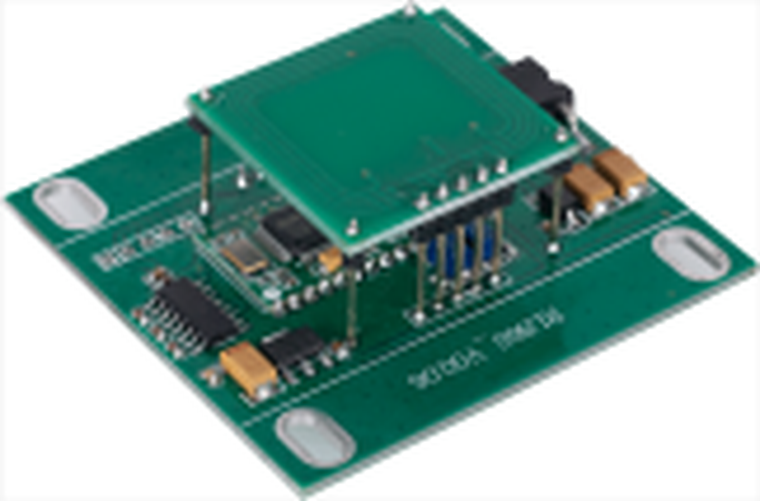

RU6204
HF Micro-Power Embedded Reader-Writer
A compact embedded HF reader-writer module for RS232-controlled RFID integration.
Key parameters
Product model
RU6204
Product name
HF Micro-Power Embedded Reader-Writer
Working frequency
13.56 MHz
Supported standards
ISO15693, ISO18000-3M3, ISO14443A
Reading speed
<= 50 tags per second
Reading distance
10 cm (ISO15693); 6 cm (ISO14443A)
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
Multi-Protocol Support
Embedded module format for equipment integration.
RS232 Interface
RS232 communication for controlled system integration.
Compact PCB
Supports anti-collision processing and multi-card reading.
Solution Fit
Connect this model to the right operating scene
A product page should not be a dead end. These links help buyers move from a model into the industry workflow where the device is normally evaluated.
Project Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Pair the reader or terminal with suitable tags, antennas, enclosure, operator workflow, and installation constraints.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify the operating workflow: stocktake, transfer, receiving, dispatch, inspection, custody, search, reporting, or exception handling.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
Product Parameters
Product model
RU6204
Product name
HF Micro-Power Embedded Reader-Writer
Working frequency
13.56 MHz
Supported standards
ISO15693, ISO18000-3M3, ISO14443A
Reading speed
<= 50 tags per second
Reading distance
10 cm (ISO15693); 6 cm (ISO14443A)
Anti-collision processing
Supported
Multi-card reading
Supported
Supported cards
I Code ILT, I Code SLI, I Code SLIX, I Code SLIX2, Mifare S50/70
Prompt sound
Buzzer, when enabled
Communication interface
RS232
Waterproof
Not supported
Physical & Environmental
Operating temperature
-20 C to 60 C
Storage temperature
-40 C to 85 C
Maximum power consumption
1.6 W
Power input
12 V DC
Relative humidity
10%-95% RH, non-condensing
Physical size
57 x 60 x 23 mm
Package size
425 x 303 x 60 mm
Gross weight
Approx. 50 g

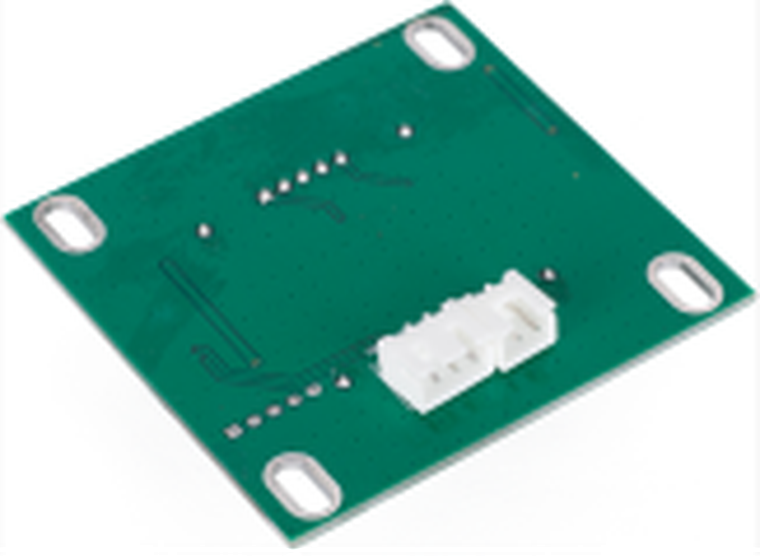

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
