Technical Specifications
Product model

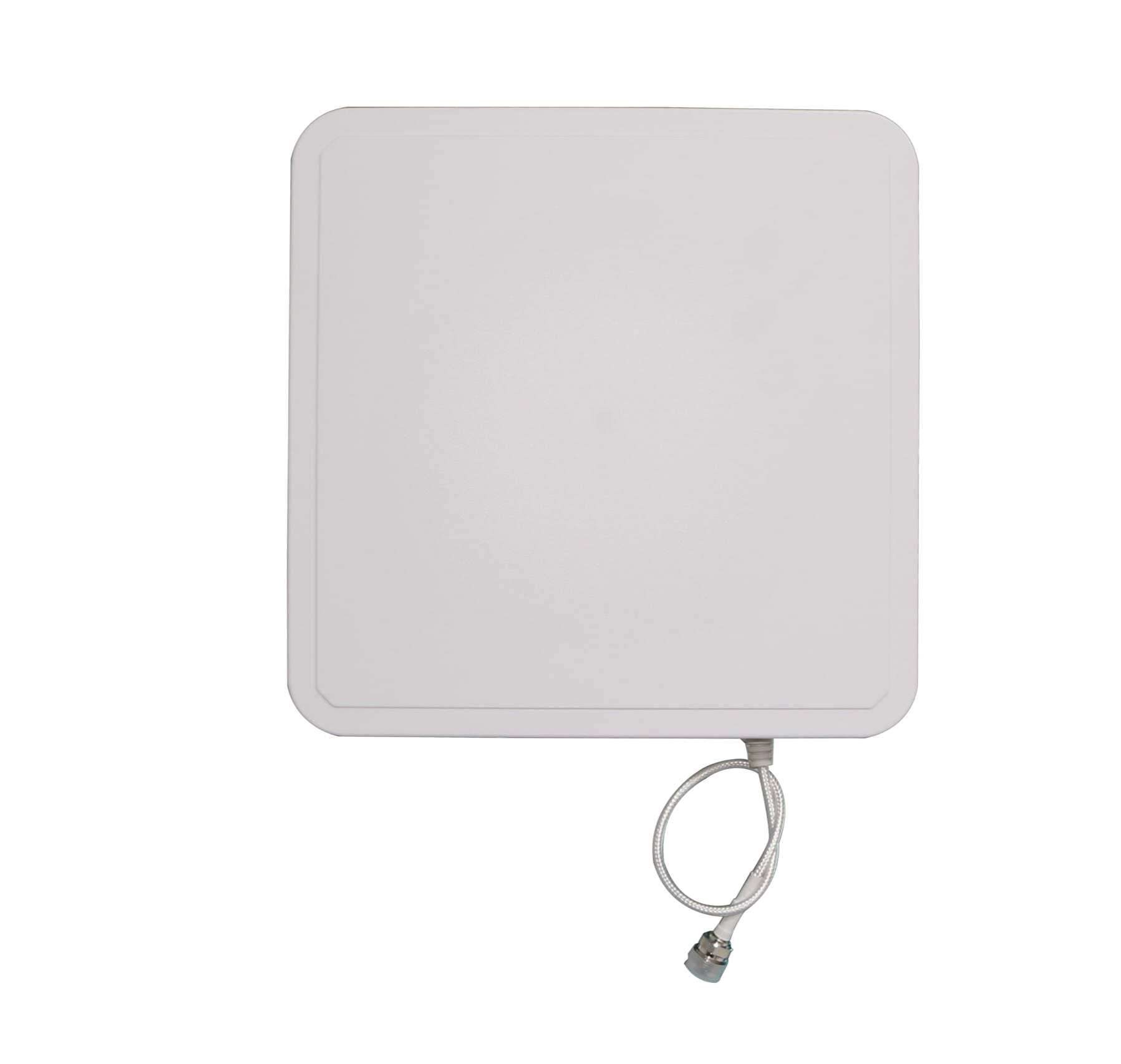

RTX1009
Product category
RFID antenna
Frequency range
840 MHz-960 MHz
Polarization
circular polarization
Gain
＞9 dBi
H-plane HPBW
70 degrees
E-plane HPBW
60 degrees
Impedance
50 Ω
VSWR
≤1.4
Connector type
SMA
Connector position
rear feed
Dimensions
258 mm x 258 mm x 40 mm
Weight
1000 g (excluding bracket)
Material
engineering plastic ABS + aluminum profile
Housing color
White
Installation
pole mounting (maximum pole diameter 50 mm)
Operating temperature
-20 C to + 60 C
Ingress protection
IP65
