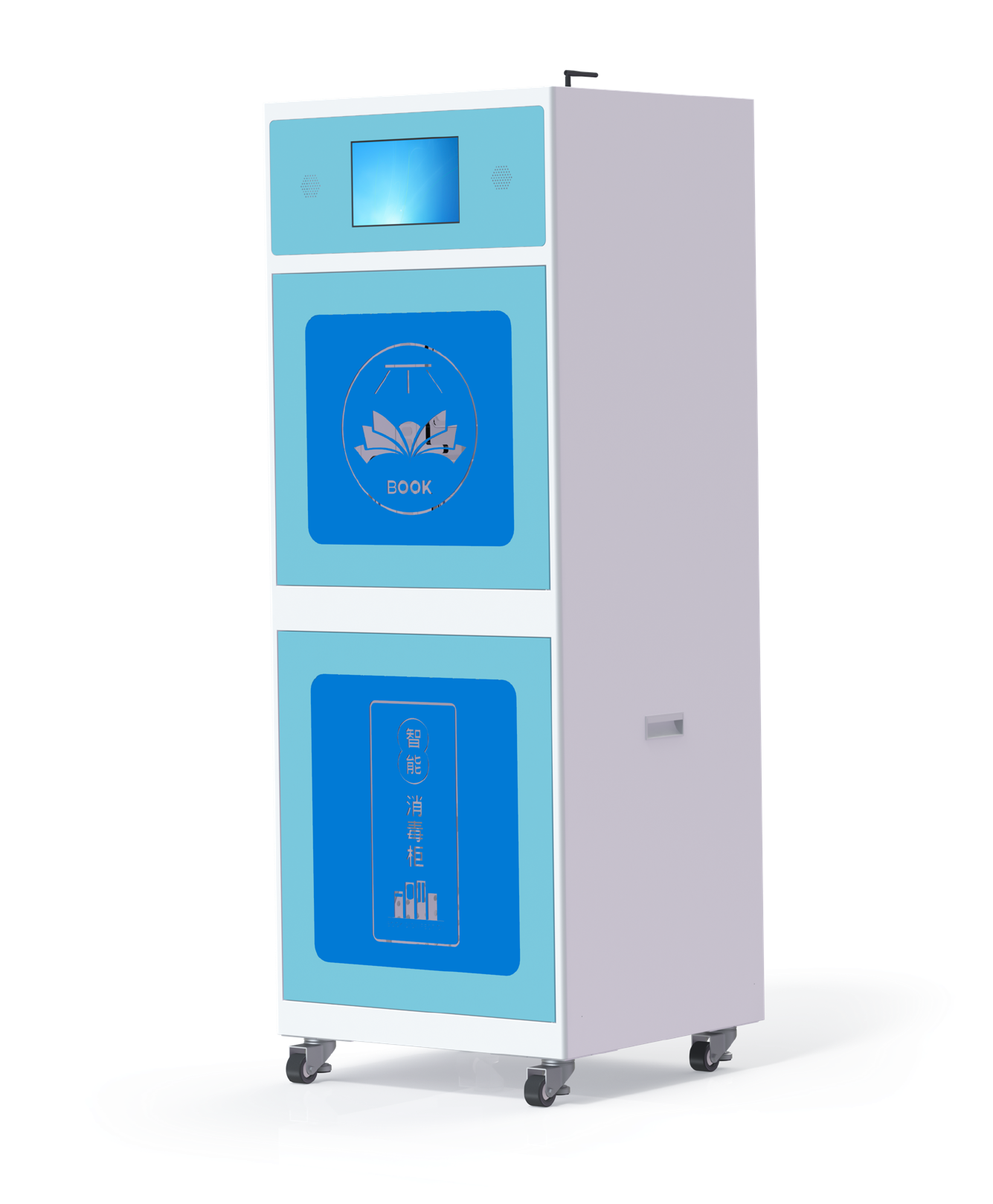

RTS3050 / RTS3050D

Product model

RTS3050 / RTS3050D

Product name

Smart Disinfection Cabinet

Disinfection mode

First layer: ozone + ultraviolet; second layer: ultraviolet

Sterilization target

Fungi, mold, hepatitis viruses, and microorganisms harmful to archives and books

Door opening

Electronic lock

Airflow system

2 cross-flow fans, 5.3 m3/min airflow

Book disinfection capacity

<= 50 books per batch

Deployment

Lightweight cabinet, movable deployment

Screen size

10.1 inch

External USB

2

Applicable items

Picture books, books, magazines, newspapers, archives

Emergency device

Mechanical emergency unlocking device

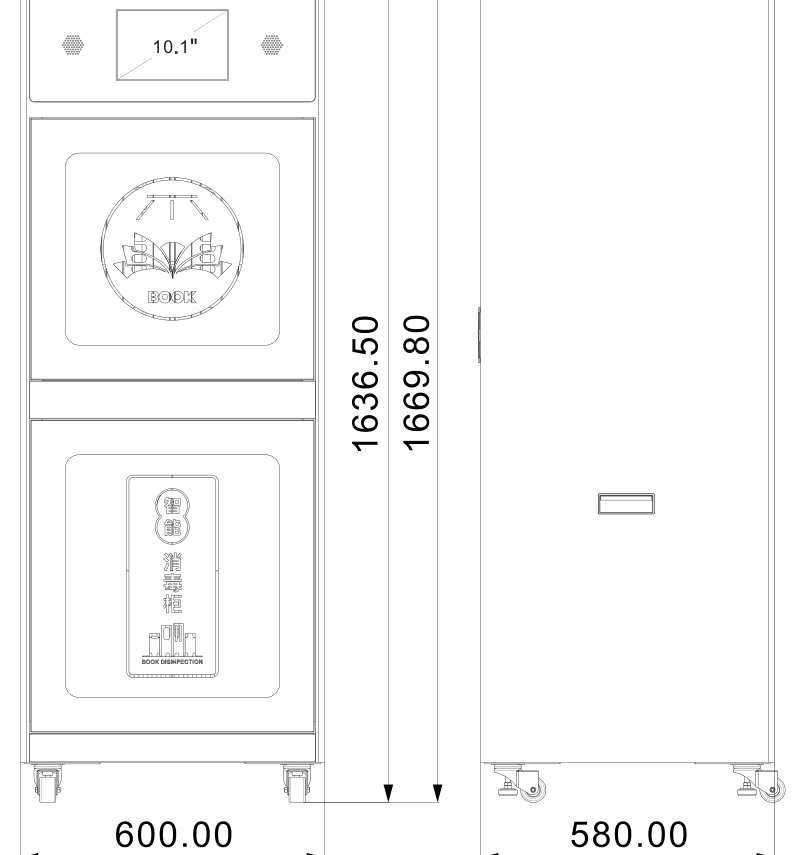

Physical size

600 x 580 x 1669.8 mm

Package size

715 x 685 x 1780 mm

Read / write function

Supports multi-tag identification and fast anti-collision processing

Display resolution

RTS3050: 1280 x 800 px @ 60 Hz; RTS3050D: 1024 x 600 px

Touch type

10-point capacitive touchscreen

Supported standards

ISO18000-3, ISO15693

Material structure

>= 1.5 mm sheet metal, tempered glass

Disinfection layers

Two layers: first layer <= 50 books; second layer <= 6 books

HF reader

13.56 MHz; ISO15693 and ISO18000-3; 1.5 W output; >= 50 tags/s; RS232 / RS485 / Ethernet; 12 V DC, <= 1.5 A

Second layer

2 integrated UV / ozone lamps, optional 9 groups; 2 cross-flow fans; 6 books per cycle

First layer

1 integrated UV / ozone lamp group, optional 2 groups; <= 50 books per batch; 50 mg/hr ozone generator

Gross weight

Approx. 80 kg
