Technical Specifications
Product model

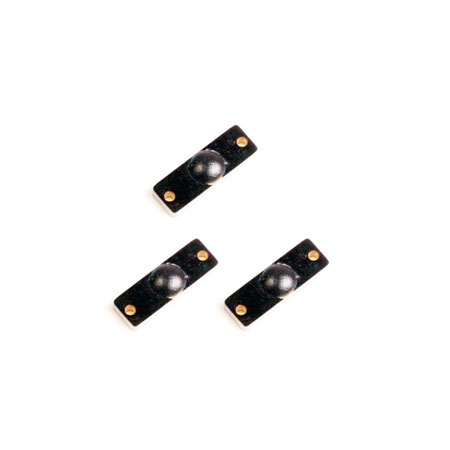

RPCB1204
Product category
PCB Anti-Metal RFID Tag Series
RFID protocol
EPC Class 1 Gen 2, ISO 18000-6C
Frequency
(US) 902-928 MHz,(EU) 865-868 MHz
Chip
NXP UCODE 8
Memory
EPC 128bits, User 0bits, TID 96bits
Write endurance
100,000 cycles
Function
Read / write
Data retention
50 years
Applicable surface
metal surface
Read range
0 to 0.6 m - (US) 902-928 MHz, metal surface
Warranty
1 years
Dimensions
12x4 mm
Thickness
chip position2.5 mm, other1.5 mm
Material
PCB
Color
Black
Installation
adhesive backing
Weight
0.2 g
Ingress protection
IP68
Storage temperature
-20 C to + 100 C
Operating temperature
-20 C to + 100 C
Certifications
REACH, RoHS, CE
