Technical Specifications
Product model

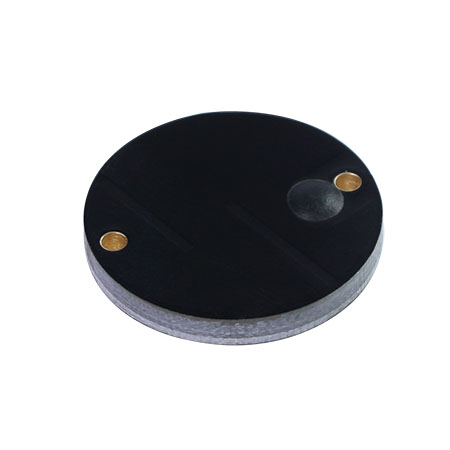

RPCB-D25
Product category
PCB Anti-Metal RFID Tag Series
RFID protocol
EPC Class 1 Gen 2, ISO 18000-6C
Frequency
(US) 902-928 MHz,(EU) 865-868 MHz
Chip
NXP UCODE 8
Memory
EPC 128bits, User 0bits, TID 96bits
Write endurance
100,000 cycles
Function
Read / write
Data retention
50 years
Applicable surface
metal surface
Read range
0 to 2.4 m - (US) 902-928 MHz, metal surface
Warranty
1 years
Dimensions
diameter25 mm (hole: diameter : 2 mm*2)
Thickness
3 mm
Material
PCB
Color
Black
Installation
adhesive backing, screws
Weight
3.4 g
Ingress protection
IP68
Storage temperature
-50 C to + 100 C
Operating temperature
-40 C to + 100 C
Certifications
REACH, RoHS, CE
