Library & Public-Service Equipment
RJHS1040

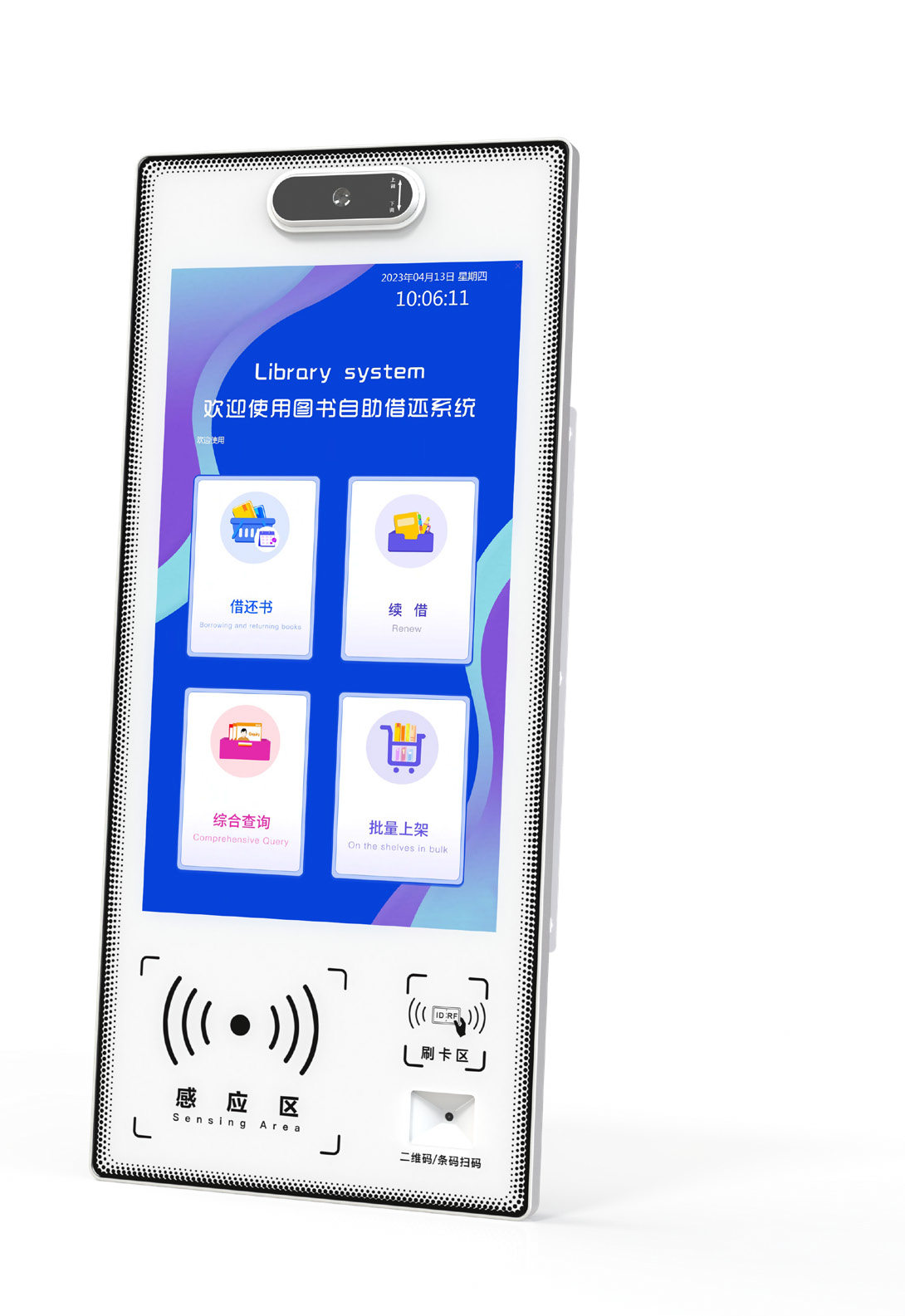

Wall-Mounted Loan and Return Machine
Wall-Mounted Loan and Return Machine for intelligent library service workflows.
Key parameters
Product model
RJHS1040
Product name
Wall-Mounted Loan and Return Machine
Working frequency
13.56 MHz, 840-960 MHz
Supported standards
ISO 15693, ISO 18000-6C
Book identification
Multiple books, stack height <= 250 mm, >= 10 books
Loan / return methods
Face recognition, IC card, ID card, WeChat QR code
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
RFID Operation
Supports RFID-enabled item identification and efficient service operation.
Service Scenario
Designed for public library, school library, archive, and bookstore scenarios.
Deployment
Structured for stable daily deployment and convenient management.
Solution Fit
Connect this model to the right operating scene
A product page should not be a dead end. These links help buyers move from a model into the industry workflow where the device is normally evaluated.
Project Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Confirm the surrounding tags, readers, antennas, cabinets, terminals, and physical workflow before quoting.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify whether the buyer needs hardware supply, OEM cooperation, integrator installation, or workflow software.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
Product Parameters
Product model
RJHS1040
Product name
Wall-Mounted Loan and Return Machine
Working frequency
13.56 MHz, 840-960 MHz
Supported standards
ISO 15693, ISO 18000-6C
Book identification
Multiple books, stack height <= 250 mm, >= 10 books
Loan / return methods
Face recognition, IC card, ID card, WeChat QR code
Camera
2 MP camera, adjustable
Applicable items
Picture books, books, magazines, newspapers, archives, assets
Physical size
338 x 80.8 x 768 mm (L x W x H)
Package size
842 x 138 x 415 mm
Display
21.5 inch touchscreen
Display resolution
1080 x 1920 @ 60 Hz (HDMI, up to 4K @ 60 Hz)
Touch type
10-point capacitive touchscreen
Material structure
Aluminum alloy, sheet metal, tempered glass
Gross weight
Approx. 18 kg
Installation
Wall-mounted
Serial ports
2
External USB
4
Reader, Interface & System
Read / write function
Supports multi-tag identification and fast anti-collision processing
HF reader
13.56 MHz; ISO15693 and ISO18000-3; 1.5 W output; >= 50 tags/s; Multiple books, stack height <= 150 mm; USB / RS232; 12 V DC; 3.5 W max.
UHF reader
840-960 MHz; ISO 18000-6C; 0-33 dBm adjustable; > 400 reads/s; multiple-book identification
Reader-card module
13.56 MHz; ISO15693 and ISO14443A; approx. 0-15 cm; USB; 5 V DC
ID-card reader
2nd / 3rd generation ID card and TYPE-A/B IC card reading; approx. 0-3 cm; USB / TTL; 5 V DC
Barcode / QR scanner
5 V USB; ARM32-bit processor; >= 4 MIL / 0.1 mm @ PCS90%; roll 0-360 degrees, pitch +/-65 degrees
Network
Ethernet, WiFi
System options
Windows or Android platform options, configurable by project
Power input
12 V DC

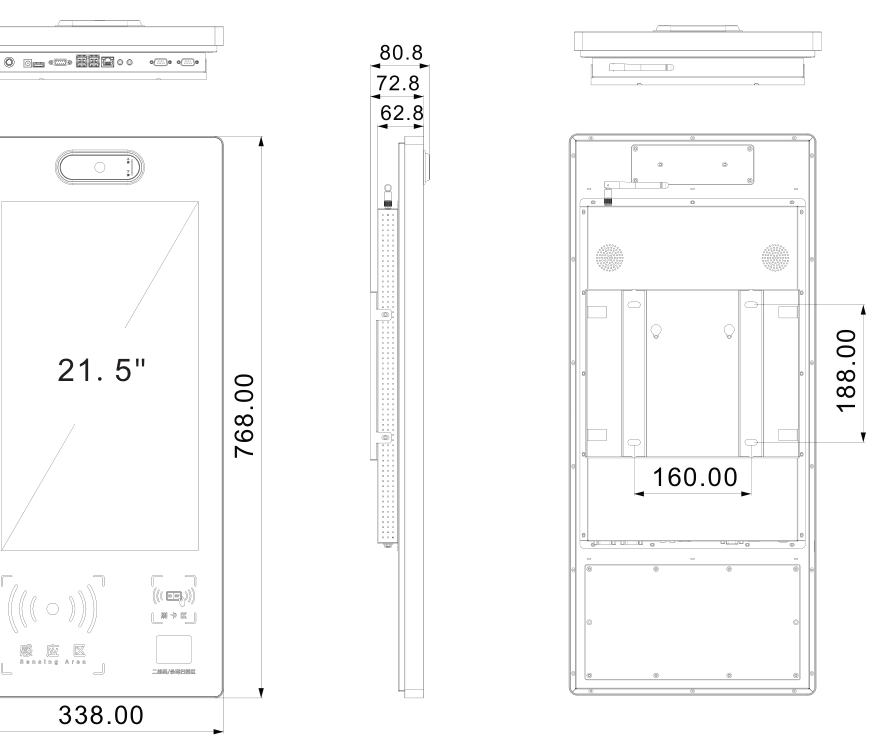

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
