Technical Specifications
Product model

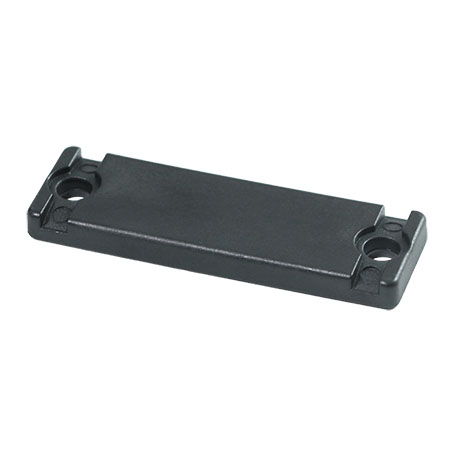

RGW6019
Product category
Industrial & High-Temperature RFID Tag Series
RFID protocol
EPC Class 1 Gen 2, ISO 18000-6C
Frequency
(US) 902-928 MHz,(EU) 865-868 MHz
Chip
NXP UCODE 9
Memory
EPC 96bits, User 0bits, TID 96bits
Write endurance
100,000 cycles
Function
Read / write
Data retention
50 years
Applicable surface
metal surface
Read range
0 to 6 m - (US) 902-928 MHz, metal surface
Warranty
1 years
Dimensions
60.0x19.0 mm,(hole: diameter5 mm x 2)
Thickness
4.8 mm
Material
PPS
Color
Black
Installation
adhesive backing, screws
Weight
13 g
Ingress protection
IP68(90 Ceffective within)
Storage temperature
-30 Cto + 90 C (150 Cwithstanding24 hours；200 Cwithstanding1 hours, non-continuous5 cycles；260 Cwithstanding5 minutes, non-continuous10 cycles)
Operating temperature
-40 C to + 90 C
Certifications
REACH, RoHS, CE
