Technical Specifications
Product model

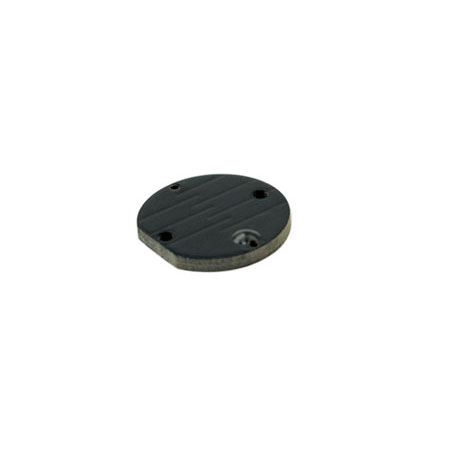

RGW-D20
Product category
Industrial & High-Temperature RFID Tag Series
RFID protocol
EPC Class 1 Gen 2, ISO 18000-6C
Frequency
(US) 902-928 MHz,(EU) 865-868 MHz
Chip
NXP UCODE 8
Memory
EPC 128bits, User 0bits, TID 96bits
Write endurance
100,000 cycles
Function
Read / write
Data retention
50 years
Applicable surface
metal surface
Read range
0 to 2.5 m - (US) 902-928 MHz, metal surface
Warranty
1 years
Dimensions
Zdiameter20 mm,(hole: diameter2 mm x 2)
Thickness
chip position2.8 mm, other positions2.1 mm
Material
industrial high-temperature material
Color
Black
Installation
adhesive backing and screws
Weight
1 g
Ingress protection
IP68
Storage temperature
-55 C to + 200 C (280 Cwithstanding 50 minutes, 250 Cwithstanding150 minutes)
Operating temperature
-40 C to + 150 C (180 C operation for 10 hours)
Certifications
REACH, RoHS, CE
