Technical Specifications
Product model

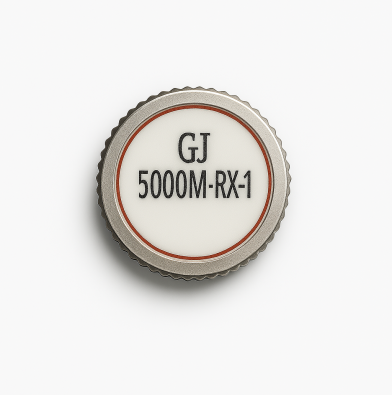

RFID-Industrial-Round-Tag
Product category
Industrial & High-Temperature RFID Tag Series
RFID protocol
EPC Class 1 Gen 2, ISO 18000-6C
Frequency
(US) 902-928 MHz,(EU) 865-868 MHz
Chip
NXP UCODE 8
Memory
EPC 128bits, User 0bits, TID 96bits
Write endurance
100,000 cycles
Function
Read / write
Data retention
50 years
Applicable surface
metal surface
Read range
0 to 0.8 m - (US) 902-928 MHz, metal surface
Warranty
1 years
Dimensions
φ22 mm (±0.2 mm)
Thickness
4 mm
Material
stainless steel, epoxy resin adhesive (optionalPEEKorzirconia)
Color
White + silver
Installation
embedded
Weight
20.0 g
Ingress protection
IP68
Storage temperature
-40 C to + 250 C
Operating temperature
-40 C to + 250 C
