Dining & Food-Safety Device
RCY3801

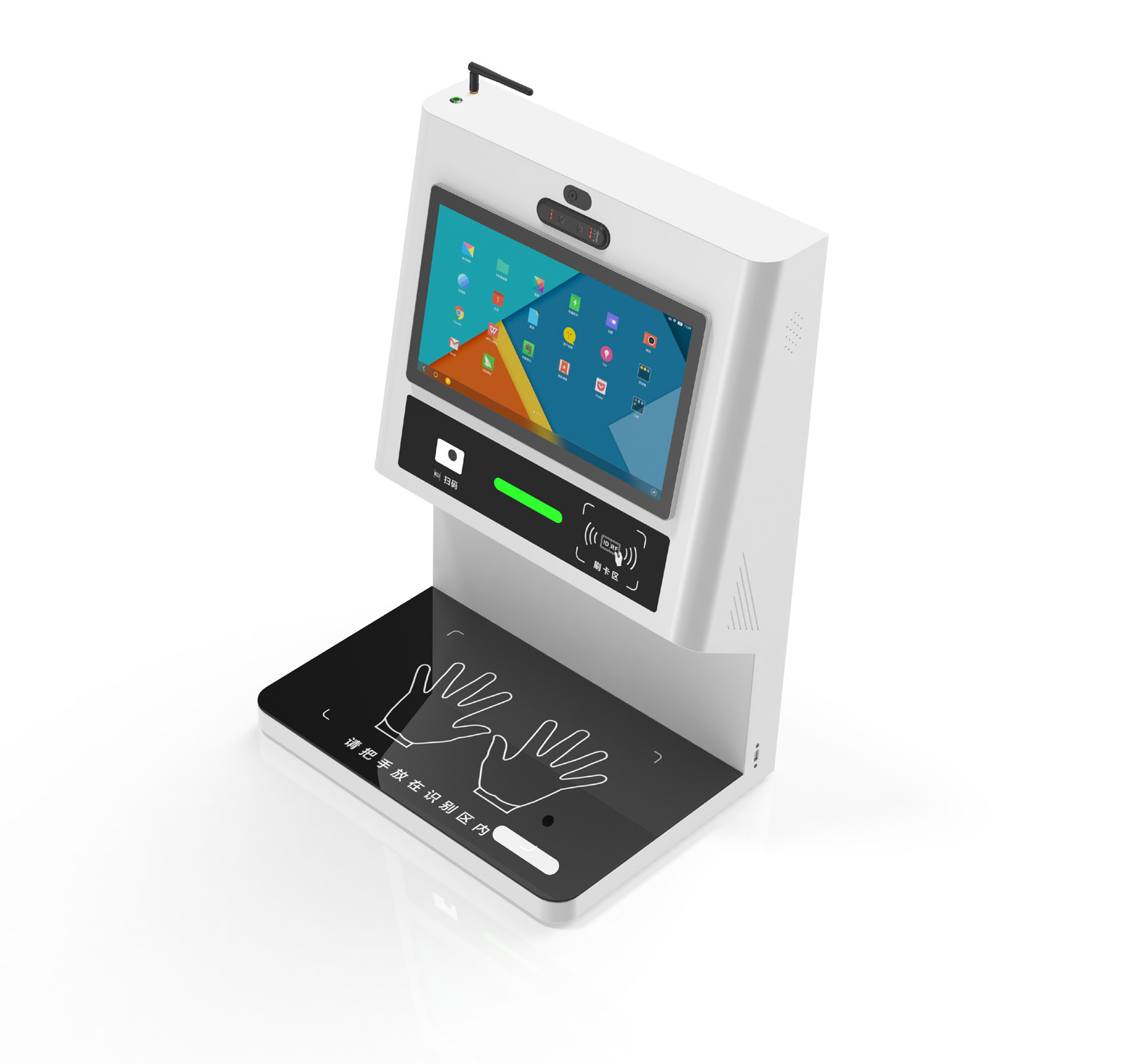

Smart Morning Inspection Terminal
AI-assisted morning inspection for identity, temperature, hand hygiene, and evidence capture.
Key parameters
Product model
RCY3801
Product name
Smart Morning Inspection Terminal
Product size
476 x 371 x 690 mm
Operating system
Android
CPU
RK3568 quad-core 64-bit, 2.0 GHz
Memory / storage
2 GB + 16 GB
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
Abnormal Alarm
Abnormal voice and alarm-light prompts support on-site warning.
Temperature Monitoring
Temperature monitoring displays personal information and abnormal reminders.
Hand-Hygiene Capture
Health and hygiene inspection items can synchronize with the web platform.
Project Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Confirm the surrounding tags, readers, antennas, cabinets, terminals, and physical workflow before quoting.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify the operating workflow: stocktake, transfer, receiving, dispatch, inspection, custody, search, reporting, or exception handling.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
Product & System
Product model
RCY3801
Product name
Smart Morning Inspection Terminal
Product size
476 x 371 x 690 mm
Operating system
Android
CPU
RK3568 quad-core 64-bit, 2.0 GHz
Memory / storage
2 GB + 16 GB
Screen size
15.6 inch
Screen resolution
1920 x 1080
Touch type
10-point touch
Distance module
Detects distance between face and temperature module
Alarm
Voice and light alarm
Inspection, Interface & Environment
Card reader
13.56 MHz, ISO15693 / ISO14443A, approx. 0-15 cm, USB, 5 V DC
Scanner
High-speed 1D / 2D barcode scanning
Camera
2 MP binocular wide-dynamic camera with live face detection
AI camera
5 MP monocular camera for hand-hygiene supervision
Temperature resolution
0.02 C
Temperature range
0 C to 85 C
Temperature accuracy
Error < 0.5 C
Detection distance
0-60 cm
Network
Ethernet, WiFi
External interfaces
USB x1
Lighting
White hand fill light
Scheduled power on/off
Supported
Power input
12 V DC
Material
Sheet metal, tempered glass
Operating temperature
-20 C to 60 C
Storage temperature
-40 C to 85 C
Relative humidity
10%-95% RH, non-condensing
Gross weight
-

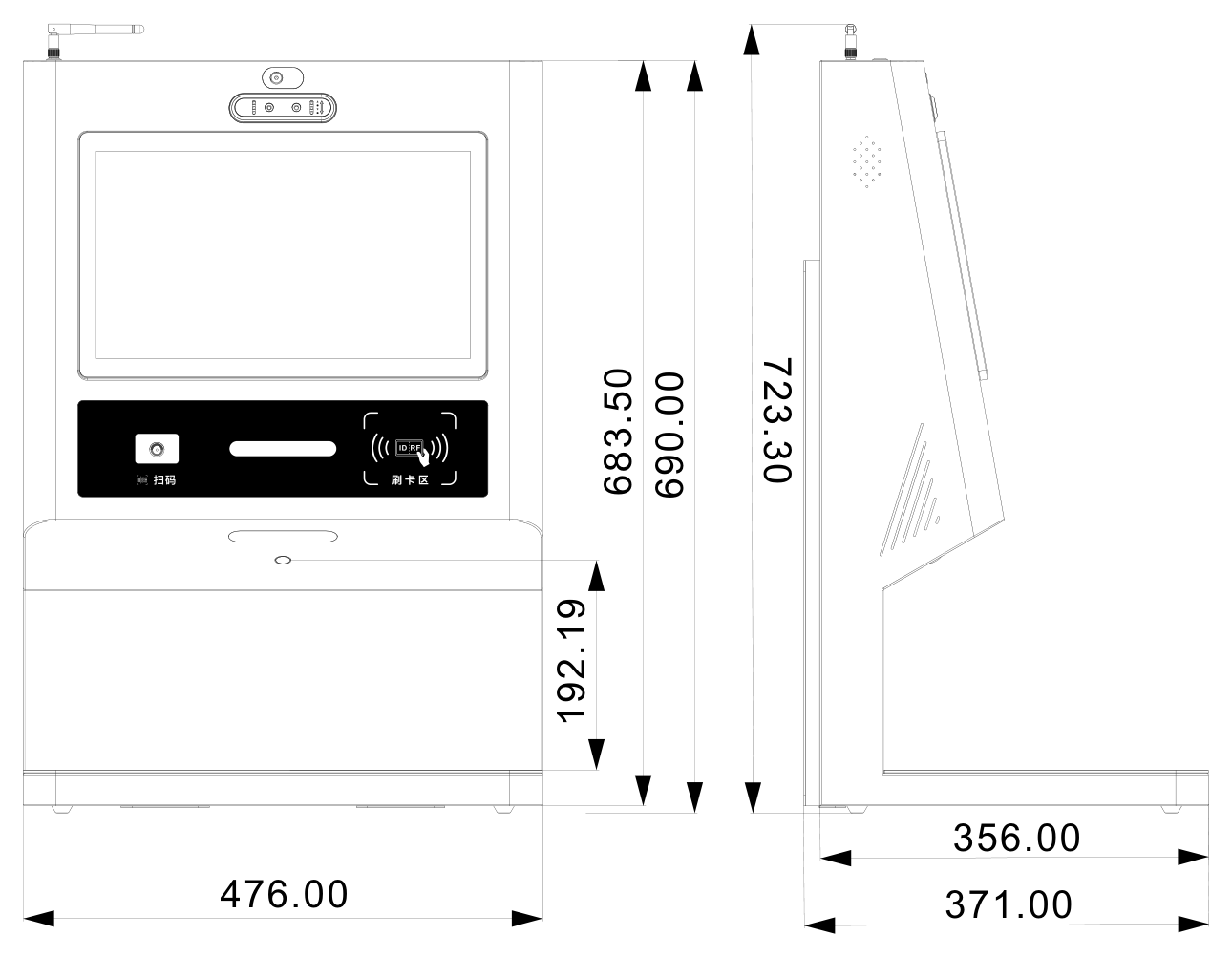

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
