Multi-Mode Binding
Supports face, card, and scan-code tray binding workflows.
Back to RFID Tags & Devices
Dining & Food-Safety Device
RCY2040

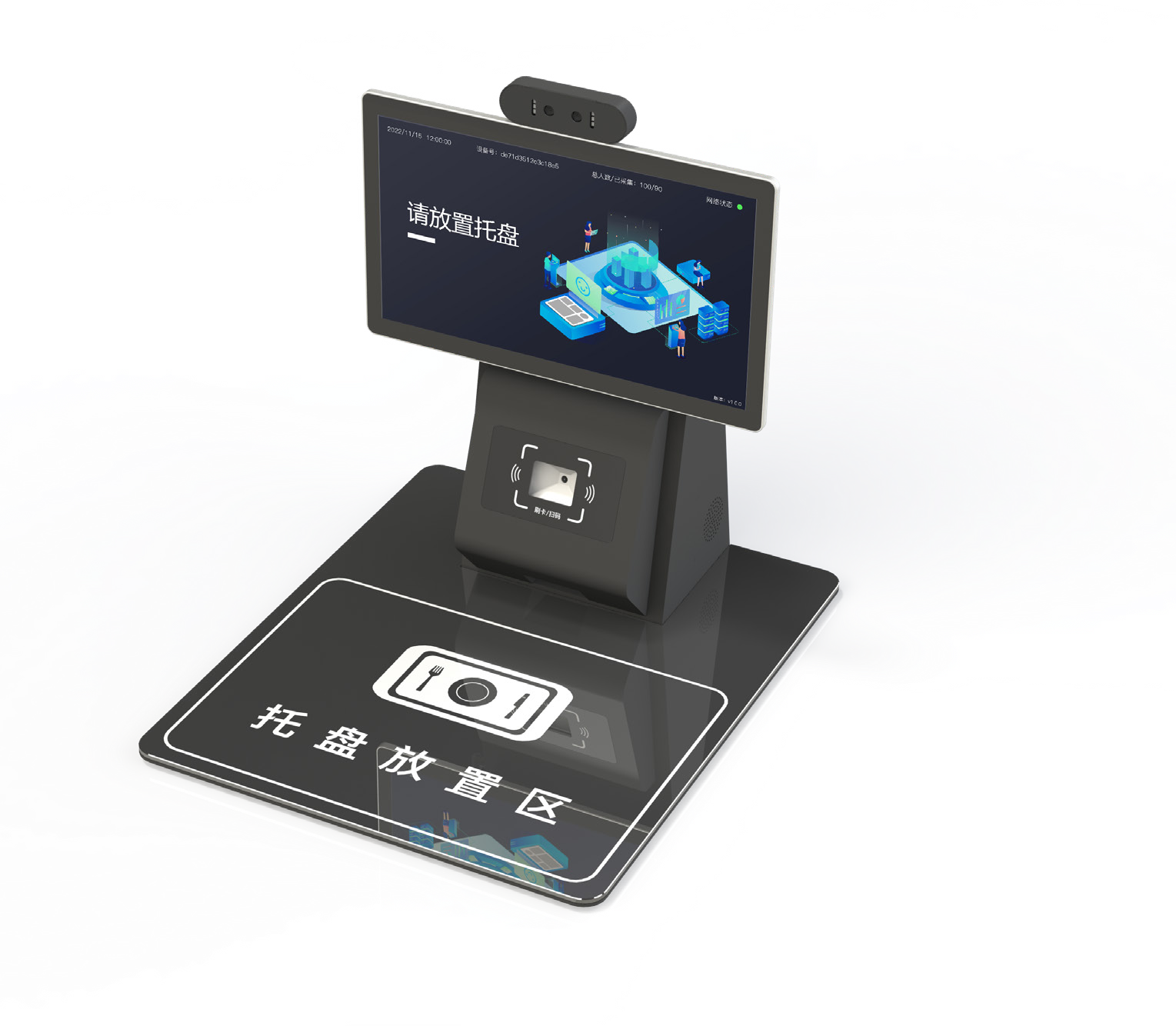

Scan-Code Smart Tray Binding Machine
A scan-code tray binding terminal for linking diners, trays, and smart canteen transactions.
Key parameters
Product model
RCY2040
Product name
Smart Tray Binding Machine
Tray recognition
Automatic sensing, barcode / QR code
Product size
428 x 518 x 505 mm
Recognition time
<= 1 s
Operating system
Android
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
Tray Recognition
Automatic barcode / QR tray sensing helps streamline tray registration.
Face Recognition
Binocular wide-dynamic camera supports fast live face recognition.
15.6-Inch Display
15.6-inch display provides clear desktop self-service interaction.
Project Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Confirm the surrounding tags, readers, antennas, cabinets, terminals, and physical workflow before quoting.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify the operating workflow: stocktake, transfer, receiving, dispatch, inspection, custody, search, reporting, or exception handling.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
Product & Display
Product model
RCY2040
Product name
Smart Tray Binding Machine
Tray recognition
Automatic sensing, barcode / QR code
Product size
428 x 518 x 505 mm
Recognition time
<= 1 s
Operating system
Android
Screen size
15.6 inch
Screen resolution
1920 x 1080
Touch
10-point touch
Screen rotation
Up / down 25 degrees
Material
Aluminum alloy, titanium alloy, tempered glass, acrylic
Tray base
Standard
Card reader
13.56 MHz, ISO15693 / ISO14443A, approx. 0-15 cm, USB, 5 V DC
System, Interface & Environment
CPU
RK3568 quad-core 64-bit, 2.0 GHz
Scanner
Barcode / QR code
Memory / storage
2 GB + 16 GB
Camera
Binocular wide-dynamic camera with live face detection
Scheduled power on/off
Supported
SDK
C / C++ / C# / Java
Power input
12 V DC
Communication interface
RS232
Network
Ethernet, WiFi
External interfaces
Hidden USB x2
Operating temperature
-20 C to 60 C
Storage temperature
-40 C to 85 C
Relative humidity
10%-95% RH, non-condensing
Gross weight
15 kg

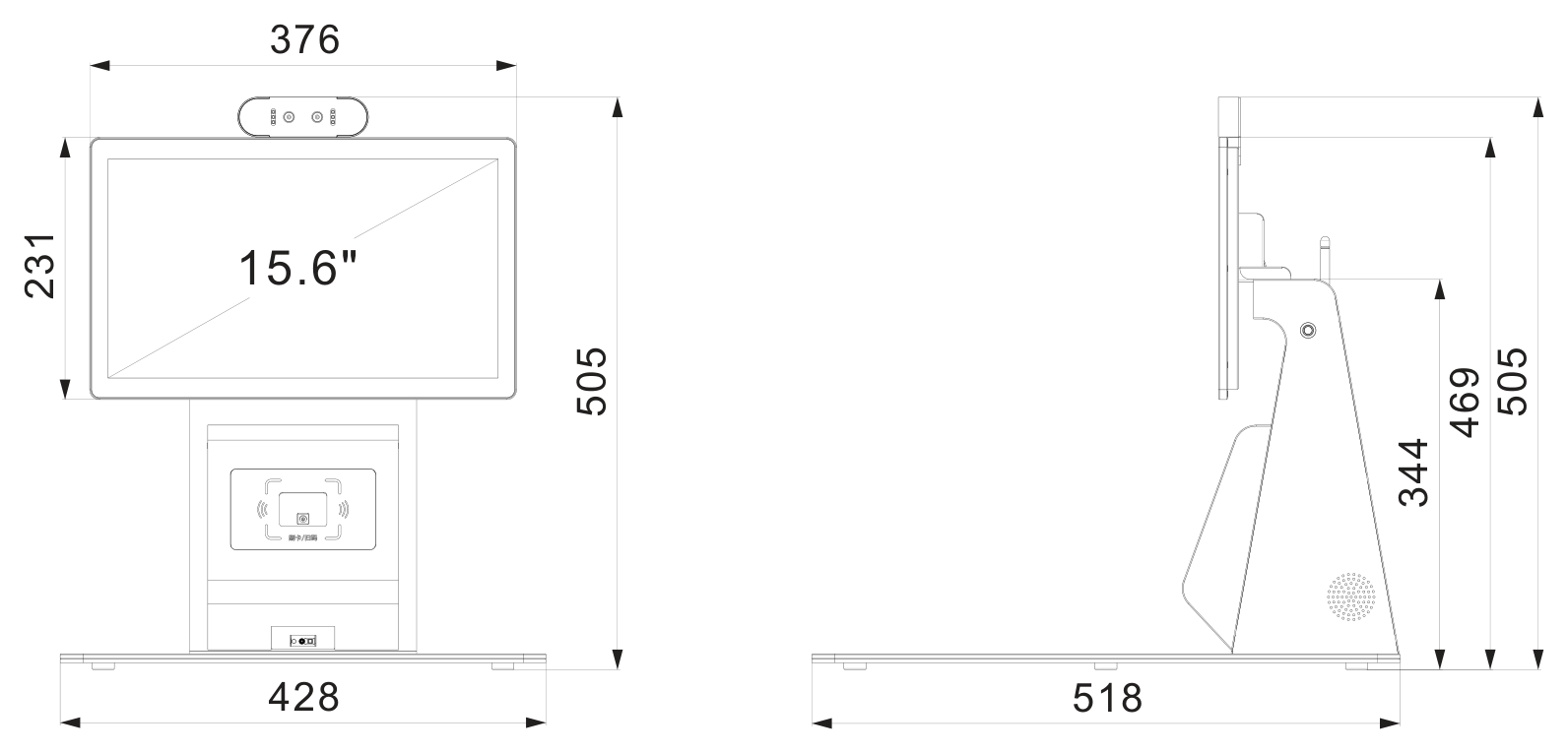

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
