Dining & Food-Safety Device
RCY2020
Dual-Scale Smart Weighing All-in-One (Android)
Dual weighing platforms and Android connectivity for efficient smart canteen settlement.
Key parameters
Product model
RCY2020
Product name
Smart Weighing All-in-One (Dual Scale)
Tray recognition
RFID smart tray
Product size
598 x 457 x 841.3 mm
Recognition time
<= 1 s
Operating system
Android
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
Smart Tray Recognition
RFID smart tray recognition is supported, with barcode / QR scanning available.
Android Platform
Android platform with Ethernet, WiFi, USB, and RS232 connectivity.
10.1-Inch Display
10.1-inch display shows dish, nutrition, amount, and balance information.
Project Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Confirm the surrounding tags, readers, antennas, cabinets, terminals, and physical workflow before quoting.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify the operating workflow: stocktake, transfer, receiving, dispatch, inspection, custody, search, reporting, or exception handling.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
Product & Display
Product model
RCY2020
Product name
Smart Weighing All-in-One (Dual Scale)
Tray recognition
RFID smart tray
Product size
598 x 457 x 841.3 mm
Recognition time
<= 1 s
Operating system
Android
Screen size
10.1 inch
Screen resolution
1280 x 800
Material
Aluminum alloy, titanium alloy, tempered glass, acrylic
Splash / saliva shield
Standard
Screen functions
Dish name, unit price, nutrition, user name, amount, balance
CPU
RK3562 quad-core 64-bit, 2.0 GHz
System, Interface & Environment
Network
Ethernet, WiFi
Memory / storage
2 GB + 32 GB
External interfaces
USB x1, RS232 x1
SDK
C / C++ / C# / Java
LED light
Built in
Power input
12 V DC, 3 A
Alarm light
Seven-color alarm in shield; optional upright alarm
Operating temperature
-20 C to 60 C
Storage temperature
-40 C to 85 C
Relative humidity
10%-95% RH, non-condensing
Sensor grade
>= 3C
Maximum capacity
50 kg
Single scale platform
283 x 368 mm
Tray scanner
Barcode / QR code supported
Sound-light alarm
Supported; optional voice / buzzer
Camera option
Optional 2 MP binocular camera
Gross weight
-

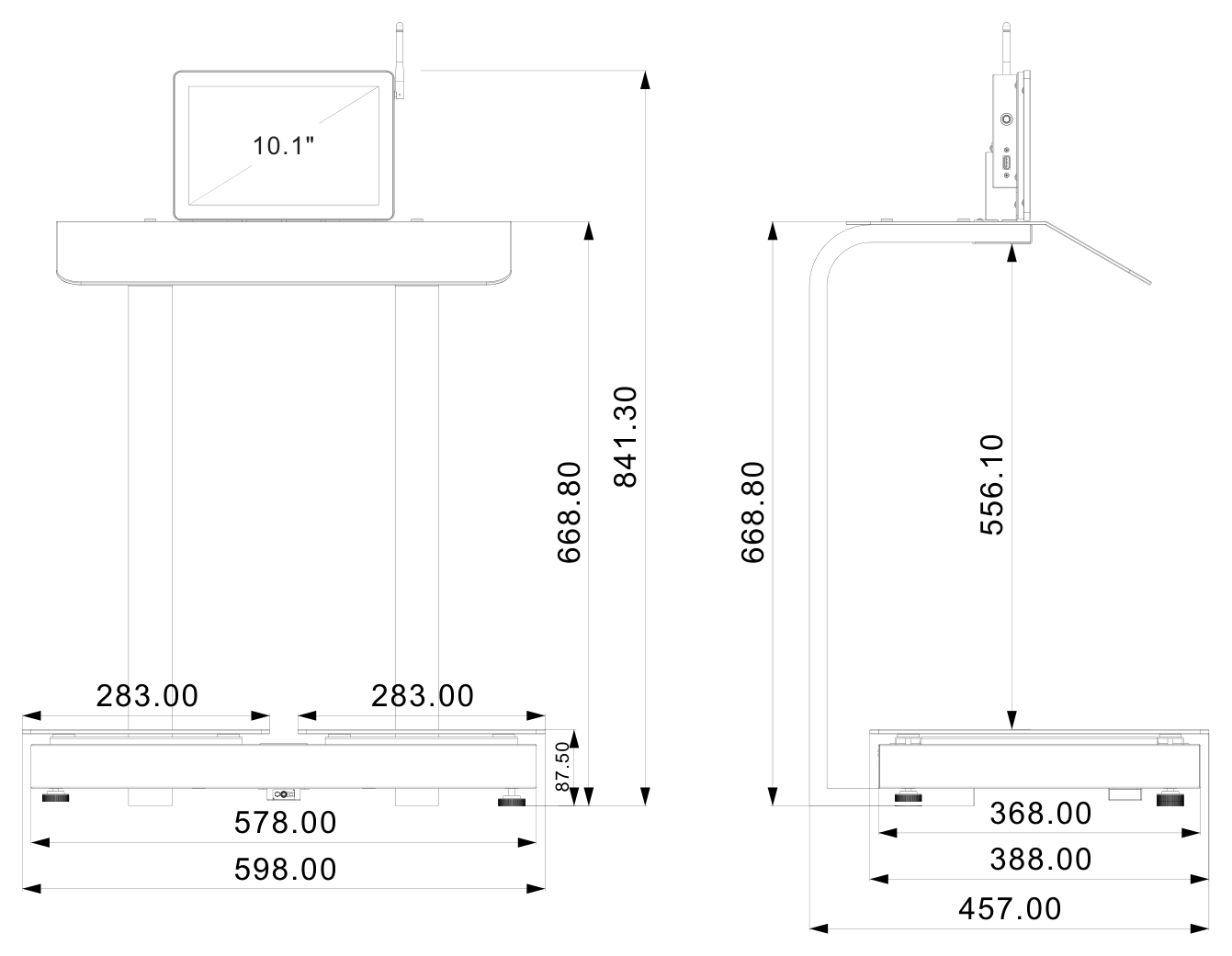

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
