Tray Recognition
Supports barcode or QR tray recognition with optional RFID smart tray compatibility.
Back to RFID Tags & Devices
Dining & Food-Safety Device
RCY1010
Smart Weighing All-in-One (ARM)
A 10.1-inch ARM weighing workstation for smart tray recognition and self-service meal settlement.
Key parameters
Product model
RCY1010
Product name
Smart Weighing All-in-One
Tray recognition
Barcode / QR code
Software
Embedded application software
Recognition time
<= 1 s
MCU
ARM
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
Precision Weighing
Starts weighing from 3-5 g with a >=3C high-precision sensor.
Multi-Touch Screen
Multi-touch screen operation supports smooth self-service interaction.
10.1-Inch Display
10.1-inch display provides clear dish, nutrition, amount, and balance information.
Project Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Confirm the surrounding tags, readers, antennas, cabinets, terminals, and physical workflow before quoting.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify the operating workflow: stocktake, transfer, receiving, dispatch, inspection, custody, search, reporting, or exception handling.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
Product & Display
Product model
RCY1010
Product name
Smart Weighing All-in-One
Tray recognition
Barcode / QR code
Software
Embedded application software
Recognition time
<= 1 s
MCU
ARM
Touch screen
Multi-touch
Screen size
10.1 inch
Screen resolution
1024 x 600
Material
Titanium alloy, tempered glass, acrylic
Splash / saliva shield
Standard
Screen functions
Custom logo, dish name, unit price, nutrition, user name, amount, balance
Interface, Power & Environment
Communication interface
RS232
Cascade interface
2 ports
SDK
C / C++ / C# / Java
LED light
Built in
Power input
12 V DC, 3 A
Alarm light
Seven-color alarm in shield; optional upright alarm
Operating temperature
-20 C to 60 C
Storage temperature
-40 C to 85 C
Relative humidity
10%-95% RH, non-condensing
Sensor grade
>= 3C
Maximum capacity
50 kg
Cascaded scale support
Supported
RFID tray option
Optional RFID smart tray
Sound-light alarm
Supported; optional voice / buzzer
Power configuration
One adapter per 5 devices
Product size
558 x 437 x 838 mm
Gross weight
-

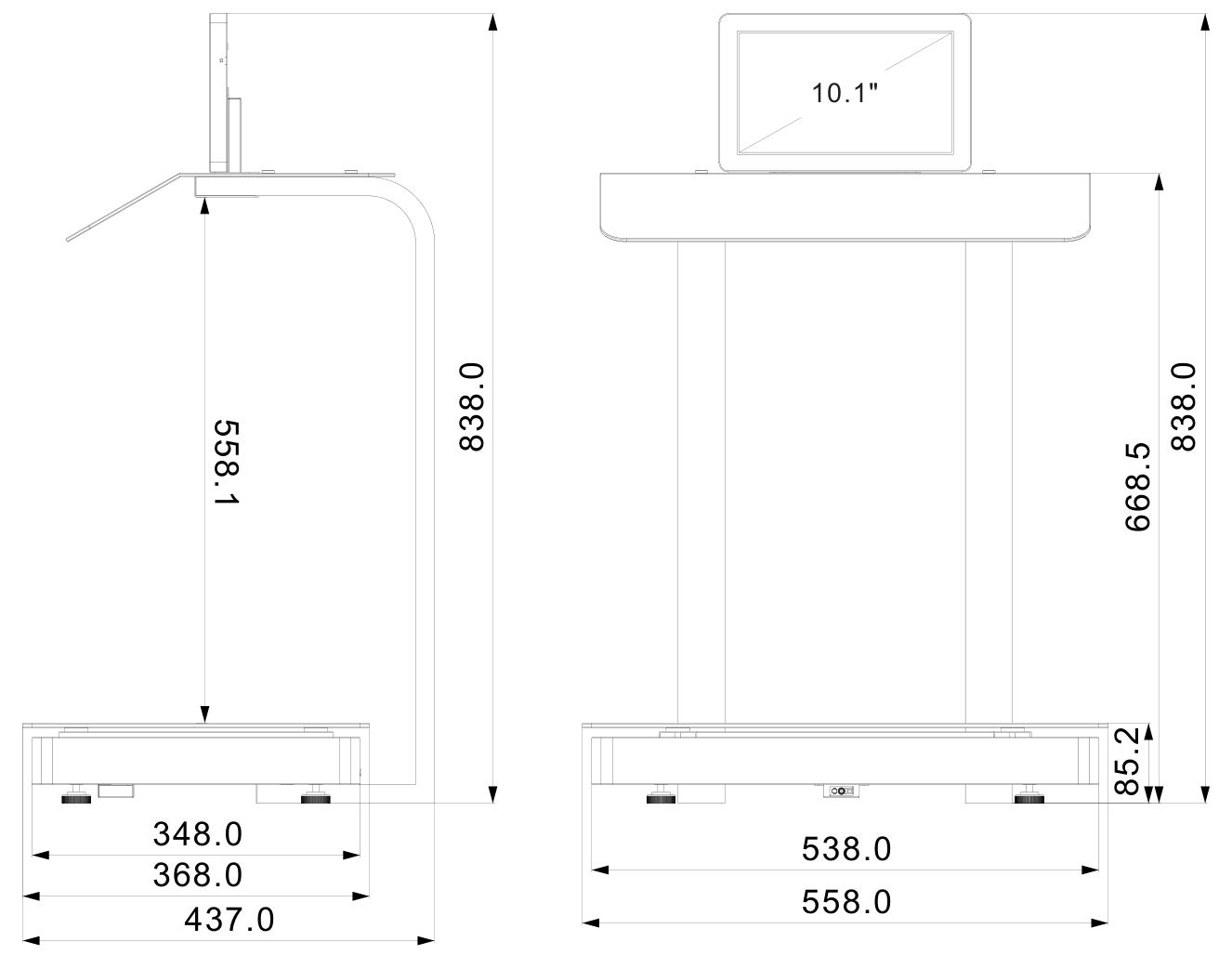

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
