Dining & Food-Safety Device

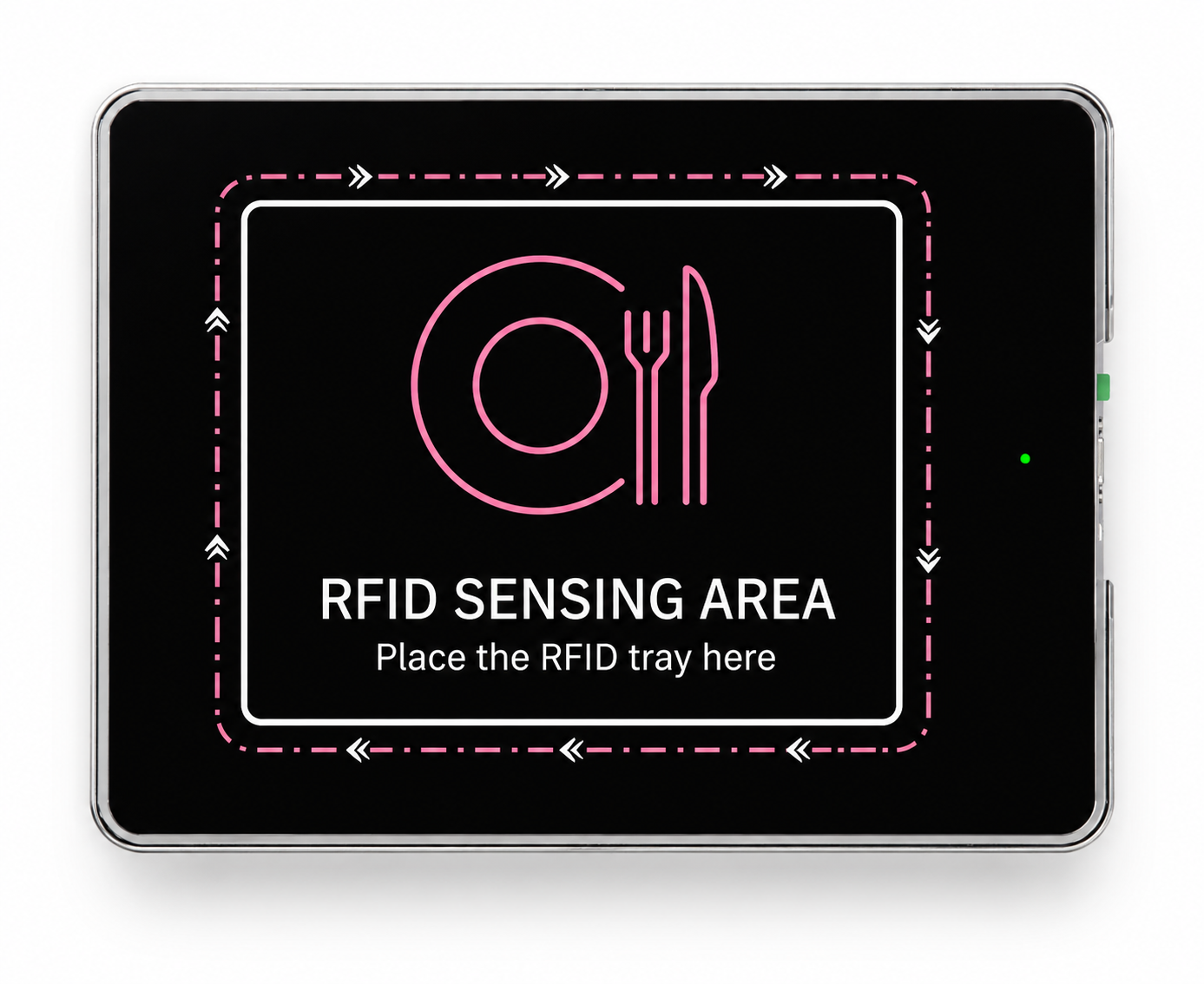

RCY1006W
RFID Smart Tray All-in-One
A compact HF RFID tray reader for fast self-service cafeteria settlement.
Key parameters
Product model
RCY1006W
Product name
RFID Smart Tray All-in-One
Working frequency
13.56 MHz
Supported standards
ISO15693 and ISO14443A
Reading speed
<= 20 cards per second
Reading distance
>= 15 cm for ISO15693; >= 8 cm for ISO14443A
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
Anti-Metal Design
Anti-metal structure supports stable tray recognition in desktop use.
Longer Tray Reading
Reads ISO15693 trays at 15 cm or more and ISO14443A cards at 8 cm or more.
Compact Countertop Body
Compact tempered-glass and sheet-metal housing fits self-service counters.
Project Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Confirm the surrounding tags, readers, antennas, cabinets, terminals, and physical workflow before quoting.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify the operating workflow: stocktake, transfer, receiving, dispatch, inspection, custody, search, reporting, or exception handling.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
RFID Parameters
Product model
RCY1006W
Product name
RFID Smart Tray All-in-One
Working frequency
13.56 MHz
Supported standards
ISO15693 and ISO14443A
Reading speed
<= 20 cards per second
Reading distance
>= 15 cm for ISO15693; >= 8 cm for ISO14443A
Supported cards
I Code ILT, I Code SLI, I Code SLIX, I Code SLIX2, Mifare S50/70
Anti-collision processing
Supported
Multi-card reading
Supported
Communication interface
RS232 or USB
Interface, Power & Physical
Prompt sound
Buzzer, when enabled
Material
Sheet metal, tempered glass, transparent acrylic
Maximum power consumption
0.6 W
Power input
5 V via USB
Cable
DB9 serial cable or USB cable
Waterproof
Not supported
Operating temperature
-20 C to 60 C
Storage temperature
-40 C to 85 C
Relative humidity
10%-95% RH, non-condensing
Physical size
358 x 268 x 29 mm
Gross weight
-

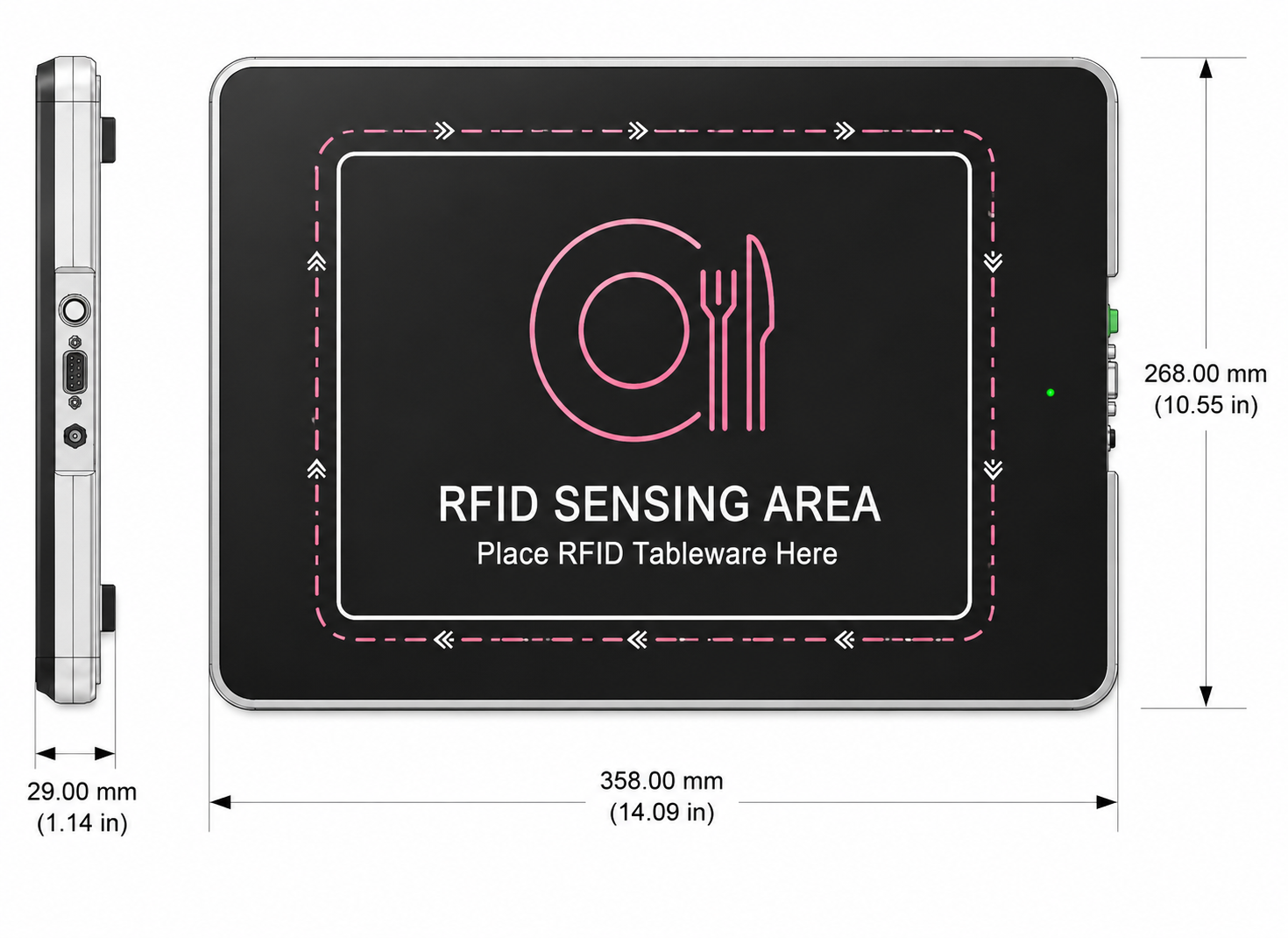

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
