Technical Specifications
Product model

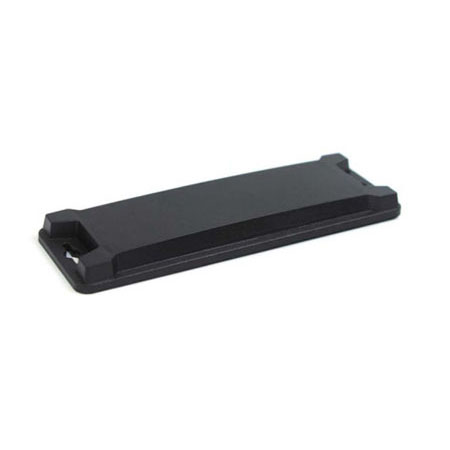

RABS13042
Product category
ABS Anti-Metal RFID Tag Series
RFID protocol
EPC Class 1 Gen 2, ISO 18000-6C
Frequency
(US) 902-928 MHz,(EU) 865-868 MHz
Chip
Alien Higgs-9
Memory
EPC 96bits (expandable to 480bits), User 512bits, TID64bits
Write endurance
100,000 cycles
Function
Read / write
Data retention
50 years
Applicable surface
metal surface
Read range
0 to 22.0 m - (US) 902-928 MHz, metal surface
Warranty
1 years
Dimensions
130x42 mm, (hole: 2 pcs)
Thickness
10.5 mm
Material
ABS + PC
Color
Black (red, blue, green, White)
Installation
adhesive backing or screws
Weight
38.0 g
Ingress protection
IP68
Storage temperature
-30 C to + 100 C
Operating temperature
-20 C to + 80 C
Certifications
REACH, RoHS, CE
