Technical Specifications

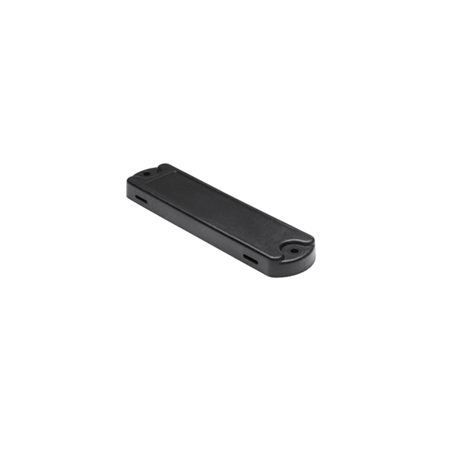

Product model
RABS12030
Product category
ABS Anti-Metal RFID Tag Series
RFID protocol
EPC Class 1 Gen 2, ISO 18000-6C
Frequency
(US) 902-928 MHz,(EU) 865-868 MHz
Chip
NXP UCODE 8
Memory
EPC 128bits, User 0bits, TID 96bits
Write endurance
100,000 cycles
Function
Read / write
Data retention
50 years
Applicable surface
metal surface
Read range
0 to 12.0 m - (US) 902-928 MHz, metal surface
Warranty
1 years
Dimensions
120x30x10 mm, front hole: diameter4 mm x 2, side hole: 10x2 mm x 2
Thickness
10 mm
Material
ABSorPA66
Color
Black
Installation
rivets, screws, adhesive backing, cable ties
Weight
46.0 g
Ingress protection
IP65
Storage temperature
-40 C to + 120 C
Operating temperature
-20 C to + 120 C
Certifications
REACH, RoHS, CE
